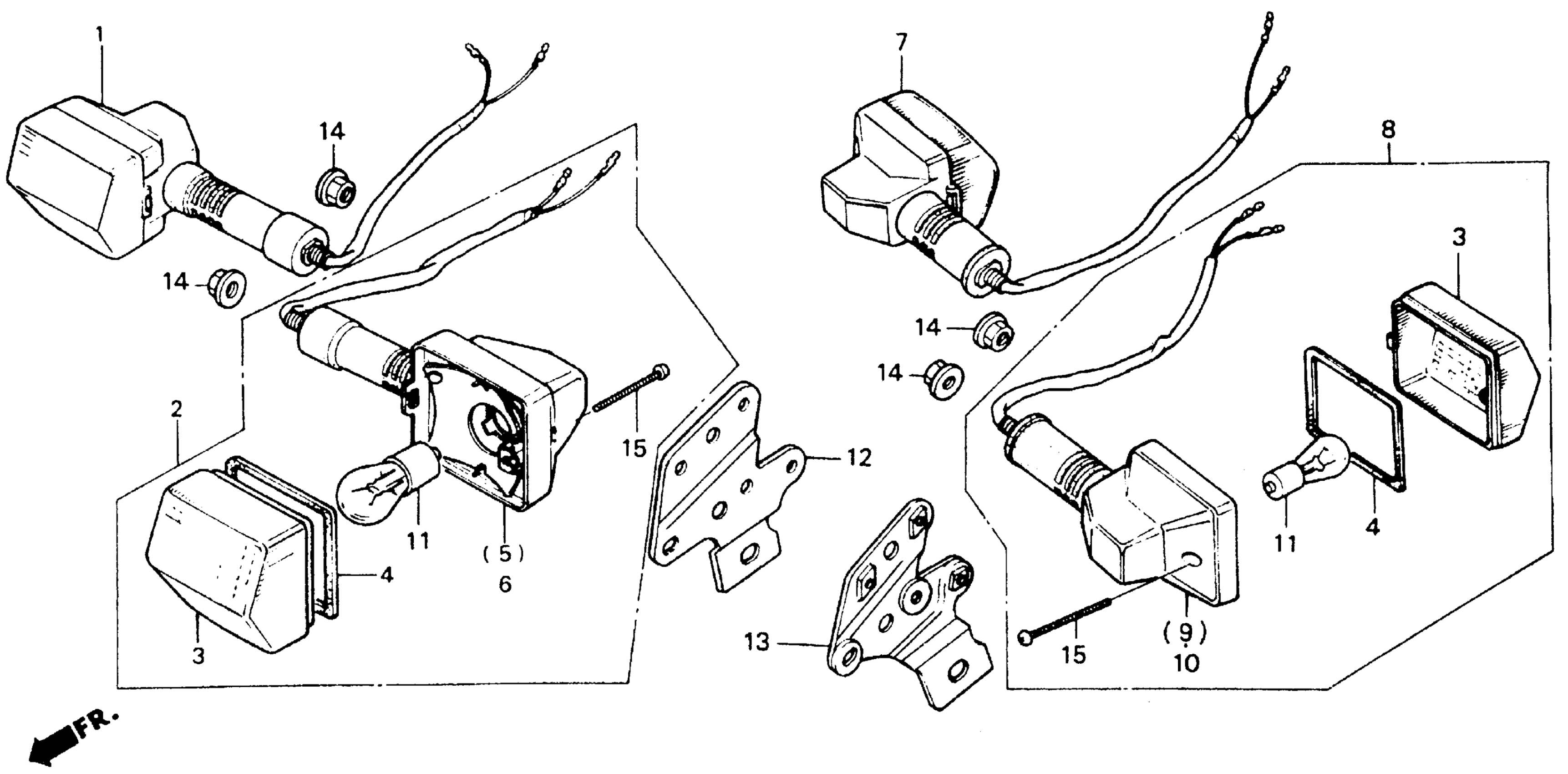

Honda CB125TTA (90) MOTORCYCLE, JPN, VIN# JH2JC063-LK000001 TURN SIGNAL Diagram

#

Description
Price

1

TURN SIGNAL ASSY., R. FR. (12V 23W)

33300-KC1-920

Unavailable

2

TURN SIGNAL ASSY., L. FR. (12V 23W)

33350-KC1-920

Unavailable

3

LENS, TURN SIGNAL (COO) This part replaces 33402-MG2-003.

33402-MGW-305

$10.52

4

GASKET, LENS

33407-MG2-003

$5.94

5

BASE, R. FR. TURN SIGNAL

33420-KC1-920

Unavailable

6

BASE, L. FR. TURN SIGNAL

33470-KC1-920

Unavailable

7

TURN SIGNAL SET, R. This part replaces 33500-KC1-920.

33500-KC1-407

Unavailable

8

TURN SIGNAL SET, R. This part replaces 33550-KC1-920.

33500-KC1-407

Unavailable

9

BASE, R. RR. TURN SIGNAL

33620-KC1-920

Unavailable

10

BASE, L. RR. TURN SIGNAL

33670-KC1-920

Unavailable

11

BULB, TURN SIGNAL (12V 23W) (STANLEY)

34905-268-671

$2.79

12

BRACKET, R. RR. TURN SIGNAL STAY

50230-KC1-700

Unavailable

13

BRACKET, L. RR. TURN SIGNAL STAY

50235-KC1-700

Unavailable

14

NUT, FLANGE (10MM)

90308-KE1-000

$5.52

15

SCREW, TAPPING (3X25)

91901-MG2-003

$2.70
