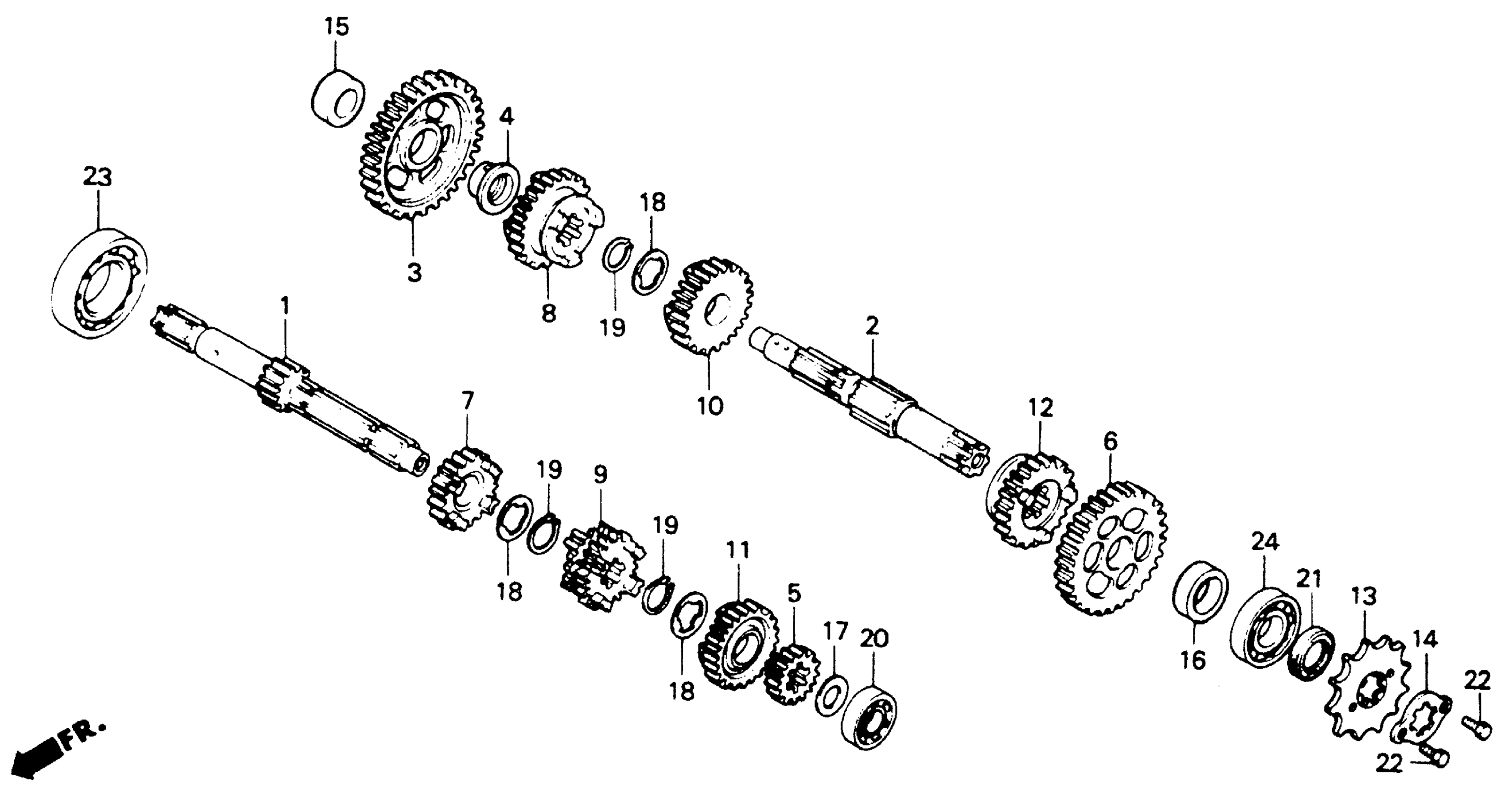

Honda CB125TTA (90) MOTORCYCLE, JPN, VIN# JH2JC063-LK000001 TRANSMISSION Diagram

#

Description
Price

1

MAINSHAFT (13T)

23210-KC1-730

Unavailable

2

COUNTERSHAFT, TRANSMISSION

23221-KC1-000

Unavailable

3

GEAR, COUNTERSHAFT LOW (36T)

23426-399-000

Unavailable

4

BUSH (16.5MM)

23427-399-000

Unavailable

5

GEAR, MAINSHAFT SECOND (17T)

23441-383-000

Unavailable

6

GEAR, COUNTERSHAFT SECOND (32T)

23451-399-000

Unavailable

7

GEAR, MAINSHAFT THIRD (20T)

23461-399-000

Unavailable

8

GEAR, COUNTERSHAFT THIRD (29T)

23472-399-000

Unavailable

9

GEAR, MAINSHAFT FOURTH (23T)

23481-399-000

Unavailable

10

GEAR, COUNTERSHAFT FOURTH (28T)

23491-399-020

Unavailable

11

GEAR, MAINSHAFT FIFTH (24T)

23501-KC1-000

Unavailable

12

GEAR, COUNTERSHAFT FIFTH (26T)

23511-KC1-000

Unavailable

13

SPROCKET, DRIVE (14T)

23801-KF9-505

$38.11

13

SPROCKET, DRIVE (14T) This part replaces 23801-KF9-900.

23801-KF9-505

$38.11

13

SPROCKET, DRIVE (14T) This part replaces 23801-107-760.

23801-KF9-505

$38.11

14

PLATE A2, FIXING

23811-KR3-600

$4.57

15

COLLAR (16.5MM)

23911-KC1-000

Unavailable

16

COLLAR (20MM)

23912-KC1-000

Unavailable

17

WASHER, THRUST (15MM)

90451-107-000

$1.49

18

WASHER A, SPLINE (20MM)

90455-107-000

$1.92

19

SET-RING (20MM)

90605-200-000

$2.92

20

BEARING, RADIAL BALL (6202) (NTN)

91005-KR3-003

$25.97

21

OIL SEAL (20X34X7) (ARAI)

91201-030-033

$5.54

22

BOLT, HEX. (6X10)

92101-06010-0A

$1.49

23

BEARING, RADIAL BALL (6304)

96100-63040-00

$14.40

24

BEARING, RADIAL BALL (6204U)

96140-62040-00

$24.63
