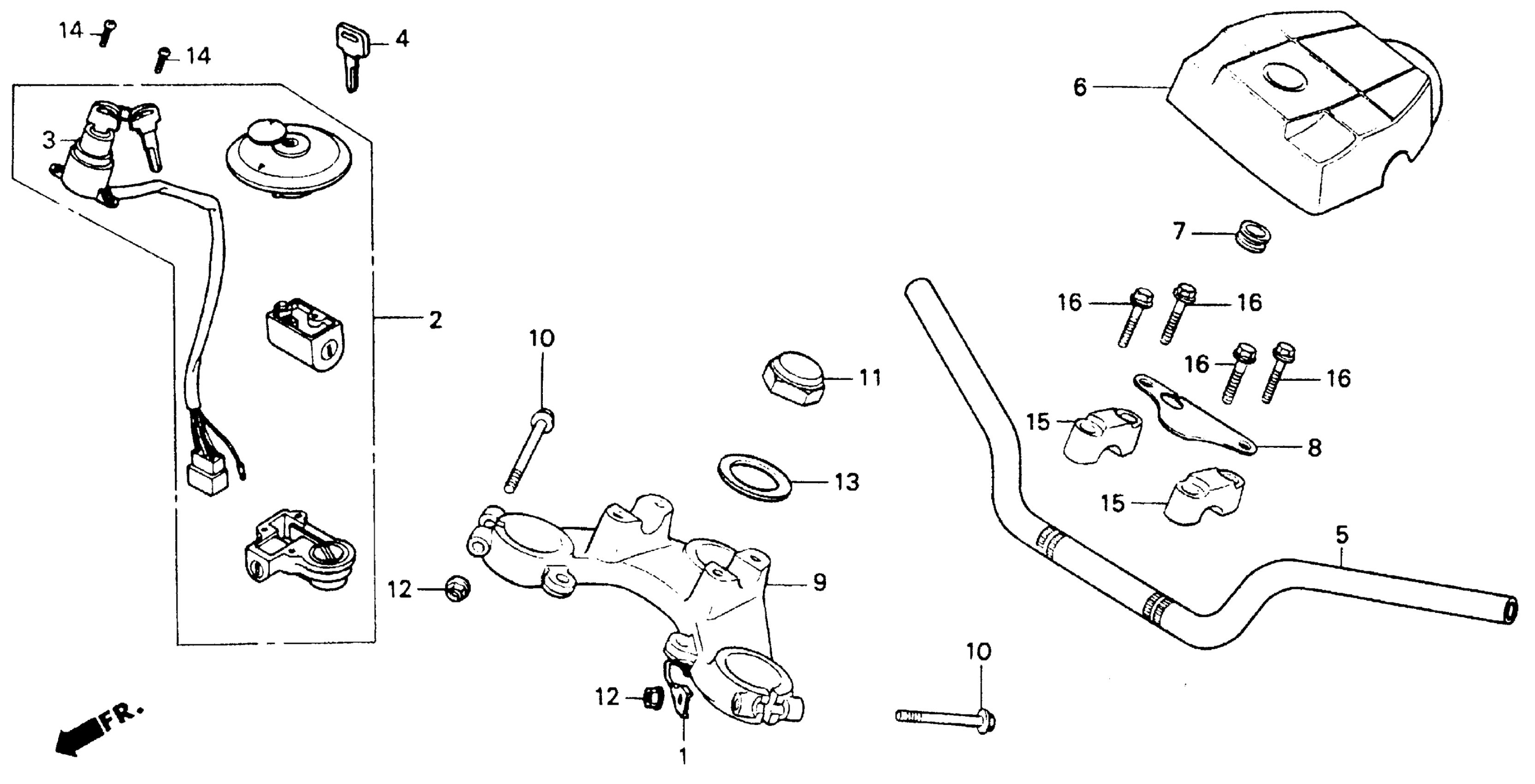

Honda CB125TTA (90) MOTORCYCLE, JPN, VIN# JH2JC063-LK000001 TOP BRIDGE Diagram

#

Description
Price

1

GUIDE, CABLE

17908-MM5-000

Unavailable

2

LOCK SET | Use up to Frame SN LK001269 This part replaces 35010-KC1-920.

35010-KC1-921

Unavailable

2

LOCK SET

35010-KC1-921

Unavailable

3

SWITCH ASSY., COMBINATION (NOT AVAILABLE) | Use up to Frame SN LK001269 This part replaces 35100-KC1-701.

35100-KC1-702

Unavailable

3

SWITCH ASSY., COMBINATION (NOT AVAILABLE) | Use from Frame SN LK001270

35100-KC1-702

Unavailable

4

KEY, BLANK (TYPE1) | (Optional). This part replaces 35121-GZ5-003.

35121-GE2-770

$13.36

4

KEY, BLANK (TYPE2) | (Optional). This part replaces 35122-GZ5-003.

35122-GE2-770

$12.60

5

HANDLEBAR (NOT AVAILABLE)

53100-KC1-920

Unavailable

6

COVER, IGNITION This part replaces 53132-KC1-000.

53132-KC1-670

Unavailable

6

COVER, IGNITION

53132-KC1-670

Unavailable

7

GROMMET, IGNITION COVER

53133-KB4-000

$2.26

8

STAY, IGNITION COVER

53134-KC1-000

Unavailable

9

BRIDGE, FORK TOP

53231-402-700

Unavailable

10

BOLT, FLANGE (7X54)

90155-369-000

$6.01

11

NUT, STEERING STEM

90304-GM2-000

Unavailable

12

NUT, FLANGE (7MM)

90355-369-000

$4.94

13

WASHER, STEERING STEM

90503-166-010

Unavailable

14

SCREW, PAN (6X12)

93500-06012-0G

$1.49

15

HOLDER B2, HANDLEBAR (UPPER)

95014-22200

$12.13

16

BOLT, FLANGE (8X35)

95701-08035-00

$2.30
