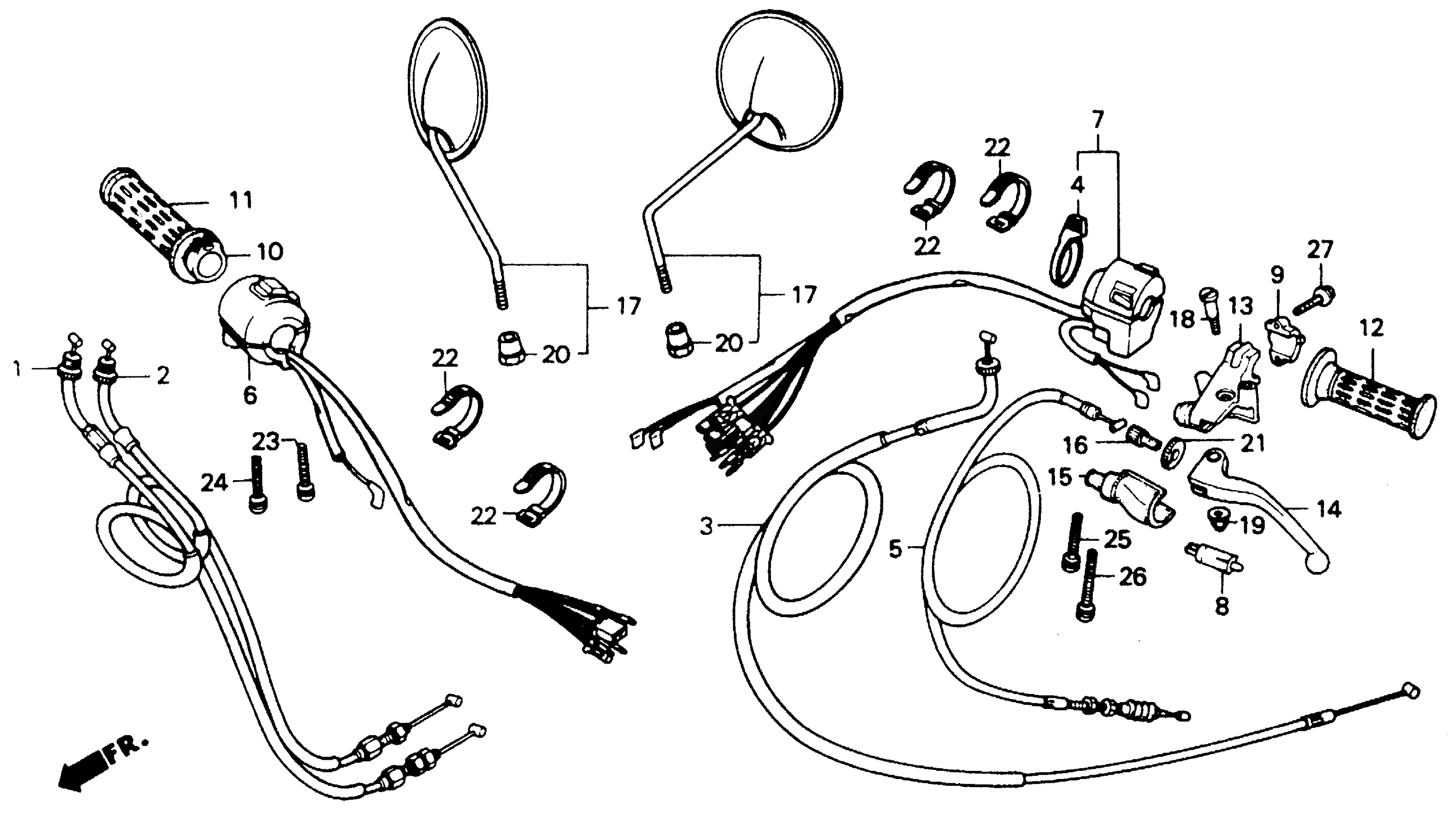

Honda CB125TTA (90) MOTORCYCLE, JPN, VIN# JH2JC063-LK000001 SWITCH Diagram

#

Description
Price

1

CABLE A, THROTTLE

17910-KC1-850

Unavailable

2

CABLE B, THROTTLE

17920-KC1-850

Unavailable

3

CABLE, CHOKE (NOT AVAILABLE)

17950-KC1-920

Unavailable

4

LEVER, CHOKE

17962-MN8-003

$18.07

5

CABLE, CLUTCH

22870-GM2-000

Unavailable

5

CABLE, CLUTCH This part replaces 22870-KC1-830.

22870-GM2-000

Unavailable

6

SWITCH ASSY., STARTER STOP (NOT AVAILABLE)

35130-KC1-920

Unavailable

7

SWITCH ASSY., TURN SIGNAL (NOT AVAILABLE)

35200-KC1-920

Unavailable

8

SWITCH, FR. LEVER (TOYO DENSO)

35330-413-003

$19.67

9

HOLDER, MASTER CYLINDER

45517-MA5-671

$26.32

10

PIPE, THROTTLE GRIP

53141-422-000

$19.52

11

GRIP, R. HANDLE

53165-397-940

$14.79

12

GRIP, L. HANDLE

53166-397-940

$11.76

13

BRACKET, HANDLEBAR

53172-MJ6-000

Unavailable

14

LEVER, L. HANDLE

53178-KV0-000

$16.46

14

LEVER, L. HANDLE This part replaces 53178-KV0-305.

53178-KV0-000

$16.46

15

BOOT, HANDLE LEVER

53180-425-010

Unavailable

16

BOLT, WIRE ADJUSTING

53192-268-000

$6.08

17

MIRROR

88110-KB7-010

Unavailable

18

BOLT, L. HANDLEBAR LEVER PIVOT

90113-438-000

$7.06

19

NUT, CAP (6MM)

90201-415-000

$1.96

20

NUT, LOCK

90314-329-000

$3.86

21

NUT, FIXING

90321-MA6-750

$9.38

22

BAND, WIRE

90650-KW3-000

$4.16

23

SCREW-WASHER (5X20)

93892-05020-07

$0.78

24

SCREW-WASHER (5X25)

93892-05025-07

$0.99

25

SCREW-WASHER (5X40)

93892-05040-07

Unavailable

26

SCREW-WASHER (5X45)

93892-05045-07

$1.17

27

BOLT, FLANGE (6X25)

96001-06025-07

Unavailable
