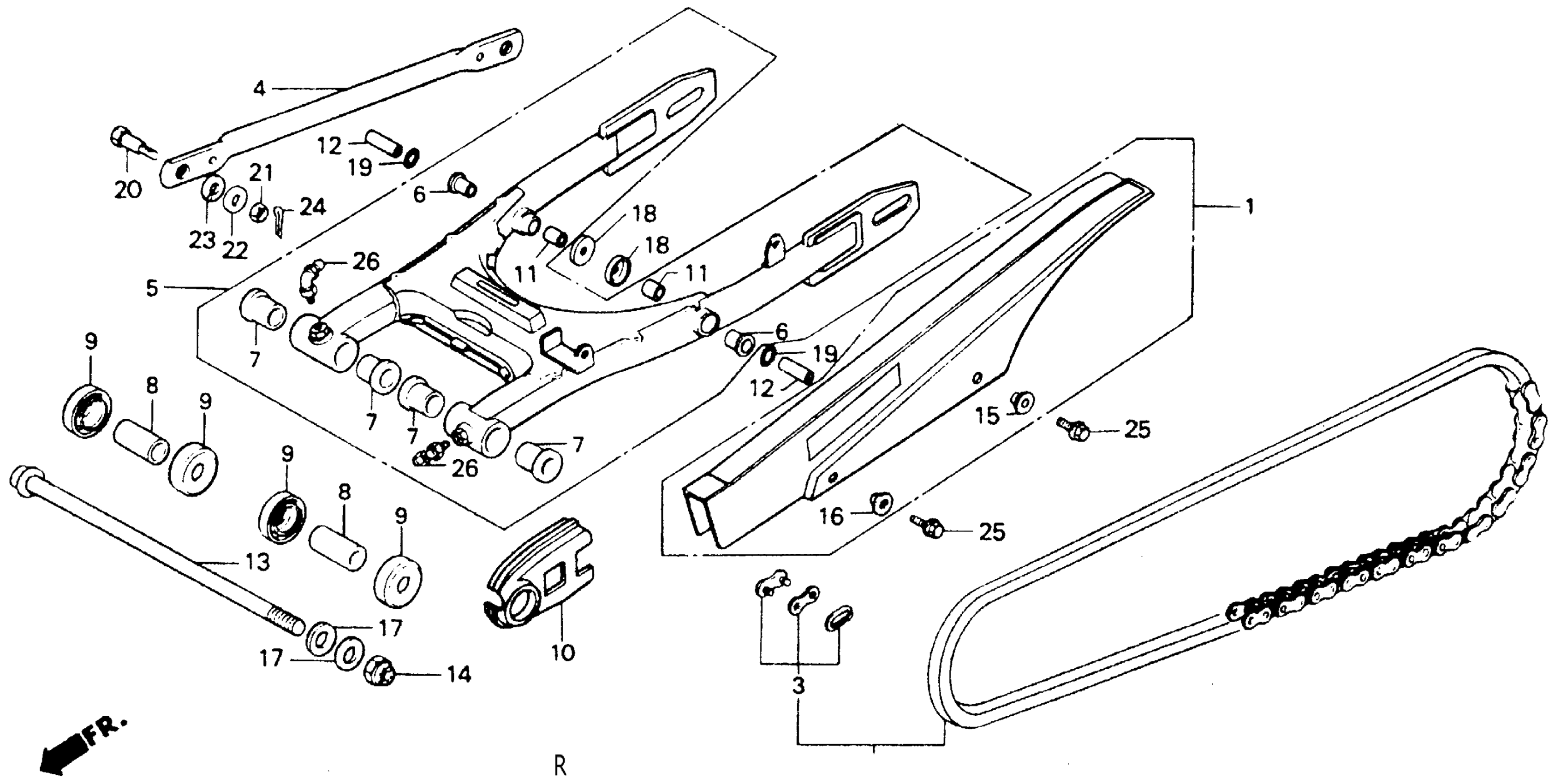

Honda CB125TTA (90) MOTORCYCLE, JPN, VIN# JH2JC063-LK000001 SWINGARM Diagram

#

Description
Price

1

CASE, DRIVE CHAIN

40510-KC1-000

$74.12

2

CHAIN, DRIVE

405W3-KE1-505

Unavailable

2

CHAIN, DRIVE This part replaces 40530-KC1-003.

405W3-KE1-505

Unavailable

2

CHAIN, DRIVE This part replaces 40530-KC1-004.

405W3-KE1-505

Unavailable

3

MASTER LINK (RK EXCEL)

40531-KFC-902

$4.83

3

MASTER LINK (DAIDO)

40531-355-013

$3.86

3

MASTER LINK (TAKASAGO)

40531-427-004

$4.83

3

MASTER LINK (TAKASAGO)

40531-437-602

Unavailable

4

ARM, RR. BRAKE STOPPER

43431-KC1-730

Unavailable

5

SWINGARM ASSY., RR.

52100-KC1-000

Unavailable

6

BUSH, CUSHION ARM PIVOT

52108-KC1-003

Unavailable

7

BUSH, SWINGARM

52109-KC1-003

$17.64

8

COLLAR, R. SWINGARM This part replaces 52141-356-000.

52141-356-010

$79.12

8

COLLAR, R. SWINGARM

52141-356-010

$79.12

9

DUST SEAL (31X40.5X7.1) (NOK) This part replaces 52144-GC4-003.

52144-GC4-005

$10.16

9

DUST SEAL (31X40.5X7.1) (NOK)

52144-GC4-005

$10.16

10

SLIDER, DRIVE CHAIN

52155-KC1-000

Unavailable

11

BUSH, CUSHION ARM

52462-KC1-003

Unavailable

12

COLLAR, CUSHION ARM PIVOT This part replaces 52463-MA2-000.

52463-MA2-010

Unavailable

12

COLLAR, CUSHION ARM PIVOT

52463-MA2-010

Unavailable

13

BOLT, SWINGARM PIVOT

90121-KB4-000

$39.01

14

NUT, AXLE (14MM) This part replaces 90305-197-003.

90305-197-013

$5.71

14

NUT, U (14MM)

90305-197-013

$5.71

15

WASHER (6X20)

90512-KF9-900

$2.85

15

WASHER (6X20) (L. SIDE ONLY) This part replaces 90512-422-000.

90512-KF9-900

$2.85

16

WASHER (6X9)

90513-405-000

$2.00

17

WASHER, SWINGARM PIVOT BOLT

90526-268-000

$2.88

18

SEAL, RR. CUSHION CONNECTING ROD PIVOT (NOK) This part replaces 91262-MA0-013.

91262-MA0-015

$9.95

18

SEAL, RR. CUSHION CONNECTING ROD PIVOT (NOK)

91262-MA0-015

$9.95

19

O-RING (20.8X2.4) This part replaces 91306-921-000.

91351-MG7-003

$2.48

19

O-RING (20.8X2.4) This part replaces 91308-ML7-000.

91351-MG7-003

$2.48

19

O-RING (20.8X2.4)

91351-MG7-003

$2.48

20

BOLT A, STOPPER ARM

92812-10000

$2.80

21

NUT, HEX. (8MM)

94001-08000-0S

$1.19

22

WASHER, PLAIN (8MM)

94101-08000

$0.75

23

WASHER, SPRING (10MM)

94111-10000

$1.22

24

PIN, SPLIT (2.0X15)

94201-20150

$0.94

25

BOLT, FLANGE (6X12)

95701-06012-07

$1.48

26

NIPPLE, GREASE (B.T6S)

96201-80000

$2.33
