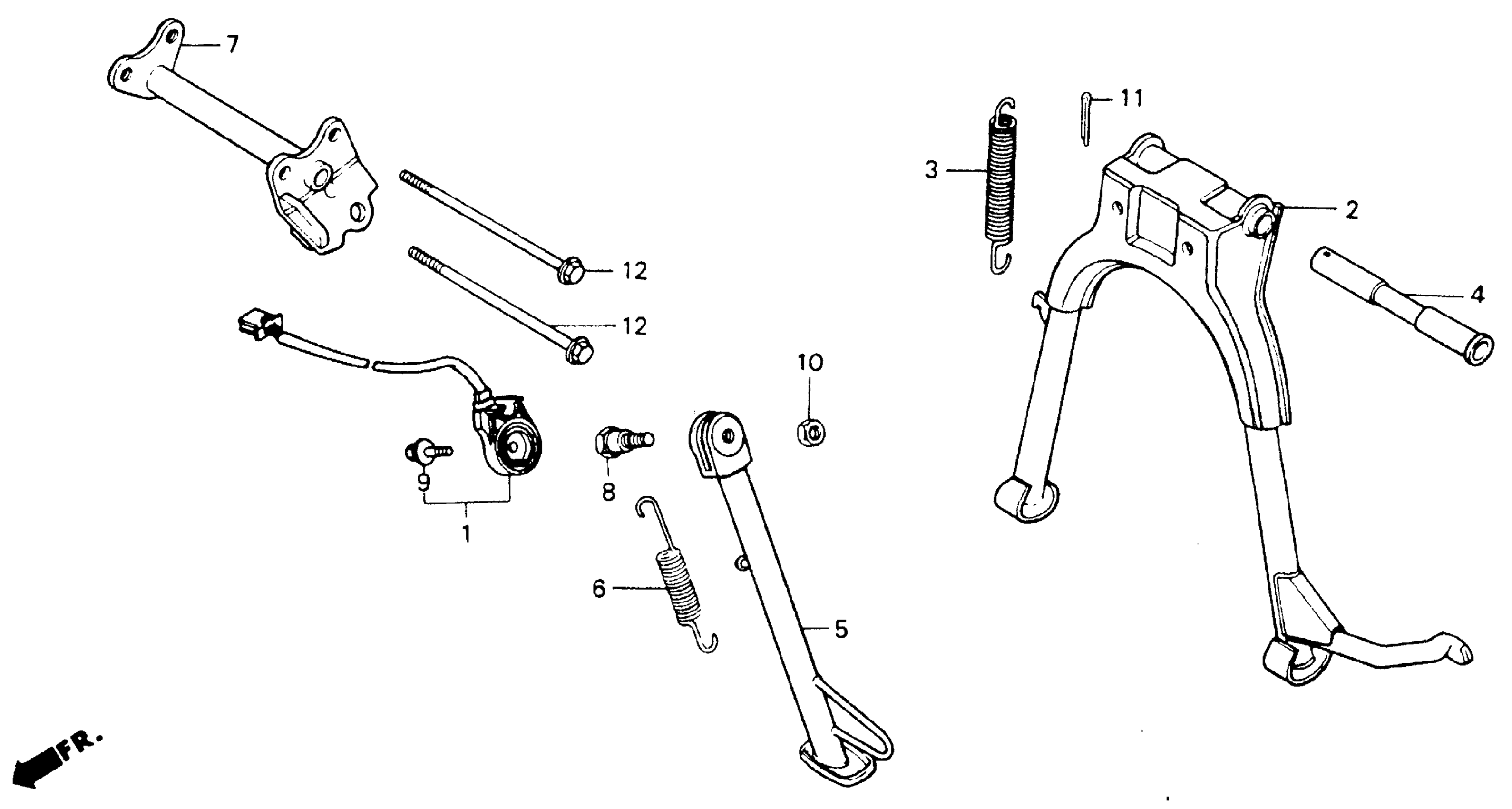

Honda CB125TTA (90) MOTORCYCLE, JPN, VIN# JH2JC063-LK000001 STAND Diagram

#

Description
Price

1

SWITCH SET, SIDE STAND

35700-GB2-306

Unavailable

1

SWITCH SET, SIDE STAND This part replaces 35700-KC1-305.

35700-GB2-306

Unavailable

2

STAND, MAIN

50500-KC1-730

Unavailable

3

SPRING, MAIN STAND

50510-MT2-000

$7.46

3

SPRING, MAIN STAND This part replaces 50522-KC1-730.

50510-MT2-000

$7.46

4

SHAFT, MAIN STAND PIVOT

50526-KC1-920

$16.00

5

BAR, SIDE STAND

50530-KC1-920

Unavailable

6

SPRING ASSY., SIDE STAND This part replaces 50541-MM4-000.

50542-MZ2-000

$15.85

6

SPRING ASSY., SIDE STAND

50542-MZ2-000

$15.85

6

SPRING ASSY., SIDE STAND This part replaces 50543-438-000.

50542-MZ2-000

$15.85

7

BRACKET, SIDE STAND

50610-KC1-920

Unavailable

8

BOLT, SIDE STAND PIVOT

90108-MK6-670

$7.43

9

BOLT, SPECIAL (6X16)

90147-MCE-950

$0.51

9

BOLT, SPECIAL (6X16) This part replaces 90147-MK6-671.

90147-MCE-950

$0.51

10

NUT, SIDE STAND

90203-MF9-710

$3.50

11

PIN, COTTER (3.0X45) This part replaces 94201-30250.

94201-30450

$1.01

11

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$1.01

11

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$1.01

11

PIN, SPLIT (3.0X45)

94201-30450

$1.01

12

BOLT, FLANGE (8X130)

95801-08130-08

Unavailable
