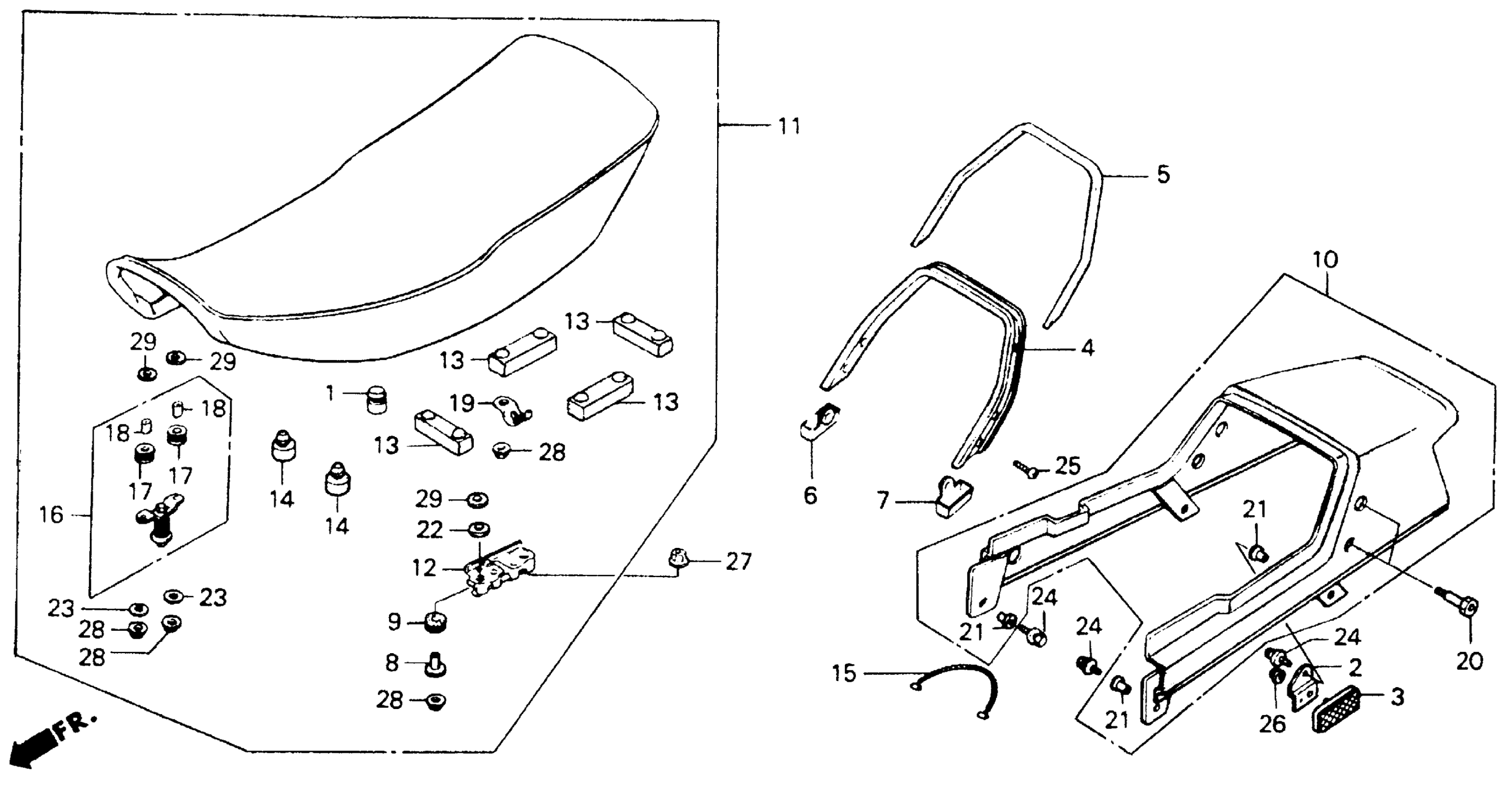

Honda CB125TTA (90) MOTORCYCLE, JPN, VIN# JH2JC063-LK000001 SEAT Diagram

#

Description
Price

1

RUBBER, AIR CLEANER ELEMENT SETTING

17213-GB4-000

Unavailable

2

STAY, RR. REFLECTOR (NOT AVAILABLE)

33740-KC1-920

Unavailable

3

REFLECTOR, REFLEX

33741-MC7-612

$14.43

4

BAR, RR. GRIP

50400-KC1-000

Unavailable

5

RUBBER, RR. GRIP BAR

50401-KC1-000

Unavailable

6

RUBBER, R. RR. GRIP END

50405-KC1-000

Unavailable

7

RUBBER, L. RR. GRIP END

50406-KC1-000

Unavailable

8

COLLAR, SETTING

61104-422-000

$6.91

9

RUBBER, HEADLIGHT CASE MOUNTING

61304-415-000

$3.47

10

COWL SET, SEAT *R109* (WL) (PASSION RED)

772A1-KC1-900ZC

Unavailable

11

SEAT This part replaces 77200-KC1-920.

77200-KC1-601

Unavailable

12

HINGE, SEAT

77202-KC1-000

Unavailable

13

RUBBER B, SEAT SETTING

77205-286-000

$5.28

14

RUBBER, SEAT CUSHION

77206-GF0-000

$5.46

15

STOPPER, SEAT

77208-KC1-000

Unavailable

16

BAR ASSY., SEAT LOCK

77220-340-003

Unavailable

16

BAR ASSY., SEAT LOCK This part replaces 77220-340-010.

77220-340-003

Unavailable

16

BAR ASSY., SEAT LOCK This part replaces 77220-340-011.

77220-340-003

Unavailable

17

RUBBER, SEAT LOCK BAR CUSHION This part replaces 77228-340-000.

77228-340-003

$4.24

17

RUBBER, SEAT LOCK BAR CUSHION This part replaces 77228-340-001.

77228-340-003

$4.24

17

RUBBER, SEAT LOCK BAR CUSHION

77228-340-003

$4.24

18

COLLAR, SEAT LOCK BAR This part replaces 77229-340-000.

77229-340-003

$2.92

18

COLLAR, SEAT LOCK BAR This part replaces 77229-340-001.

77229-340-003

$2.92

18

COLLAR, SEAT LOCK BAR

77229-340-003

$2.92

19

STAY, LID STOPPER

81222-GA7-810

Unavailable

20

BOLT, RR. GRIP BAR SETTING

90110-KC1-000

Unavailable

21

WASHER, RR. COVER

90506-425-000

$2.89

22

WASHER (14MM)

90509-169-000

Unavailable

23

WASHER, PLAIN (6MM) This part replaces 90514-700-000.

94103-06800

$1.49

23

WASHER, PLAIN (6MM)

94103-06800

$1.49

24

BOLT-WASHER (6X12)

93402-06012-00

$1.69

25

SCREW, PAN (6X16)

93500-06016-0A

$1.49

26

NUT, FLANGE (5MM)

94050-05070

$1.49

27

NUT, FLANGE (6MM)

94050-06000

$1.49

28

NUT, FLANGE (6MM)

94050-06080

$1.49

29

WASHER, PLAIN (6MM)

94103-06800

$1.49
