Description

Price

1

PEDAL, GEARSHIFT

24700-KC1-000

Unavailable

2

ARM, GEARSHIFT

24710-KC1-000

Unavailable

3

COVER, DUST

24724-422-000

$6.68

4

RUBBER, GEARSHIFT PEDAL

24781-419-000

$5.62

5

SWITCH ASSY., RR. STOP

35350-KC1-920

Unavailable

6

SPRING, STOP SWITCH

35357-KC1-730

Unavailable

7

COVER, RR. BRAKE MIDDLE ARM

43411-KC1-000

$6.90

8

ROD, RR. BRAKE

43451-KC1-730

Unavailable

9

PEDAL, RR. BRAKE

46500-KC1-700

Unavailable

10

SPRING, BRAKE PEDAL

46514-KC1-000

Unavailable

11

SHAFT, RR. BRAKE PIVOT

46515-KC1-000

Unavailable

12

BOLT, TIE ROD

90065-KC1-000

$9.65

13

NUT, TIE ROD

90201-KC1-000

Unavailable

14

BAND, WIRE (95MM)

90650-KV6-003

$3.12

15

NUT, HEX. (6MM)

94002-06070-0S

$1.49

16

WASHER, PLAIN (6MM)

94103-06700

$1.49

17

PIN, SPLIT (2.0X12)

94201-20120

$1.49

18

SPRING A, BRAKE ROD

95014-73100

$1.49

18

SPRING A, BRAKE ROD This part replaces 95014-73300.

95014-73100

$1.49

19

JOINT B, BRAKE ARM

95015-32001

$1.49

20

NUT B, BRAKE ROD ADJUSTING

95015-42000

$1.83

21

PIN C, JOINT

95015-53000

$3.06

22

BOLT, FLANGE (8X25)

95701-08025-07

$1.49

23

BOLT, FLANGE (6X12)

96001-06012-07

$1.72

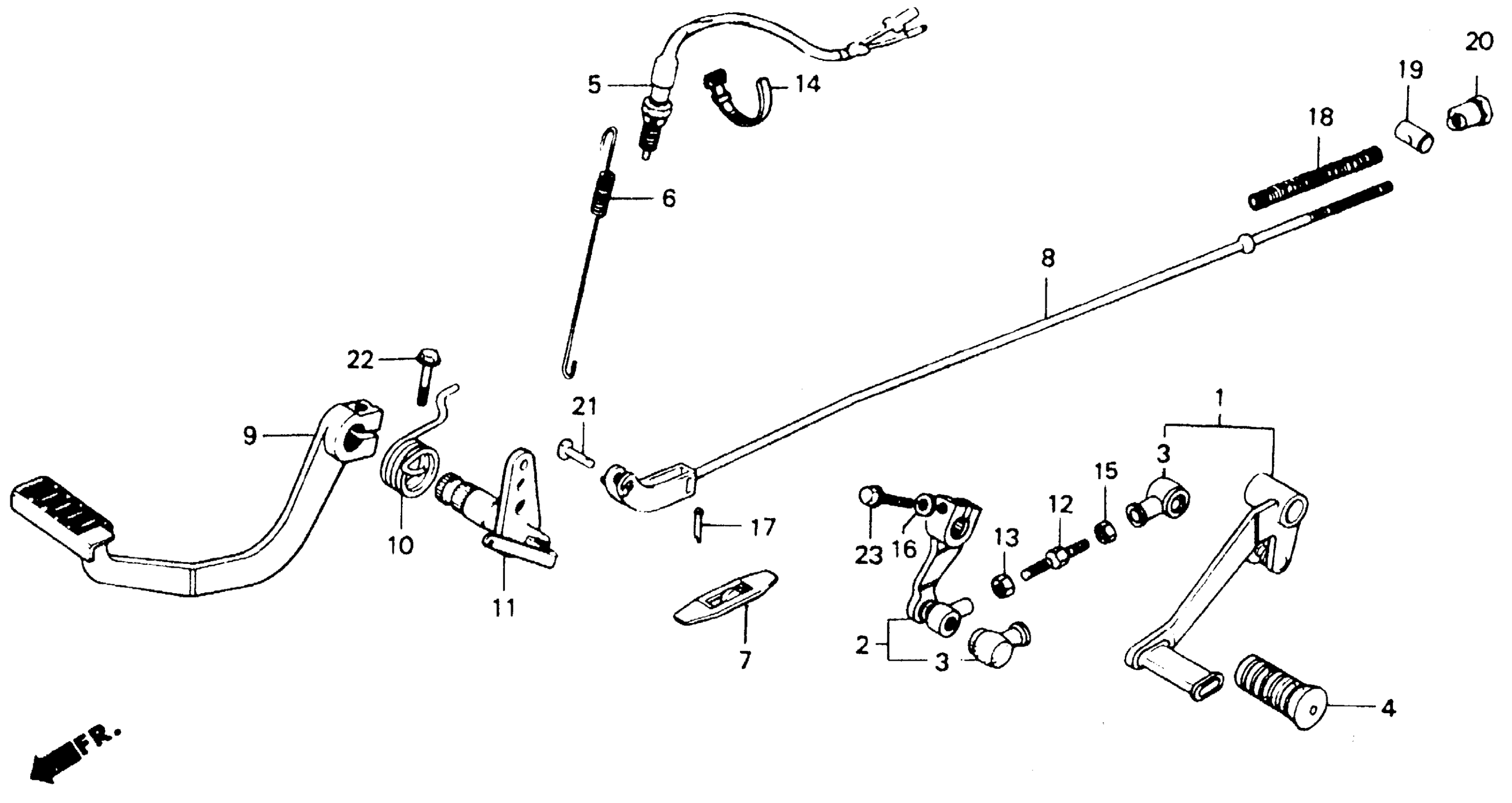

Honda CB125TTA (90) MOTORCYCLE, JPN, VIN# JH2JC063-LK000001 PEDAL Diagram

PEDAL, GEARSHIFT

ARM, GEARSHIFT

COVER, DUST

RUBBER, GEARSHIFT PEDAL

SWITCH ASSY., RR. STOP

SPRING, STOP SWITCH

COVER, RR. BRAKE MIDDLE ARM

ROD, RR. BRAKE

PEDAL, RR. BRAKE

SPRING, BRAKE PEDAL

SHAFT, RR. BRAKE PIVOT

BOLT, TIE ROD

NUT, TIE ROD

BAND, WIRE (95MM)

NUT, HEX. (6MM)

WASHER, PLAIN (6MM)

PIN, SPLIT (2.0X12)

SPRING A, BRAKE ROD

SPRING A, BRAKE ROD This part replaces 95014-73300.

JOINT B, BRAKE ARM

NUT B, BRAKE ROD ADJUSTING

PIN C, JOINT

BOLT, FLANGE (8X25)

BOLT, FLANGE (6X12)
