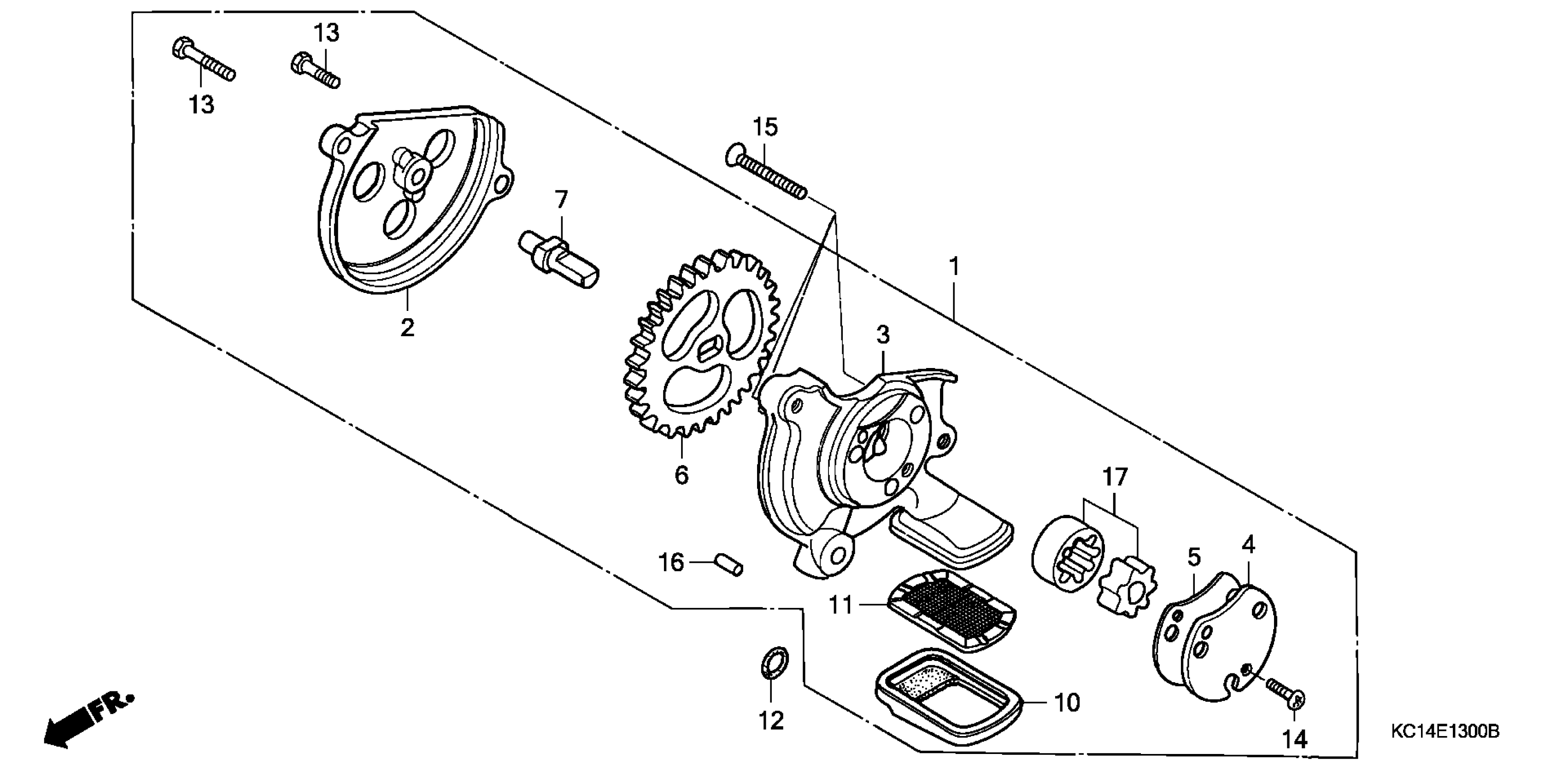

Honda CB125TTA (90) MOTORCYCLE, JPN, VIN# JH2JC063-LK000001 OIL PUMP Diagram

#

Description
Price

1

PUMP ASSY., OIL (NOT AVAILABLE)

15100-KC1-920

Unavailable

2

COVER, OIL PUMP GEAR (NOT AVAILABLE)

15106-402-000

Unavailable

3

BODY, OIL PUMP (NOT AVAILABLE)

15111-KB4-670

Unavailable

4

PLATE, OIL PUMP (YAMADA) (NOT AVAILABLE)

15121-399-000

Unavailable

5

GASKET, OIL PUMP (YAMADA) (NOT AVAILABLE)

15126-399-000

Unavailable

6

GEAR A, OIL PUMP DRIVE (42T) (YAMADA) (NOT AVAILABLE)

15131-399-000

Unavailable

7

SHAFT, OIL PUMP (NOT AVAILABLE)

15136-383-000

Unavailable

8

ROTOR, OIL PUMP (INNER)

15331-881-000

Unavailable

9

ROTOR, OIL PUMP (OUTER)

15332-881-000

Unavailable

10

HOLDER, SCREEN

15421-399-000

$9.52

11

SCREEN, OIL FILTER

15422-399-000

$8.18

12

O-RING (6X3)

91319-323-000

$2.84

13

BOLT, HEX. (5X20)

92101-05020-0A

$1.49

14

SCREW, PAN (5X10)

93500-05010-0A

$1.49

14

SCREW, PAN (5X10) This part replaces 93500-05010-1A.

93500-05010-0A

$1.49

14

SCREW, PAN (5X10) This part replaces 93510-05010-0A.

93500-05010-0A

$1.49

15

SCREW, FLAT (6X32)

93600-06032-0A

$1.49

16

PIN C, DOWEL (4X6.5)

94303-04065

$2.14

17

ROTOR SET, OIL PUMP

15021-881-000

$26.72
