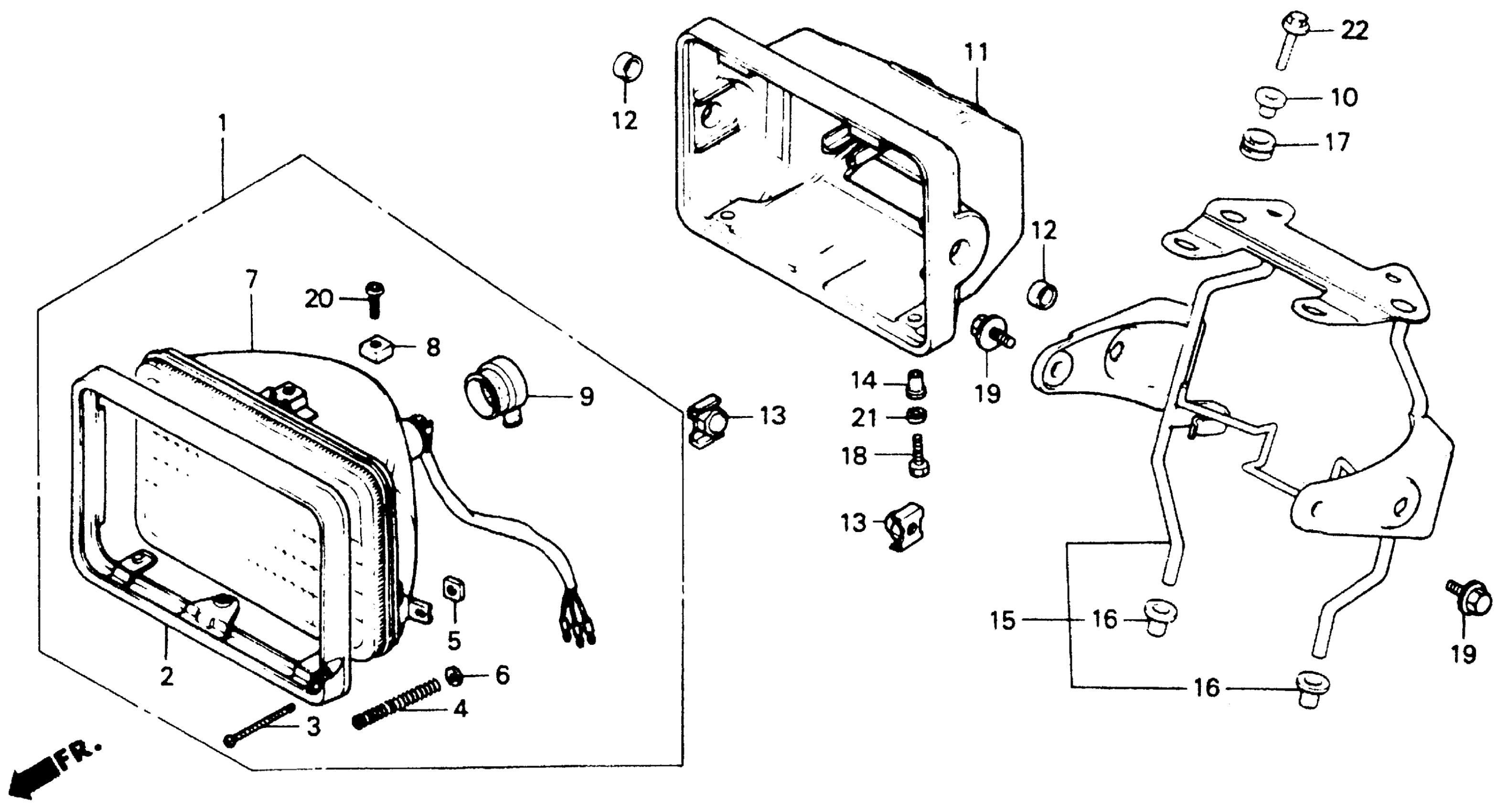

Honda CB125TTA (90) MOTORCYCLE, JPN, VIN# JH2JC063-LK000001 HEADLIGHT Diagram

#

Description
Price

1

HEADLIGHT ASSY. (NOT AVAILABLE)

33100-441-860

Unavailable

2

RIM, HEADLIGHT

33101-471-003

Unavailable

3

SCREW, BEAM ADJUSTING This part replaces 33103-346-670.

33103-MW3-610

$7.90

4

SPRING, HEADLIGHT BEAM ADJUSTING

33107-300-003

$3.01

5

NUT, HEADLIGHT BEAM ADJUSTING

33117-001-023

$2.39

6

WASHER, BEAM ADJUSTING

33119-371-003

$2.84

7

HEADLIGHT UNIT (NOT AVAILABLE)

33120-441-860

Unavailable

8

NUT, UNIT HOLDER

33128-471-003

$1.62

9

COVER, RUBBER

33130-111-671

Unavailable

10

COLLAR, SETTING

61104-422-000

$6.91

11

CASE, HEADLIGHT

61301-471-000

Unavailable

12

COLLAR, HEADLIGHT CASE

61302-471-000

Unavailable

13

NUT, HEADLIGHT CASE

61303-MK4-630

Unavailable

14

COLLAR, HEADLIGHT SETTING

61304-379-690

$11.00

15

STAY, HEADLIGHT (NOT AVAILABLE)

61311-KC1-920

Unavailable

16

BOOT, HEADLIGHT BRACKET

61312-149-300

$2.56

17

RUBBER, TAILLIGHT MOUNTING

84703-425-000

$4.72

18

BOLT, SPECIAL FLANGE (8X23)

90123-KR3-000

$3.67

19

BOLT, HEX. (5X16)

92101-05016-0G

Unavailable

20

SCREW, PAN (5X8)

93500-05008-0H

$1.49

21

WASHER, SPRING (5MM)

94111-05700

$1.49

22

BOLT, FLANGE (6X25)

95701-06025-07

$1.80
