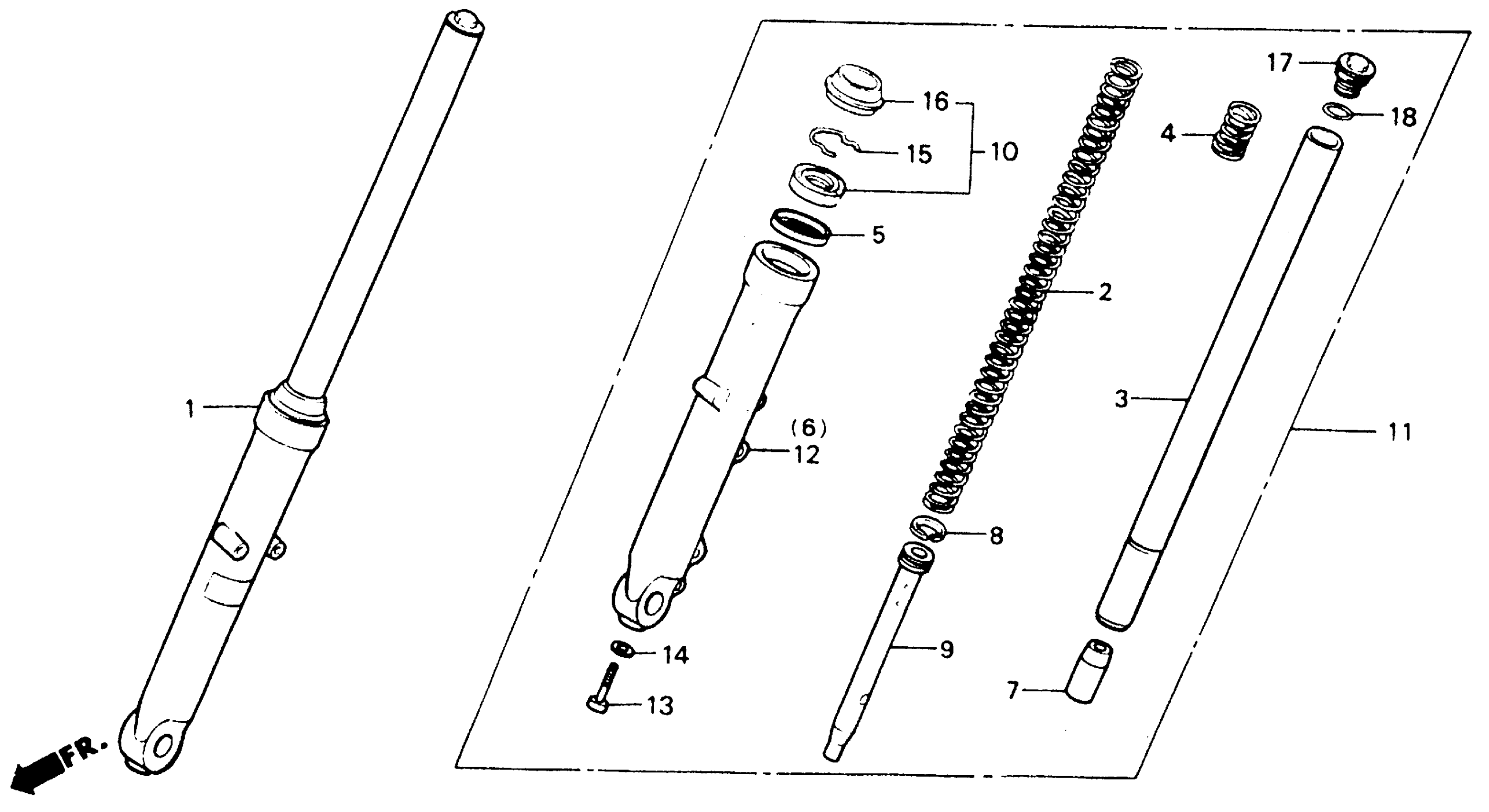

Honda CB125TTA (90) MOTORCYCLE, JPN, VIN# JH2JC063-LK000001 FRONT FORK Diagram

#

Description
Price

1

FORK ASSY., R. FR. (NOT AVAILABLE)

51400-KC1-921

Unavailable

2

SPRING, FR. FORK

51401-KC1-003

Unavailable

3

PIPE, FR. FORK

51410-KC1-003

Unavailable

4

SPRING, FR. FORK REBOUND

51412-331-770

$4.51

5

RING, BACK-UP

51412-446-003

Unavailable

6

CASE, R. FR. (LOWER) (NOT AVAILABLE)

51420-KC1-921

Unavailable

7

PIECE, OIL LOCKING This part replaces 51432-388-003.

51432-447-731

$27.42

7

PIECE, OIL LOCK

51432-447-731

$27.42

8

RING, PISTON

51437-373-781

Unavailable

9

PIPE, SEAT (NOT AVAILABLE)

51470-KB4-003

Unavailable

10

SEAL SET, FR. FORK

51490-GAA-305

$28.76

10

SEAL SET, FR. FORK This part replaces 51490-KC1-305.

51490-GAA-305

$28.76

11

FORK ASSY., L. FR. (NOT AVAILABLE)

51500-KC1-921

Unavailable

12

CASE, L. FR. (LOWER) (NOT AVAILABLE)

51520-KC1-921

Unavailable

13

BOLT, SOCKET (8X27)

90116-383-721

$5.13

14

WASHER, SPECIAL (8MM)

90544-283-000

$2.87

15

RING, OIL SEAL STOP

90601-354-000

$5.13

16

DUST SEAL

91254-GAA-003

$17.00

16

DUST SEAL (SHOWA) This part replaces 91254-KC1-003.

91254-GAA-003

$17.00

17

BOLT D1, FORK

94605-27101

$8.00

18

O-RING (23X2.8)

94608-50000

$1.49
