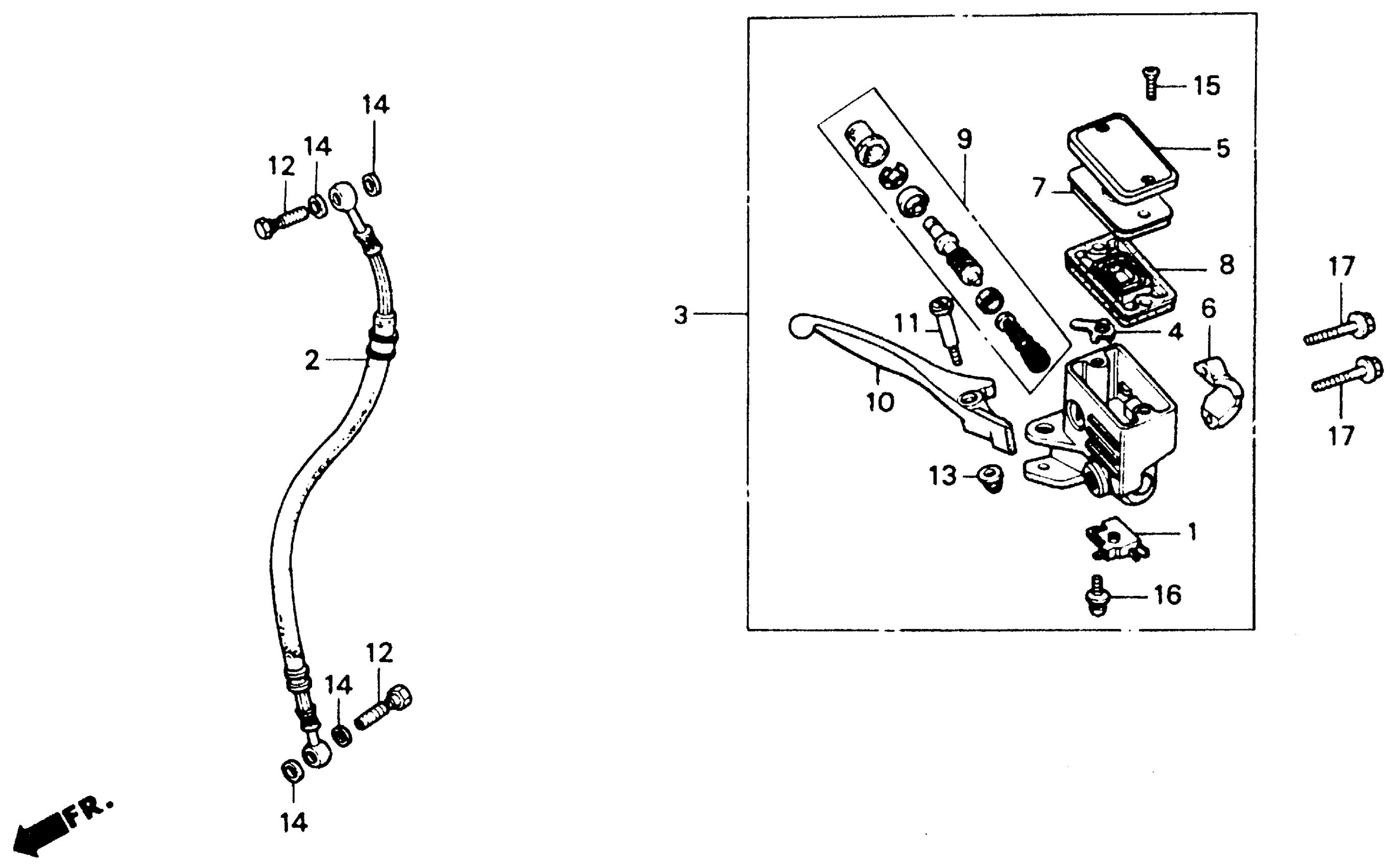

Honda CB125TTA (90) MOTORCYCLE, JPN, VIN# JH2JC063-LK000001 FR.BRAKE MASTER CYLINDER Diagram

SWITCH ASSY., FR. STOP

35340-MA5-671

$22.48

HOSE, FR. BRAKE

45126-KC1-921

Unavailable

MASTER CYLINDER ASSY., FR. BRAKE (NA USE ALT:45510-KC1-306)

45500-KC1-921

Unavailable

PROTECTOR

45512-MA6-006

$4.09

CAP, MASTER CYLINDER

45513-KE5-026

$38.35

HOLDER, MASTER CYLINDER

45517-MA5-671

$28.72

PLATE, DIAPHRAGM

45518-MB4-671

$11.13

DIAPHRAGM

45520-MA5-672

$16.64

MASTER CYLINDER SET

45530-MA4-671

$43.86

LEVER, R. HANDLE (COO) This part replaces 53175-ML5-006.

53175-MFR-305

$17.22

BOLT, HANDLE LEVER PIVOT

90114-MA5-671

Unavailable

BOLT, OIL (10X22) This part replaces 90145-MS9-611.

90145-MS9-612

$6.99

BOLT, OIL (10X22)

90145-MS9-612

$6.99

NUT, CAP (6MM)

90201-415-000

Unavailable

WASHER, OIL BOLT

90545-300-000

$5.79

SCREW, FLAT (4X12)

93600-04012-0G

$0.90

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$0.90

SCREW-WASHER (4X12)

93893-04012-07

$1.32

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.32

BOLT, FLANGE (6X22)

96001-06022-07

$1.71
