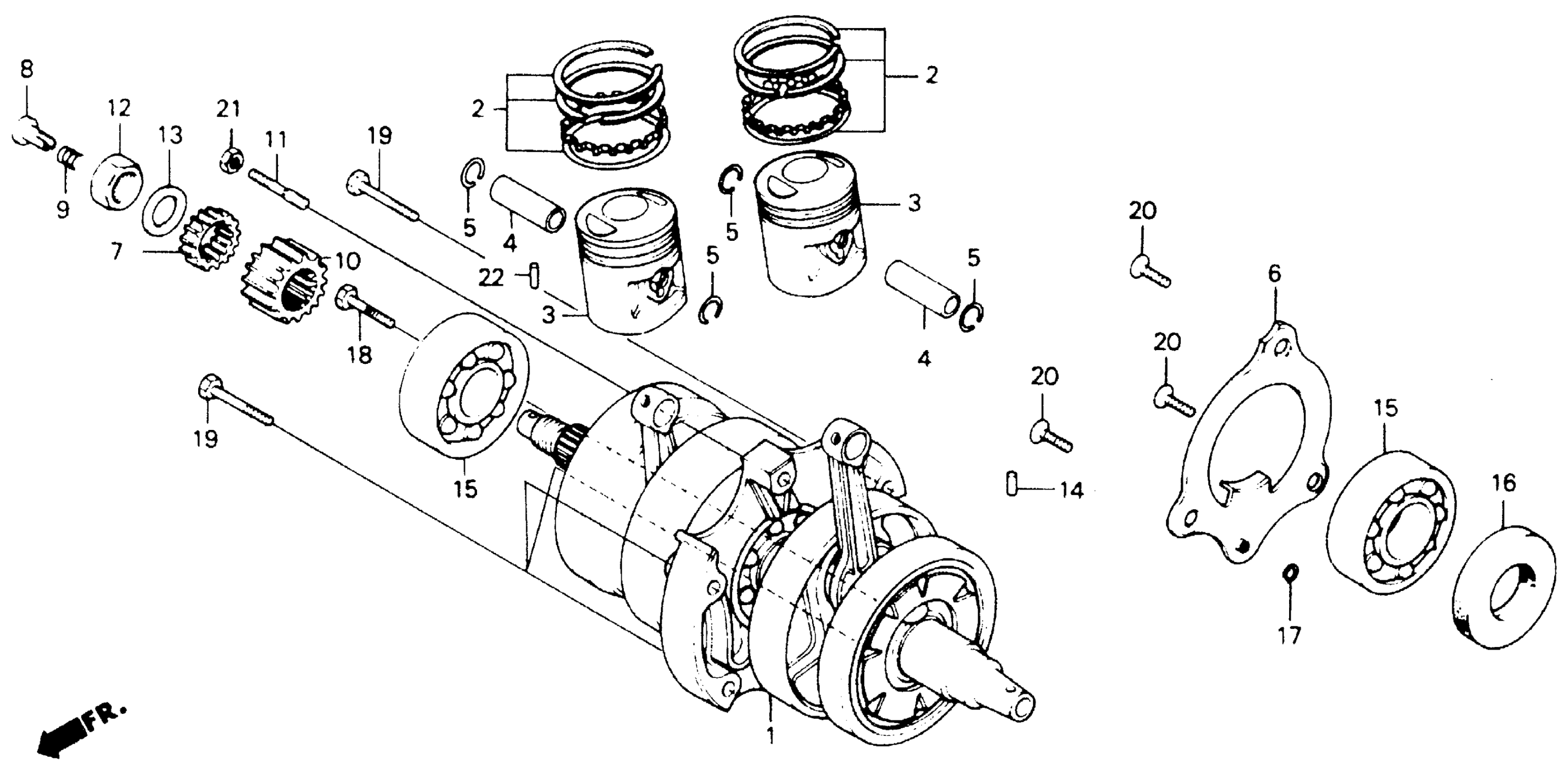

Honda CB125TTA (90) MOTORCYCLE, JPN, VIN# JH2JC063-LK000001 CRANKSHAFT Diagram

#

Description
Price

1

CRANKSHAFT This part replaces 13000-KC1-730.

13000-KC1-731

Unavailable

1

CRANKSHAFT

13000-KC1-731

Unavailable

2

RING SET, PISTON (STD)

13011-KC1-921

Unavailable

2

RING SET, PISTON (OVER SIZE) (0.25) | (Optional).

13021-KC1-921

Unavailable

2

RING SET, PISTON (OVER SIZE) (0.50) | (Optional).

13031-KC1-921

Unavailable

3

PISTON (STD)

13101-KC1-920

Unavailable

3

PISTON (0.25) | (Optional).

13102-KC1-920

Unavailable

3

PISTON (0.50) | (Optional).

13103-KC1-920

Unavailable

4

PIN, PISTON

13111-044-010

Unavailable

5

CLIP, PISTON PIN (13MM) This part replaces 13115-001-000.

94601-13000

$1.49

5

CLIP, PISTON PIN (13MM)

94601-13000

$1.49

6

PLATE, OIL THROUGH

13385-KB4-670

$32.30

7

GEAR B, OIL PUMP DRIVE (19T) (NOT AVAILABLE)

15335-399-000

Unavailable

8

THROUGH, OIL

15441-149-000

$10.12

9

SPRING, OIL THROUGH

15447-149-000

$2.92

10

GEAR, PRIMARY DRIVE (18T)

23121-402-730

Unavailable

11

BOLT, STUD (7X32)

90035-399-000

$2.92

12

NUT, HUB (16MM)

90202-567-000

$4.07

13

WASHER, LOCK

90401-399-000

$5.13

14

PIN, DOWEL (4X4.4)

90703-399-000

$4.36

15

BEARING, RADIAL BALL (6305) (NACHI)

91001-071-003

$46.05

15

BEARING, RADIAL BALL (6305) (NACHI) This part replaces 91001-402-700.

91001-071-003

$46.05

16

OIL SEAL (35X52X7) (NOK)

91201-402-015

$13.79

17

O-RING (6X3)

91319-323-000

$2.84

18

BOLT, HEX. (6X28)

92101-06028-0A

$1.49

19

BOLT, HEX. (6X32)

92101-06032-0A

$1.64

20

SCREW, FLAT (6X16)

93600-06016-0A

$1.49

21

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

21

NUT, HEX. (6MM)

94001-06200-0S

$1.49

22

ROLLER (2X13.8)

96220-20138

$1.49
