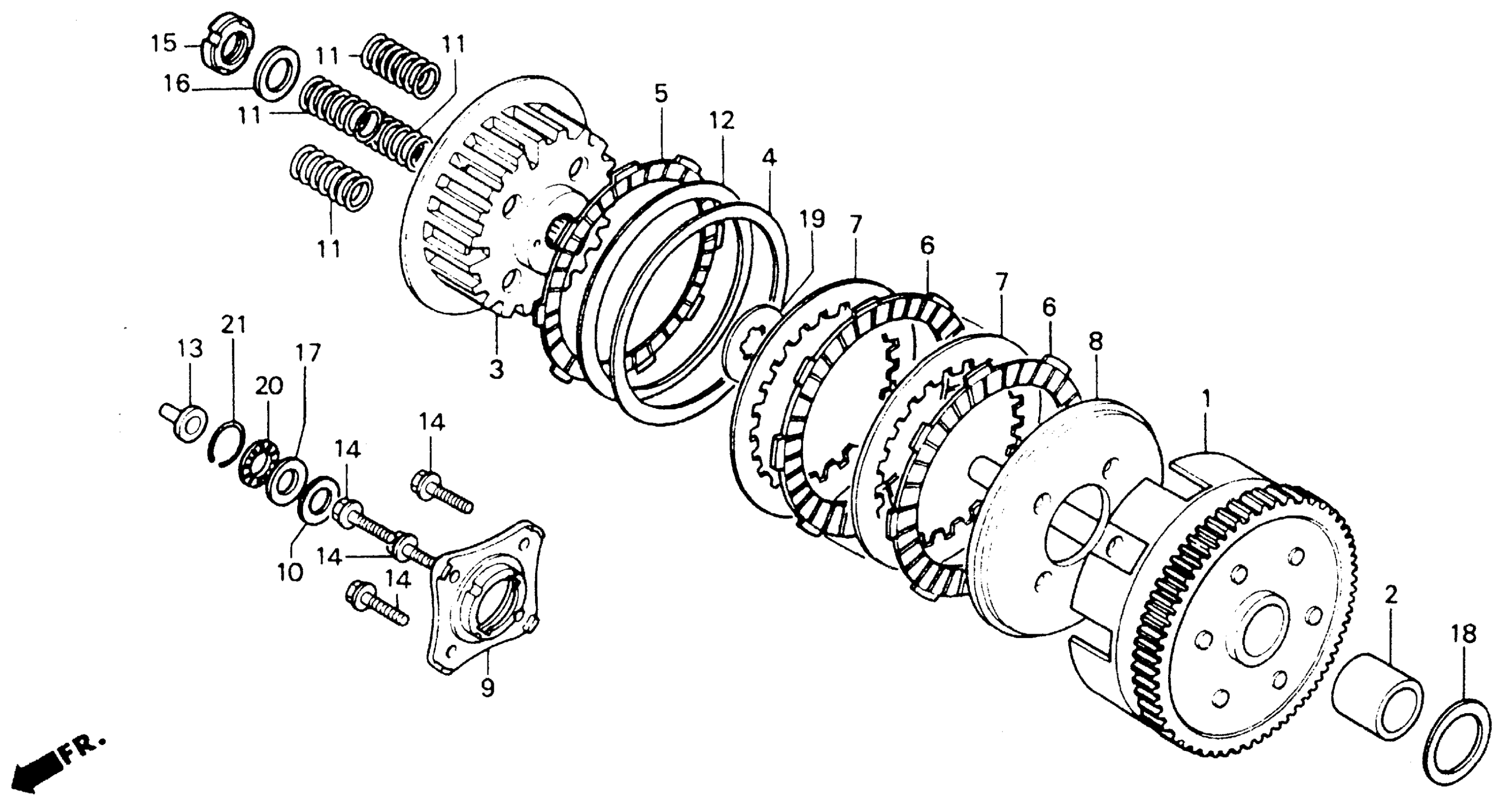

Honda CB125TTA (90) MOTORCYCLE, JPN, VIN# JH2JC063-LK000001 CLUTCH Diagram

#

Description
Price

1

CLUTCH OUTER

22100-KB4-670

$248.85

2

GUIDE, CLUTCH (OUTER)

22116-KB4-671

$23.07

3

CENTER, CLUTCH

22121-KCS-650

$35.46

3

CENTER, CLUTCH This part replaces 22121-107-010.

22121-KCS-650

$35.46

4

SEAT, JUDDER SPRING

22125-MJ8-010

Unavailable

5

DISK, CLUTCH FRICTION This part replaces 22201-MJ8-000.

22201-KAZ-000

$24.33

6

DISK, CLUTCH FRICTION

22201-166-000

$16.07

7

PLATE, CLUTCH

22311-KN4-680

$6.02

7

PLATE, CLUTCH This part replaces 22311-107-000.

22311-KN4-680

$6.02

8

PLATE, CLUTCH PRESSURE

22350-107-010

$28.38

9

PLATE, CLUTCH LIFTER

22361-437-000

$13.61

10

COLLAR, CLUTCH LIFTER

22362-KR3-600

$22.10

11

SPRING, CLUTCH

22401-MB0-000

$5.15

12

SPRING, JUDDER

22402-MJ8-010

Unavailable

13

PIN, CLUTCH LIFTER

22820-KK0-000

$5.49

14

BOLT, SPECIAL FLANGE (6X22)

90050-357-000

Unavailable

15

NUT, LOCK (16MM)

90231-KB5-720

$4.47

15

NUT, LOCK (16MM) This part replaces 90231-KR3-000.

90231-KB5-720

$4.47

16

WASHER (16MM)

90434-KR3-000

$2.85

17

WASHER, THRUST (12MM) (TOYO)

90452-147-003

$3.46

18

WASHER, THRUST (20MM)

90459-KB4-670

$3.99

19

WASHER B, SPLINE (20MM)

90461-107-000

$4.44

20

BEARING, NEEDLE (12MM) (NTN)

91001-147-003

$11.56

21

CLIP, NEEDLE THRUST BEARING (12MM)

91012-KF0-000

$2.83
