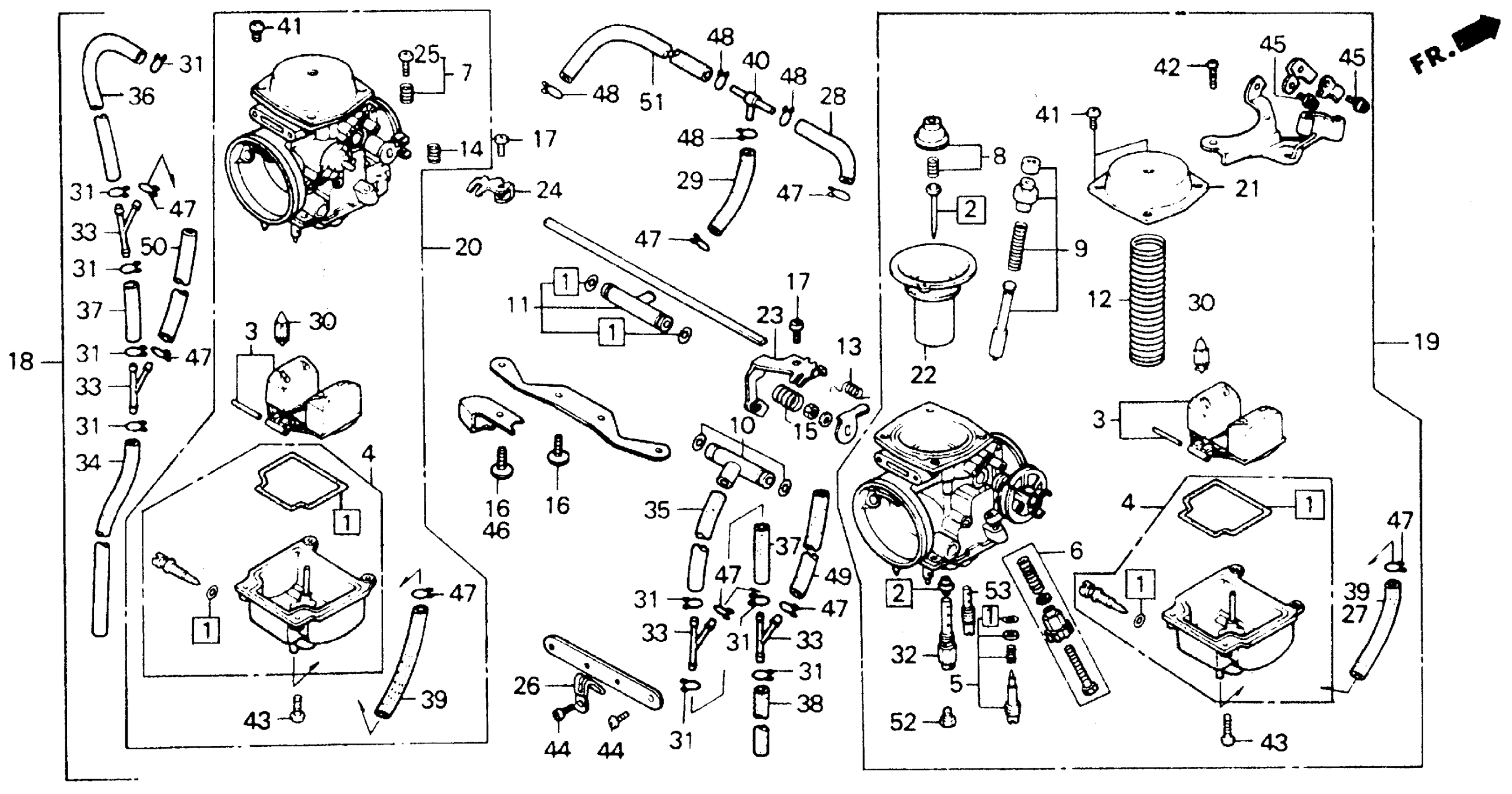

Honda CB125TTA (90) MOTORCYCLE, JPN, VIN# JH2JC063-LK000001 CARBURETOR Diagram

#

Description
Price

1

GASKET SET This part replaces 16010-KR3-601.

16010-KR3-980

Unavailable

2

NEEDLE SET, JET (NOT AVAILABLE)

16012-KC1-920

Unavailable

3

FLOAT SET

16013-KR3-980

$55.27

3

FLOAT SET This part replaces 16013-MA6-003.

16013-KR3-980

$55.27

4

CHAMBER SET, FLOAT (NOT AVAILABLE)

16015-KC1-920

Unavailable

5

SCREW SET A (NOT AVAILABLE)

16016-KS4-641

Unavailable

6

SCREW SET This part replaces 16028-KR3-671.

16028-KR3-980

$46.87

7

SCREW SET C

16029-KEJ-900

Unavailable

7

SCREW SET This part replaces 16029-KE8-004.

16029-KEJ-900

Unavailable

8

PLATE SET, VALVE

16037-KEN-620

$21.30

8

PLATE SET, VALVE This part replaces 16037-KJ9-003.

16037-KEN-620

$21.30

9

VALVE SET, STARTER

16046-MA6-003

$78.81

10

JOINT SET This part replaces 16047-KT7-003.

16048-KR3-980

$52.03

10

JOINT SET This part replaces 16047-MA6-003.

16048-KR3-980

$52.03

10

JOINT SET

16048-KR3-980

$52.03

11

JOINT SET This part replaces 16047-MA6-003.

16048-KR3-980

$52.03

11

JOINT SET

16048-KR3-980

$52.03

12

SPRING, COMPRESSION COIL

16051-KC1-920

Unavailable

13

SPRING, TORSION COIL

16051-KR3-601

Unavailable

14

SPRING

16052-MB0-671

$6.23

15

SPRING, COMPRESSION COIL

16053-MA6-003

$9.07

16

SCREW, PAN (6X12)

16080-ML4-611

$3.24

17

SCREW, PAN (4X8) This part replaces 16081-MM2-671.

16081-ML4-611

Unavailable

18

CARBURETOR ASSY. (VE32A A) (NOT AVAILABLE)

16100-KC1-922

Unavailable

19

CARBURETOR ASSY., R. (NOT AVAILABLE)

16101-KC1-920

Unavailable

20

CARBURETOR ASSY., L. (NOT AVAILABLE)

16102-KC1-920

Unavailable

21

TOP

16107-KR3-601

Unavailable

22

PISTON, VACUUM (NOT AVAILABLE)

16111-KC1-920

Unavailable

23

LEVER, STARTER

16120-KR3-601

Unavailable

24

LEVER, STARTER

16121-MA6-003

$14.62

25

SCREW, STOPPER

16124-KR3-601

Unavailable

26

BINDER

16134-KC1-920

Unavailable

27

TUBE

16142-MN9-004

Unavailable

30

VALVE, FLOAT

16155-413-751

$32.50

32

HOLDER, NEEDLE JET (NOT AVAILABLE)

16165-KC1-920

Unavailable

35

TUBE, AIR VENT

16199-KC1-920

Unavailable

39

TUBE

16198-KW4-003

Unavailable

41

SCREW, PAN (4X8)

93500-04008-0A

$1.49

41

SCREW, PAN (4X8) This part replaces 93500-04008-1A.

93500-04008-0A

$1.49

42

SCREW, PAN (4X10)

93500-04010-0A

$1.49

42

SCREW, PAN (4X10) This part replaces 93500-04010-1A.

93500-04010-0A

$1.49

43

SCREW, PAN (4X14)

93500-04014-0A

$1.49

43

SCREW, PAN (4X14) This part replaces 93500-04014-1A.

93500-04014-0A

$1.49

44

SCREW, PAN (5X10)

93500-05010-0A

$1.49

44

SCREW, PAN (5X10) This part replaces 93500-05010-1A.

93500-05010-0A

$1.49

44

SCREW, PAN (5X10) This part replaces 93510-05010-0A.

93500-05010-0A

$1.49

45

SCREW-WASHER (4X10)

93892-04010-00

$1.49

45

SCREW-WASHER (4X10) This part replaces 93892-04010-10.

93892-04010-00

$1.49

47

CLIP, TUBE (B8)

95002-02080

$1.80

52

JET, MAIN (#95)

99101-GHB-0950

$8.77

52

JET, MAIN (#95) This part replaces 99101-393-0950.

99101-GHB-0950

$8.77

53

JET, SLOW (#38)

99103-KC1-0380

Unavailable
