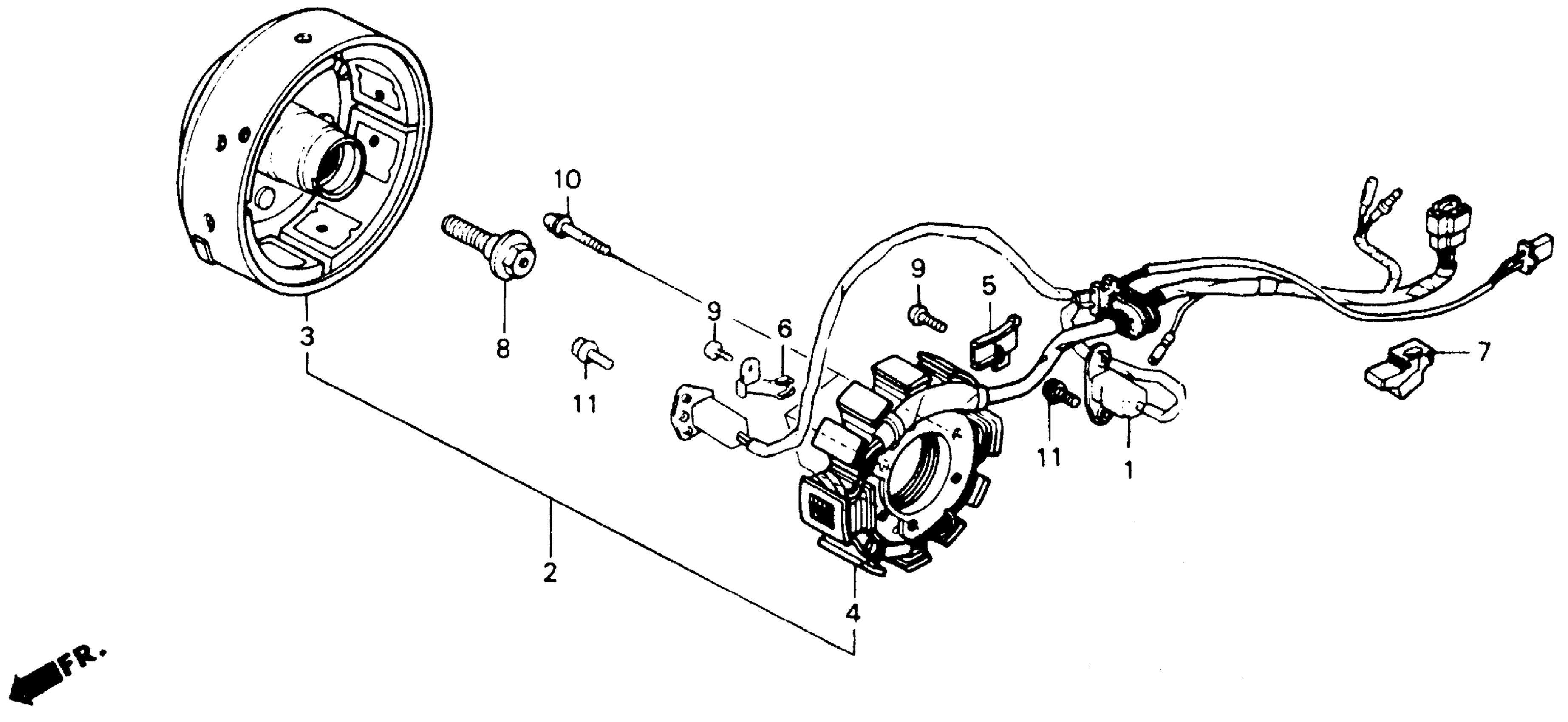

Honda CB125TTA (90) MOTORCYCLE, JPN, VIN# JH2JC063-LK000001 ALTERNATOR Diagram

GENERATOR ASSY., PULSE

30300-KC1-004

Unavailable

GENERATOR ASSY., PULSE This part replaces 30300-KC1-920.

30300-KC1-004

Unavailable

GENERATOR ASSY., FLYWHEEL TYPEA.C. (DENSO) (NOT AVAILABLE)

31100-KC1-921

Unavailable

FLYWHEEL (DENSO)

31110-KC1-921

Unavailable

STATOR (DENSO) (NOT AVAILABLE)

31120-KC1-921

Unavailable

CLAMP, WIRE

32912-KB4-670

$6.07

CLAMP, WIRE

32912-KC1-000

Unavailable

GROMMET, ALTERNATOR WIRE

32972-KC1-850

Unavailable

BOLT, ROTOR SETTING

90123-402-700

$12.84

BOLT, SOCKET (5X12) | Use from Engine SN 2002397

90089-KR0-000

$2.92

SCREW, PAN (5X12) | Use up to Engine SN 2002396

93500-05012-0A

$1.49

SCREW-WASHER (5X28) (NOT AVAILABLE)

93892-05028-08

Unavailable

SCREW-WASHER (6X20) (NOT AVAILABLE)

93892-06020-08

Unavailable
