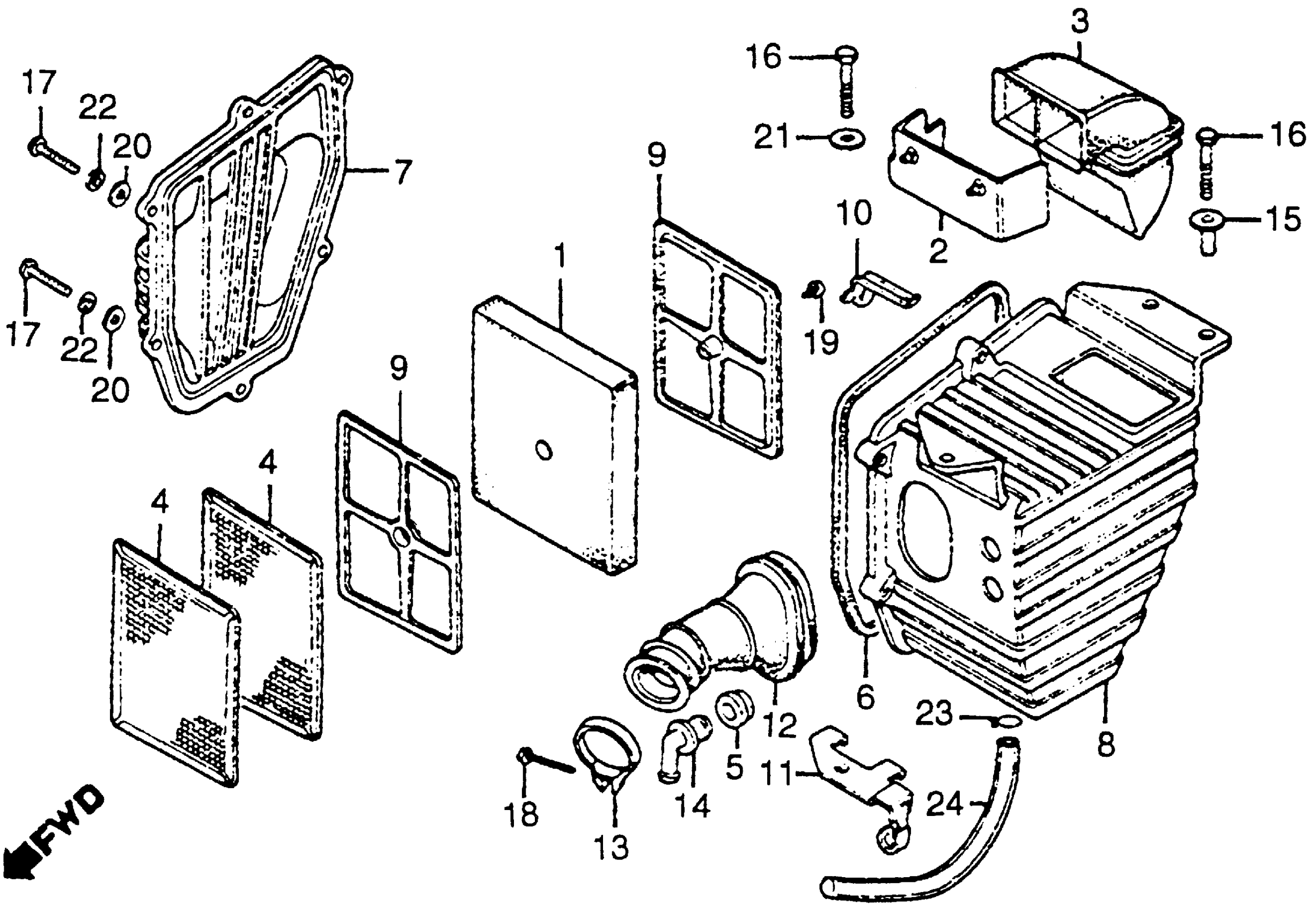

Honda CB125SAC (85) MOTORCYCLE, BRA, VIN# 9C2JC131-FR100001 AIR CLEANER Diagram

ELEMENT, AIR CLEANER

17211-439-000

Unavailable

COVER, DUCT

17218-439-010

Unavailable

DUCT, AIR CLEANER

17219-397-630

Unavailable

TRAP

17221-KCH-850

Unavailable

TRAP This part replaces 17221-KG7-000.

17221-KCH-850

Unavailable

GROMMET, TUBE (NOT AVAILABLE)

17225-KB4-790

Unavailable

SEAL, AIR CLEANER HOUSING

17226-439-000

Unavailable

COVER, AIR CLEANER HOUSING

17228-439-000

Unavailable

HOUSING, AIR CLEANER (NOT AVAILABLE)

17229-441-910

Unavailable

PLATE, ELEMENT SETTING

17231-439-000

Unavailable

STAY, CANISTER TUBE SETTING (NOT AVAILABLE)

17235-441-910

Unavailable

PLATE, AIR CLEANER SETTING

17246-441-860

Unavailable

TUBE, AIR CLEANER CONNECTING This part replaces 17253-439-000.

17253-439-010

Unavailable

TUBE, AIR CLEANER CONNECTING

17253-439-010

Unavailable

BAND A, AIR CLEANER CONNECTING TUBE

17255-323-000

$7.30

JOINT, BREATHER (NOT AVAILABLE)

17402-441-910

Unavailable

WASHER, NUMBER BRACKET MOUNTING

90563-045-000

$3.12

BOLT, HEX. (6X16) This part replaces 92000-06016-0A.

92101-06016-0A

$1.49

BOLT, HEX. (6X16) This part replaces 92100-06016-0A.

92101-06016-0A

$1.49

BOLT, HEX. (6X16)

92101-06016-0A

$1.49

SCREW, PAN (4X18)

93500-04018-0A

$1.49

SCREW, PAN (4X25)

93500-04025-0A

$1.93

SCREW, TAPPING

93901-14020

Unavailable

WASHER, PLAIN (4MM)

94101-04000

$1.49

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

WASHER, PLAIN (6MM)

94101-06800

$1.49

WASHER, SPRING (4MM)

94111-04000

$1.49

CLIP, TUBE (C8)

95002-45000

$1.49

TUBE ASSY., DRAIN

17365-437-305

$4.52

TUBE ASSY., DRAIN This part replaces 95003-10025-10.

17365-437-305

$4.52
