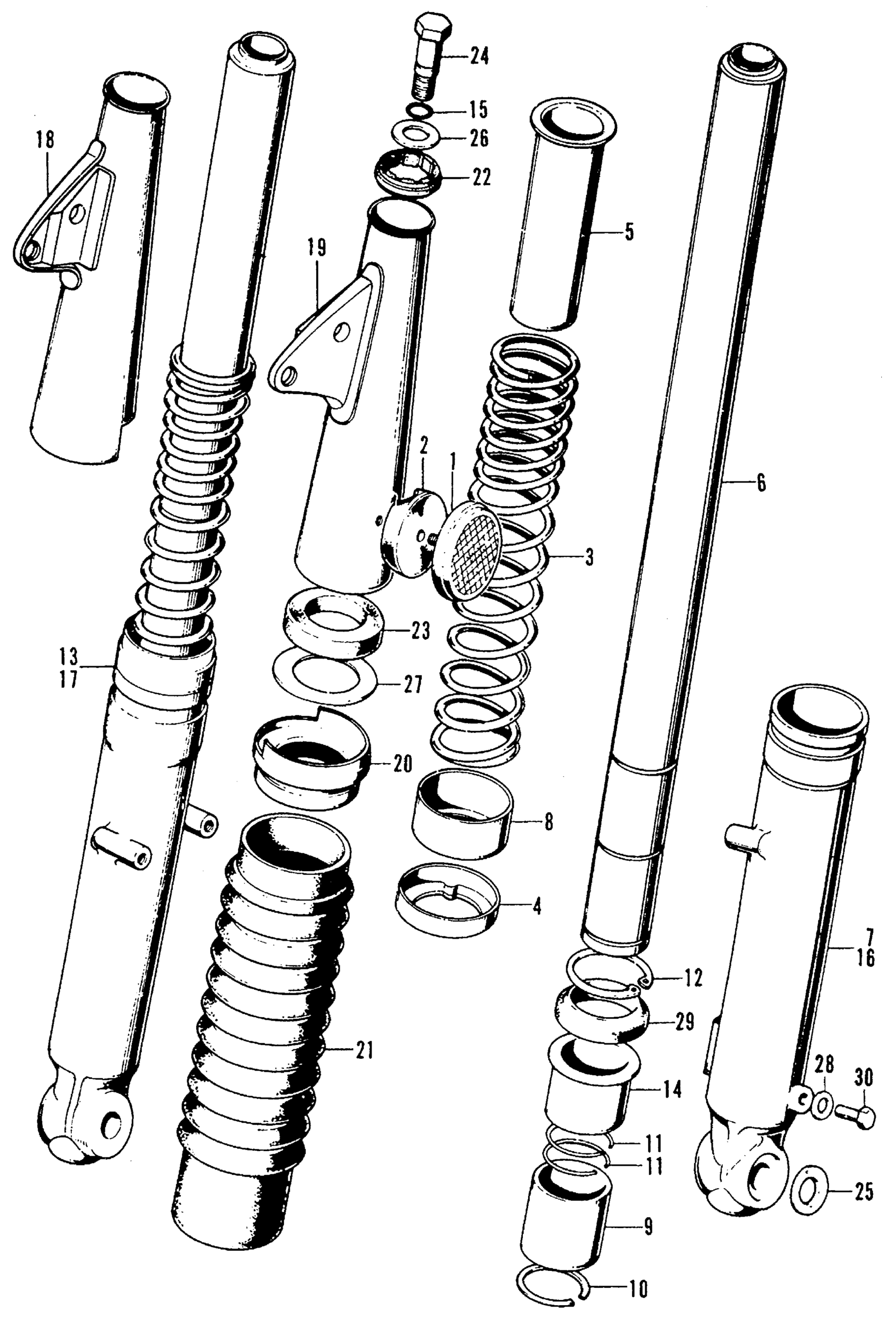

Honda CB125SA MOTORCYCLE, JPN, VIN# CB125S-1021922 FRONT FORK Diagram

#

Description
Price

1

REFLECTOR, FR. REFLEX This part replaces 33741-340-670.

33741-102-870

$35.84

2

BASE, FR. REFLECTOR

33744-098-970

Unavailable

3

SPRING, FR. FORK (NOT AVAILABLE)

51401-324-010

Unavailable

4

SEAT, FR. FORK SPRING (NOT AVAILABLE)

51407-229-000

Unavailable

5

GUIDE, FR. FORK SPRING

51409-028-000

$2.13

6

PIPE, FR. FORK This part replaces 51410-056-000.

51410-459-911

Unavailable

6

PIPE, FR. FORK

51410-459-911

Unavailable

7

PIPE, R. FR. FORK (LOWER) (NOT AVAILABLE)

51420-056-670

Unavailable

8

GUIDE, FR. FORK SPRING (LOWER)

51430-229-000

Unavailable

9

PISTON, FORK (27MM) This part replaces 51442-229-000.

94603-27002

Unavailable

9

PISTON, FORK (27MM)

94603-27002

Unavailable

10

RING B, SNAP (27MM) (NOT AVAILABLE) This part replaces 51445-028-000.

94580-27000

Unavailable

11

RING A, SNAP (27MM) This part replaces 51446-028-000.

94570-27000

Unavailable

11

RING A, SNAP (27MM)

94570-27000

Unavailable

12

CIRCLIP (INNER) (37MM)

51447-028-000

Unavailable

13

CUSHION ASSY., R. FR. (NOT AVAILABLE)

51450-324-670

Unavailable

14

GUIDE, FORK PIPE (27MM) This part replaces 51451-028-010.

94602-27201

Unavailable

14

GUIDE, FORK PIPE (27MM)

94602-27201

Unavailable

15

O-RING (8.4X2.4) This part replaces 51493-273-000.

94608-10000

$1.49

15

O-RING (8.4X2.4)

94608-10000

$1.49

16

PIPE, L. FR. FORK (LOWER)

51520-056-670

Unavailable

17

FORK ASSY., L. FR. (NOT AVAILABLE)

51550-324-670

Unavailable

18

COVER, R. FR. FORK (UPPER) *MRCR2* (CHROME PLATING)

51602-324-670XW

$75.34

19

COVER, L. FR. FORK (UPPER) *MRCR2* (CHROME PLATING) (NOT AVAILABLE)

51606-324-670XW

Unavailable

20

SEAT, FR. COVER (LOWER)

51608-028-000

Unavailable

21

BOOT, FR. FORK This part replaces 51611-106-000.

51611-459-880

$25.33

21

BOOT, FR. FORK

51611-459-880

$25.33

22

MOUNT, FORK COVER (UPPER)

51621-107-000

Unavailable

23

MOUNT, FORK COVER (LOWER)

51622-108-000

Unavailable

24

BOLT B, FORK This part replaces 90123-105-000.

94605-10200

Unavailable

24

BOLT B, FORK This part replaces 90123-459-670.

94605-10200

Unavailable

24

BOLT B, FORK

94605-10200

Unavailable

25

WASHER (12.5MM)

90528-229-000

$2.02

26

WASHER, FORK BOLT (13MM) This part replaces 90537-051-000.

94606-13001

$1.49

26

WASHER, FORK BOLT (13MM) This part replaces 94606-13000.

94606-13001

$1.49

26

WASHER, FORK BOLT (13MM)

94606-13001

$1.49

27

WASHER, FORK COVER STOPPING (NOT AVAILABLE)

90538-108-000

Unavailable

28

GASKET, FR. FORK DRAIN VALVE

90543-273-000

$2.46

29

OIL SEAL, FR. FORK

90756-028-000

$12.47

30

BOLT, HEX. (6X8) This part replaces 92000-06008.

92101-06008-0A

$1.49

30

BOLT, HEX. (6X8) This part replaces 92000-06008-0A.

92101-06008-0A

$1.49

30

BOLT, HEX. (6X8)

92101-06008-0A

$1.49
