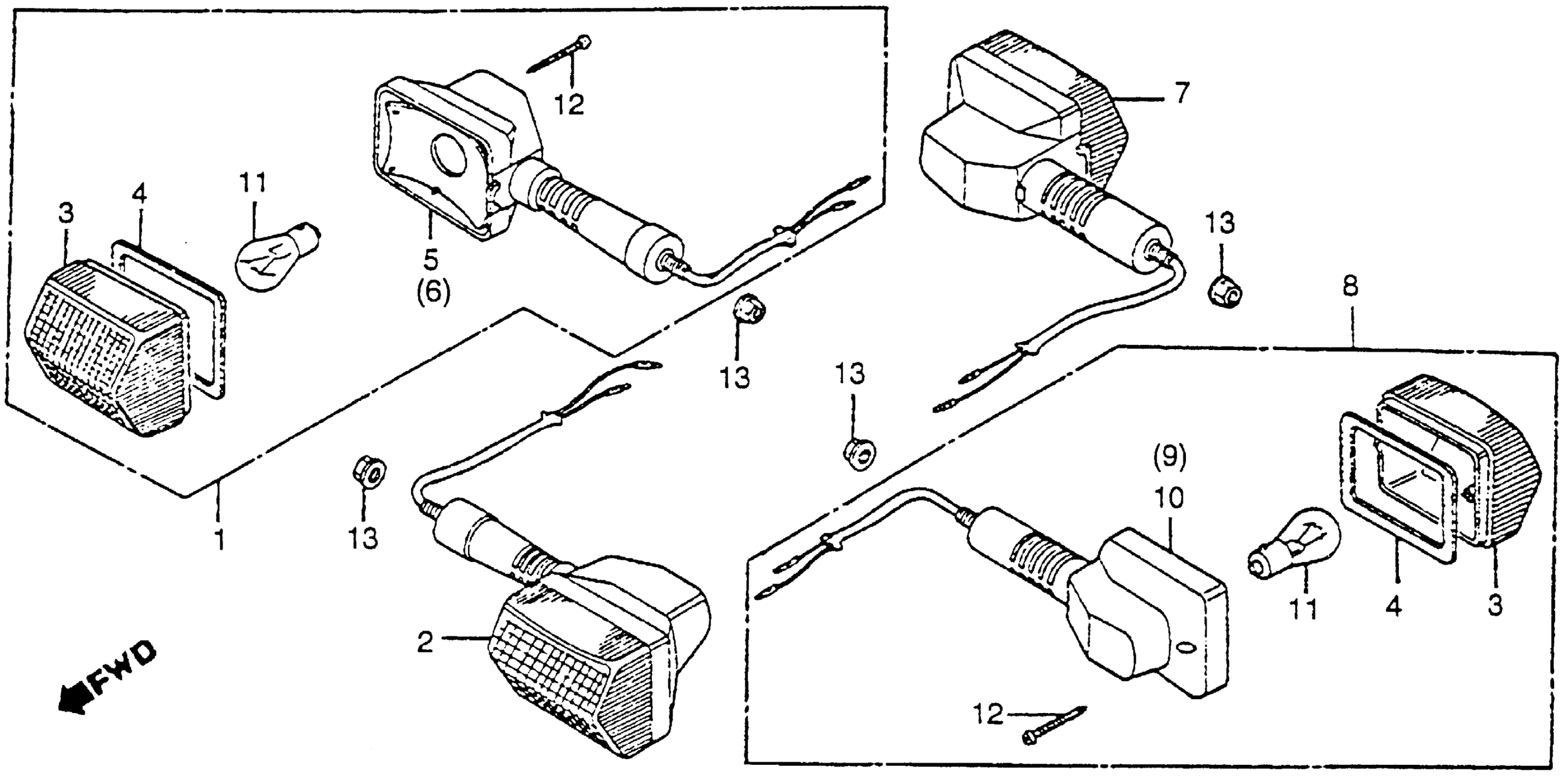

Honda CB125SA (85) MOTORCYCLE, BRA, VIN# 9C2JC130-FR100001 TURN SIGNAL Diagram

#

Description

Price

1

WINKER LIGHT ASSY This part replaces 33300-441-971.

33300-441-405

Unavailable

2

WINKER LIGHT ASSY This part replaces 33350-441-971.

33300-441-405

Unavailable

3

LENS, TURN SIGNAL (COO) This part replaces 33402-MG2-003.

33402-MGW-305

$10.52

4

GASKET, LENS

33407-MG2-003

$5.94

5

BASE, R. FR. This part replaces 33420-441-971.

33420-441-405

Unavailable

6

BASE, L. FR. TURN SIGNAL

33470-441-971

Unavailable

7

TURN SIGNAL SET, R. This part replaces 33500-441-971.

33500-441-405

Unavailable

8

TURN SIGNAL SET, R. This part replaces 33550-441-971.

33500-441-405

Unavailable

9

BASE, R. RR. TURN SIGNAL

33620-441-971

Unavailable

10

BASE COMP T/SIGNAL This part replaces 33670-441-971.

33620-441-405

Unavailable

11

BULB, TURN SIGNAL (12V 23W) (STANLEY)

34905-268-671

$2.79

12

SCREW, TAPPING (3X25)

91901-MG2-003

$2.70

13

NUT, FLANGE (10MM)

94050-10000

$1.59
