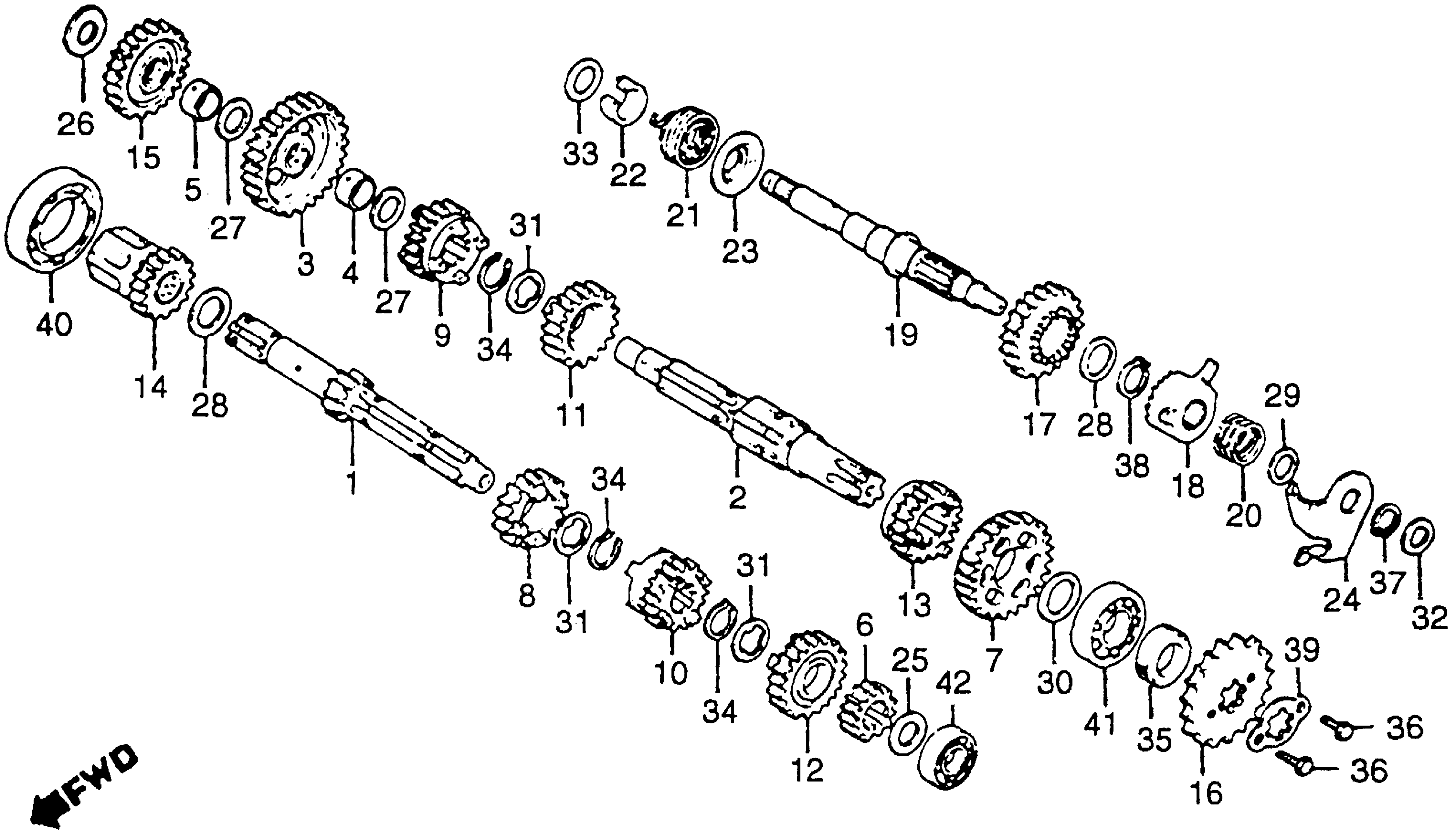

Honda CB125SA (85) MOTORCYCLE, BRA, VIN# 9C2JC130-FR100001 TRANSMISSION + KICK STARTER SPINDLE Diagram

#

Description
Price

1

MAINSHAFT, TRANSMISSION (13T) This part replaces 23211-383-000.

23211-383-003

Unavailable

1

MAINSHAFT, TRANSMISSION (13T)

23211-383-003

Unavailable

2

COUNTERSHAFT, TRANSMISSION

23221-441-000

Unavailable

3

GEAR, COUNTERSHAFT LOW (36T)

23426-KCS-650

$65.26

3

GEAR, COUNTERSHAFT LOW (36T) This part replaces 23426-439-320.

23426-KCS-650

$65.26

4

COLLAR, COUNTERSHAFT LOW GEAR

23427-439-000

$18.69

5

BUSHING

23431-439-000

Unavailable

6

GEAR, MAINSHAFT SECOND (17T)

23441-439-000

Unavailable

7

GEAR, COUNTERSHAFT SECOND (32T) (NOT AVAILABLE)

23451-439-900

Unavailable

8

GEAR, MAINSHAFT THIRD (20T)

23461-439-000

$79.98

9

GEAR, COUNTERSHAFT THIRD (28T)

23471-439-000

$87.23

10

GEAR, MAINSHAFT FOURTH (23T)

23481-439-000

Unavailable

11

GEAR, COUNTERSHAFT FOURTH (26T)

23491-KN6-930

Unavailable

11

GEAR, COUNTERSHAFT FOURTH (26T) This part replaces 23491-439-000.

23491-KN6-930

Unavailable

12

GEAR, MAINSHAFT FIFTH (25T)

23501-KN6-930

Unavailable

12

GEAR, MAINSHAFT FIFTH (25T) This part replaces 23501-439-000.

23501-KN6-930

Unavailable

13

GEAR, COUNTERSHAFT FIFTH (24T)

23511-439-010

Unavailable

14

GEAR, STARTER (19T)

23520-383-000

Unavailable

15

GEAR ONLY, IDLE STARTER (29T)

23531-439-000

Unavailable

16

SPROCKET, DRIVE (14T) This part replaces 23801-KF9-900.

23801-KF9-505

$38.11

16

SPROCKET, DRIVE (14T) This part replaces 23801-437-000.

23801-KF9-505

$38.11

17

PINION, KICK STARTER (29T)

28211-397-010

Unavailable

18

RATCHET, KICK STARTER

28221-397-020

Unavailable

19

SPINDLE, KICK STARTER

28251-397-010

Unavailable

20

SPRING, KICK STARTER RATCHET

28253-KA2-000

$5.52

21

SPRING, KICK STARTER

28261-397-000

Unavailable

22

COLLAR, KICK SPINDLE

28262-397-000

Unavailable

23

RETAINER, STARTER SPRING

28263-397-000

Unavailable

24

PLATE, RATCHET GUIDE

28270-397-020

Unavailable

25

WASHER, THRUST (15MM)

90451-107-000

$1.49

26

WASHER, THRUST (15MM)

90451-365-000

$3.08

27

WASHER, THRUST (16.5MM)

90452-107-000

Unavailable

28

WASHER A, THRUST (20MM)

90453-107-000

$2.25

29

WASHER, THRUST (16MM)

90453-235-000

$1.83

30

WASHER, THRUST (20MM)

90454-107-000

$1.80

31

WASHER A, SPLINE (20MM)

90455-107-000

$1.92

32

WASHER, THRUST (12MM)

90459-107-000

$1.49

33

WASHER, THRUST (16MM)

90462-107-000

$2.11

34

SET-RING (20MM)

90605-200-000

$2.92

35

OIL SEAL (20X34X7) (ARAI) This part replaces 91201-030-023.

91201-030-033

$5.54

35

OIL SEAL (20X34X7) (ARAI) This part replaces 91201-030-025.

91201-030-033

$5.54

35

OIL SEAL (20X34X7) (ARAI)

91201-030-033

$5.54

36

BOLT, HEX. (6X10) This part replaces 92000-06010.

92101-06010-0A

$1.49

36

BOLT, HEX. (6X10)

92101-06010-0A

$1.49

37

CIRCLIP, OUTER (16MM)

94510-16000

$1.49

38

CIRCLIP, OUTER (20MM)

94510-20000

$1.49

39

PLATE B, FIXING

95014-92100

$1.49

40

BEARING, RADIAL BALL (6006)

96100-60060-00

$13.13

41

BEARING, RADIAL BALL (6204)

96100-62040-00

$12.22

42

BEARING, RADIAL BALL (6202Z)

96120-62020-00

$11.02
