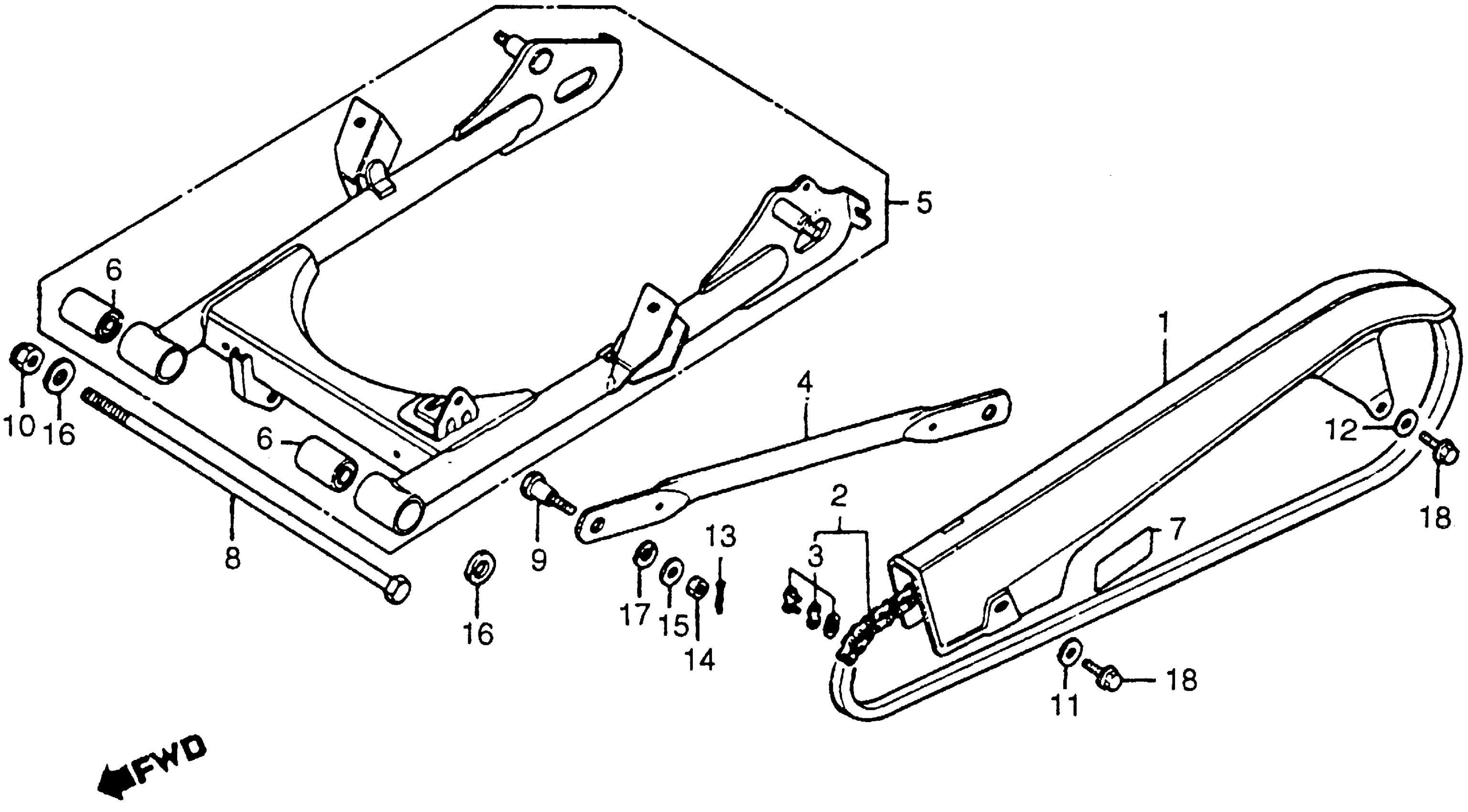

Honda CB125SA (85) MOTORCYCLE, BRA, VIN# 9C2JC130-FR100001 SWINGARM + CHAIN CASE Diagram

CASE, DRIVE CHAIN (NOT AVAILABLE)

40510-397-631

Unavailable

CHAIN, DRIVE (NOT AVAILABLE)

40530-441-971

Unavailable

MASTER LINK (NOT AVAILABLE)

40531-441-971

Unavailable

ARM, RR. BRAKE STOPPER (NOT AVAILABLE)

43431-397-630

Unavailable

SWINGARM ASSY., RR. *NH1* (BLACK)

52100-441-860ZA

Unavailable

BUSH, SWINGARM PIVOT

52147-028-300

$17.90

LABEL, TIRE CAUTION (NOT AVAILABLE)

87505-441-970

Unavailable

BOLT, RR. SWINGARM PIVOT

90121-KE6-830

Unavailable

BOLT, RR. SWINGARM PIVOT This part replaces 90121-107-780.

90121-KE6-830

Unavailable

BOLT, RR. BRAKE STOPPER ARM (NOT AVAILABLE)

90133-331-770

Unavailable

NUT, SELF-LOCK (12MM)

90353-045-000

$5.99

WASHER (6X9)

90513-323-000

$1.84

WASHER, NUMBER BRACKET MOUNTING

90563-045-000

$3.12

PIN, COTTER (2.0X15) (NOT AVAILABLE)

90701-397-910

Unavailable

NUT, HEX. (8MM)

94001-08000-0S

$1.49

WASHER, PLAIN (8MM)

94101-08000

$1.49

WASHER, PLAIN (12MM)

94102-12000

$1.49

WASHER, SPRING (10MM)

94111-10000

$1.49

BOLT, FLANGE (6X12) This part replaces 95700-06012-00.

95701-06012-00

$1.62

BOLT, FLANGE (6X12)

95701-06012-00

$1.62
