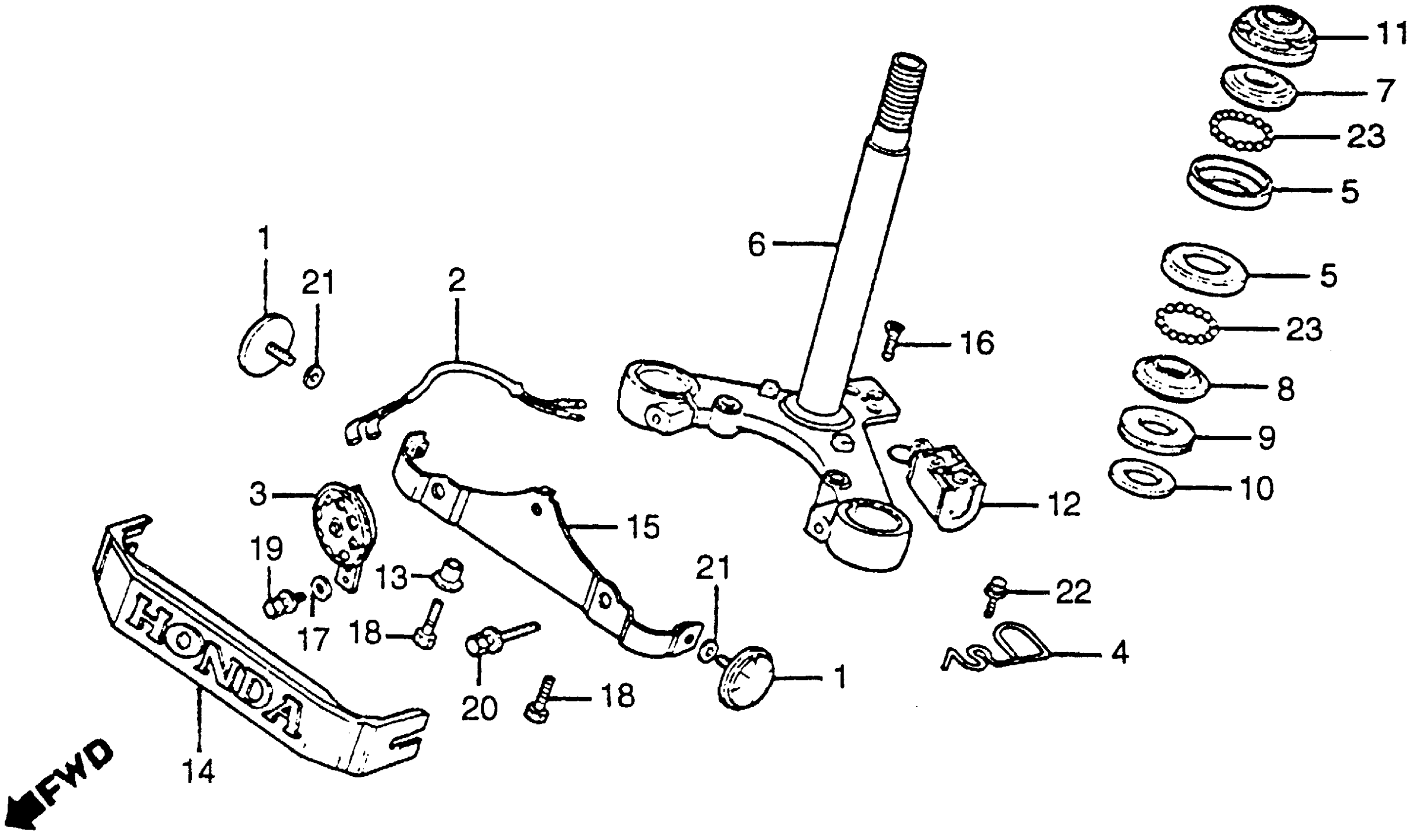

Honda CB125SA (85) MOTORCYCLE, BRA, VIN# 9C2JC130-FR100001 STEERING STEM + HORN Diagram

#

Description
Price

1

REFLECTOR, FR. REFLEX

33741-102-870

$35.84

1

REFLECTOR, FR. REFLEX This part replaces 33741-428-671.

33741-102-870

$35.84

2

SUB-WIRE, HORN

38105-KE6-830

Unavailable

3

HORN

38110-KY0-970

Unavailable

3

HORN This part replaces 38110-397-631.

38110-KY0-970

Unavailable

4

GUIDE, FR. BRAKE CABLE

45465-441-860

Unavailable

5

RACE, STEERING BALL This part replaces 50301-041-000.

50301-041-010

$12.39

5

RACE, STEERING BALL

50301-041-010

$12.39

6

STEM, STEERING *NH1* (BLACK)

53200-KE2-900ZA

Unavailable

7

RACE, STEERING TOP CONE This part replaces 53211-028-000.

53211-028-010

$11.09

7

RACE, STEERING TOP CONE

53211-028-010

$11.09

8

RACE, STEERING CONE (LOWER) This part replaces 53212-030-000.

53212-030-010

$10.73

8

RACE, STEERING CONE (LOWER)

53212-030-010

$10.73

9

DUST SEAL, STEERING HEAD This part replaces 53214-001-010.

53214-GJG-C20

$2.59

10

WASHER, STEERING HEAD DUST SEAL

53215-001-000

$3.08

11

THREAD, HANDLEBAR TOP

53220-397-630

$11.58

12

LOCK, HANDLEBAR

53600-086-007

$47.89

13

COLLAR, FR. EMBLEM SETTING

61101-KE2-900

Unavailable

14

EMBLEM, FR.

87120-397-630

Unavailable

15

STAY, FR.

87130-397-630

Unavailable

16

SCREW, U-LOCK FLAT (6X12)

90164-028-000

$1.80

17

WASHER, WHEEL (6MM)

90563-355-000

$3.13

18

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

18

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

18

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

19

BOLT-WASHER (6X12)

93401-06012-00

$1.55

19

BOLT-WASHER (6X12) This part replaces 93411-06012-00.

93401-06012-00

$1.55

19

BOLT-WASHER (6X12) This part replaces 93481-06012-00.

93401-06012-00

$1.55

20

BOLT-WASHER (8X35) (NOT AVAILABLE)

93481-08035-00

Unavailable

21

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

21

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

21

WASHER, PLAIN (6MM)

94101-06800

$1.49

22

BOLT, FLANGE (6X16) This part replaces 95700-06016-00.

95701-06016-00

$1.55

22

BOLT, FLANGE (6X16)

95701-06016-00

$1.55

23

BALL, STEEL (#6) (3/16)

96211-06000

$1.49
