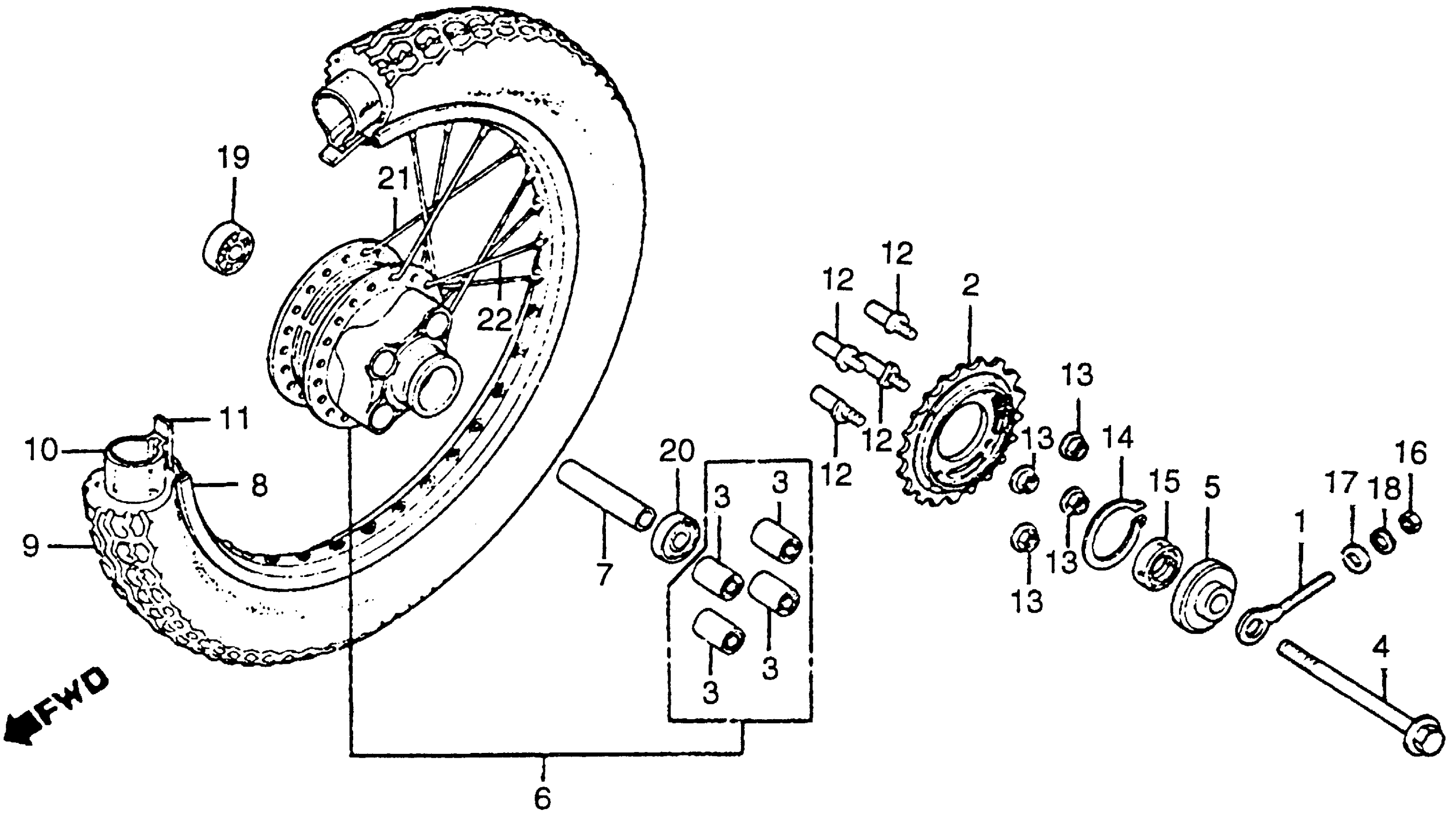

Honda CB125SA (85) MOTORCYCLE, BRA, VIN# 9C2JC130-FR100001 REAR WHEEL Diagram

#

Description
Price

1

ADJUSTER, DRIVE CHAIN This part replaces 40543-384-920.

40543-397-890

$4.24

1

ADJUSTER, DRIVE CHAIN This part replaces 40543-397-000.

40543-397-890

$4.24

1

ADJUSTER, DRIVE CHAIN

40543-397-890

$4.24

2

SPROCKET, FINAL DRIVEN (43T)

41200-399-740

Unavailable

2

SPROCKET, FINAL DRIVEN (43T) This part replaces 41200-441-970.

41200-399-740

Unavailable

3

BUSH, RR. WHEEL DAMPER

41241-222-000

$16.64

3

BUSH, RR. WHEEL DAMPER This part replaces 41241-307-000.

41241-222-000

$16.64

4

AXLE, RR. WHEEL

42301-441-860

Unavailable

5

COLLAR, RR. WHEEL SIDE

42305-397-910

$17.93

6

HUB SUB, RR. WHEEL This part replaces 42610-397-630.

42611-397-630

Unavailable

6

HUB SUB, RR. WHEEL

42611-397-630

Unavailable

7

COLLAR, RR. AXLE DISTANCE

42620-107-010

Unavailable

8

RIM, RR. WHEEL

42701-314-405

Unavailable

8

RIM, RR. WHEEL This part replaces 42701-441-970.

42701-314-405

Unavailable

8

RIM, RR. WHEEL This part replaces 42701-KE2-900.

42701-314-405

Unavailable

9

TIRE, RR. (NOT AVAILABLE)

42711-441-971

Unavailable

10

TUBE (275/300-18) (IRC)

42712-KC6-005

Unavailable

10

TUBE (275/300-18) (IRC) This part replaces 42712-168-004.

42712-KC6-005

Unavailable

11

FLAP, TIRE (1.40/1.60-18) (BS) This part replaces 42713-401-681.

42713-304-003

$6.69

12

BOLT, DRIVEN SPROCKET FIXING

90128-382-670

$6.52

13

NUT, FLANGE (10MM)

90308-382-670

$4.07

14

CIRCLIP (58MM)

90664-216-000

$5.55

15

OIL SEAL (28X42X7) (ARAI) This part replaces 91257-230-000.

91257-230-003

$11.31

15

OIL SEAL (28X42X7) (ARAI)

91257-230-003

$11.31

15

OIL SEAL (28X42X7) (ARAI) This part replaces 91257-230-005.

91257-230-003

$11.31

16

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

16

NUT, HEX. (6MM)

94001-06200-0S

$1.49

17

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

17

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

17

WASHER, PLAIN (6MM)

94101-06800

$1.49

18

WASHER, SPRING (6MM)

94111-06000

$1.49

19

BEARING, RADIAL BALL (6202U)

96140-62020-10

$10.85

20

BEARING, RADIAL BALL (6302UU) This part replaces 96140-63020-10.

96150-63020-10

$15.36

20

BEARING, RADIAL BALL (6302UU)

96150-63020-10

$15.36

21

SPOKE SET B (9X170) This part replaces 97280-52180-P0.

97280-5218010

Unavailable

21

SPOKE SET B (9X170)

97280-5218010

Unavailable

21

SPOKE SET B (9X170)

97280-5218010

Unavailable

21

SPOKE SET B (9X170) This part replaces 97280-52180-R0.

97280-5218010

Unavailable

22

SPOKE SET B (9X169.5) This part replaces 97491-52179-P0.

97491-52179-10

Unavailable

22

SPOKE SET B (9X169.5)

97491-52179-10

Unavailable

22

SPOKE SET B (9X169.5) This part replaces 97491-52179-R0.

97491-52179-10

Unavailable
