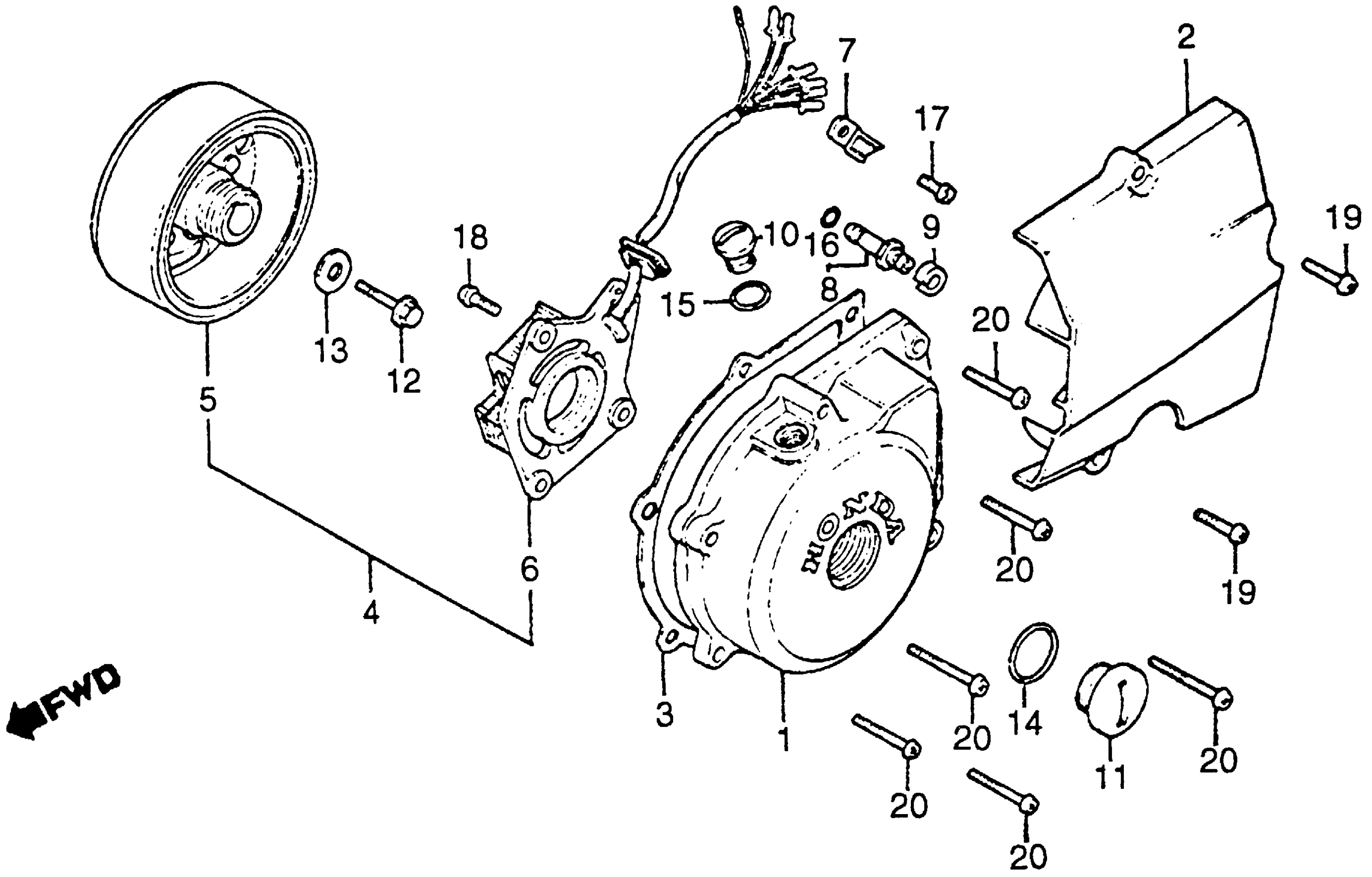

Honda CB125SA (85) MOTORCYCLE, BRA, VIN# 9C2JC130-FR100001 LEFT CRANKCASE COVER + ALTERNATOR Diagram

#

Description
Price

1

COVER, L. CRANKCASE (NOT AVAILABLE)

11341-441-970

Unavailable

2

COVER, L. RR. CRANKCASE (NOT AVAILABLE)

11361-441-970

Unavailable

3

GASKET, L. CRANKCASE COVER

11395-441-405

Unavailable

3

GASKET, L. CRANKCASE COVER This part replaces 11395-441-930.

11395-441-405

Unavailable

4

ALTERNATOR ASSY. (NOT AVAILABLE)

31100-441-971

Unavailable

5

ROTOR (NOT AVAILABLE)

31110-441-971

Unavailable

6

STATOR (NOT AVAILABLE)

31120-441-971

Unavailable

7

CLAMP, WIRE HARNESS This part replaces 32976-107-000.

32976-107-010

$1.80

7

CLAMP, WIRE HARNESS

32976-107-010

$1.80

8

CONTACT ASSY., NEUTRAL SWITCH

35750-001-020

$8.24

9

SPACER, NEUTRAL SWITCH

35752-KCT-690

$2.71

9

SPACER, NEUTRAL SWITCH This part replaces 35752-028-300.

35752-KCT-690

$2.71

10

CAP, ALTERNATOR This part replaces 90084-428-000.

90084-471-000

Unavailable

10

CAP, ALTERNATOR

90084-471-000

Unavailable

11

CAP (30MM) This part replaces 90087-428-000.

90087-KF9-900

Unavailable

12

BOLT, FLANGE (8X33)

90112-KC6-000

Unavailable

13

WASHER, ROTOR SETTING

90426-355-000

$4.03

14

O-RING (27.4X2.4) (ARAI)

91302-567-003

$7.41

14

O-RING (27.4X2.4) (ARAI)

91304-MG7-003

$5.99

15

O-RING (13.8X2.5)

91303-MG7-003

$2.90

15

O-RING (13.8X2.5)

91303-377-000

$3.18

15

O-RING (13.8X2.5) This part replaces 91303-426-000.

91303-MG7-003

$2.90

16

O-RING (7X1.7)

91312-107-000

$2.90

17

SCREW, PAN (6X12)

93500-06012-0A

$0.90

18

SCREW, PAN (6X16) This part replaces 93500-06016.

93500-06016-0A

$1.04

18

SCREW, PAN (6X16)

93500-06016-0A

$1.04

19

SCREW, PAN (6X25) This part replaces 93500-06025.

93500-06025-0A

$1.09

19

SCREW, PAN (6X25)

93500-06025-0A

$1.09

20

SCREW, PAN (6X40)

93500-06040-0A

$1.29
