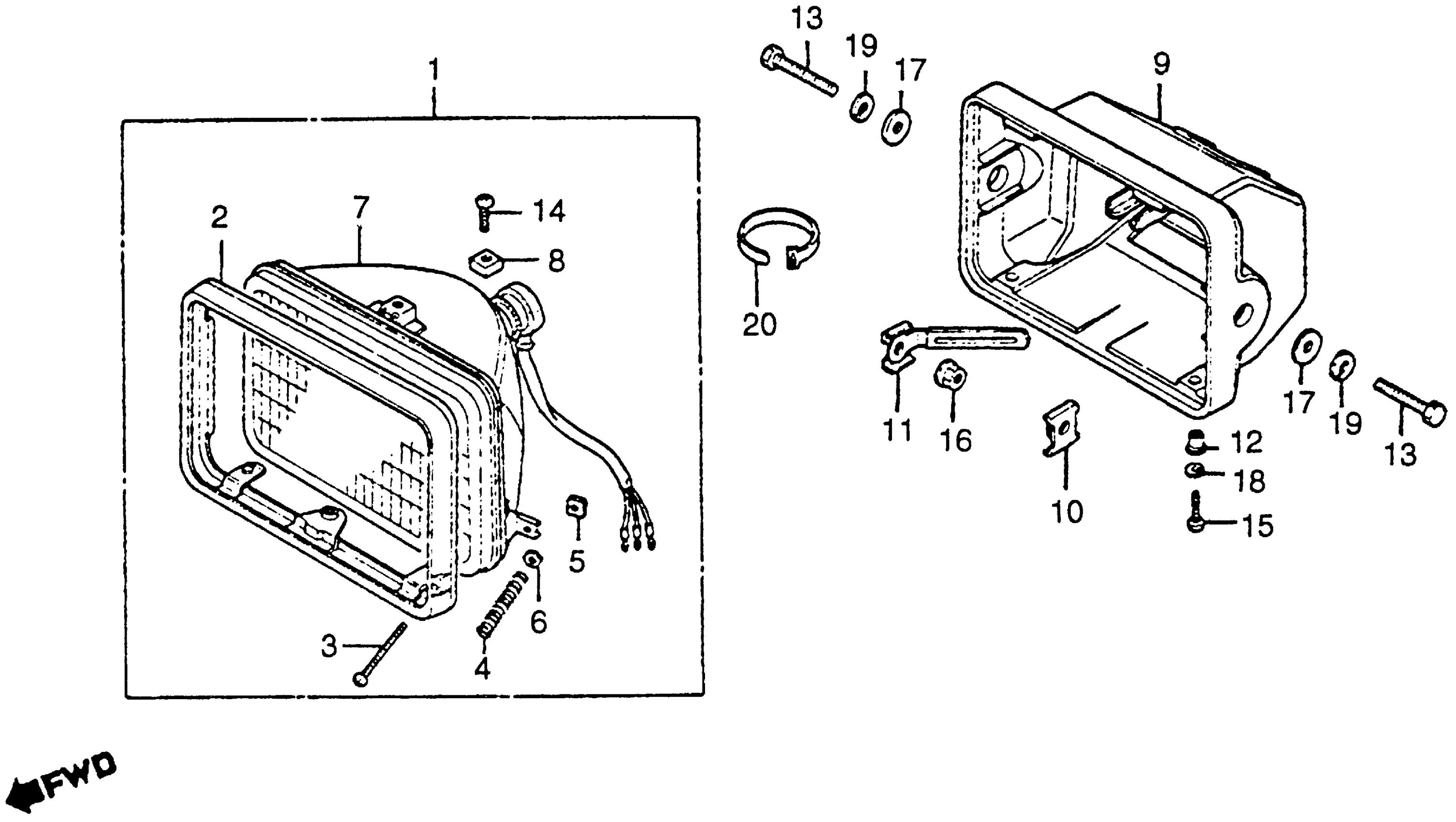

Honda CB125SA (85) MOTORCYCLE, BRA, VIN# 9C2JC130-FR100001 HEADLIGHT 85 Diagram

#

Description
Price

1

HEADLIGHT ASSY. (NOT AVAILABLE)

33100-441-860

Unavailable

2

RIM, HEADLIGHT

33101-471-003

Unavailable

3

SCREW, BEAM ADJUSTING

33103-MW3-610

$7.36

3

SCREW, BEAM ADJUSTING This part replaces 33103-346-670.

33103-MW3-610

$7.36

4

SPRING, HEADLIGHT BEAM ADJUSTING

33107-300-003

$2.80

5

NUT, HEADLIGHT BEAM ADJUSTING

33117-001-023

$2.17

6

WASHER, BEAM ADJUSTING

33119-371-003

$2.58

7

HEADLIGHT UNIT

33120-441-860

Unavailable

8

NUT, UNIT HOLDER

33128-471-003

$1.48

9

CASE, HEADLIGHT

61301-471-000

Unavailable

10

NUT, HEADLIGHT CASE

61303-105-000

$3.55

11

CLIP, WIRE HARNESS

61303-441-860

Unavailable

12

COLLAR, HEADLIGHT SETTING

61304-292-000

$3.22

13

BOLT, HEX. (8X25) This part replaces 92000-08025-0A.

92101-08025-0A

$1.58

13

BOLT, HEX. (8X25)

92101-08025-0A

$1.58

14

SCREW, PAN (5X8)

93500-05008-0H

$0.83

15

SCREW, PAN (5X16)

93500-05016-0B

$1.29

16

NUT, FLANGE (8MM)

94050-08000

$0.86

17

WASHER, PLAIN (8MM)

94102-08000

$0.86

18

WASHER, SPRING (5MM)

94111-05000

$1.03

19

WASHER, SPRING (8MM)

94111-08000

$0.90

20

BAND B1, WIRE

95014-62100

$1.49
