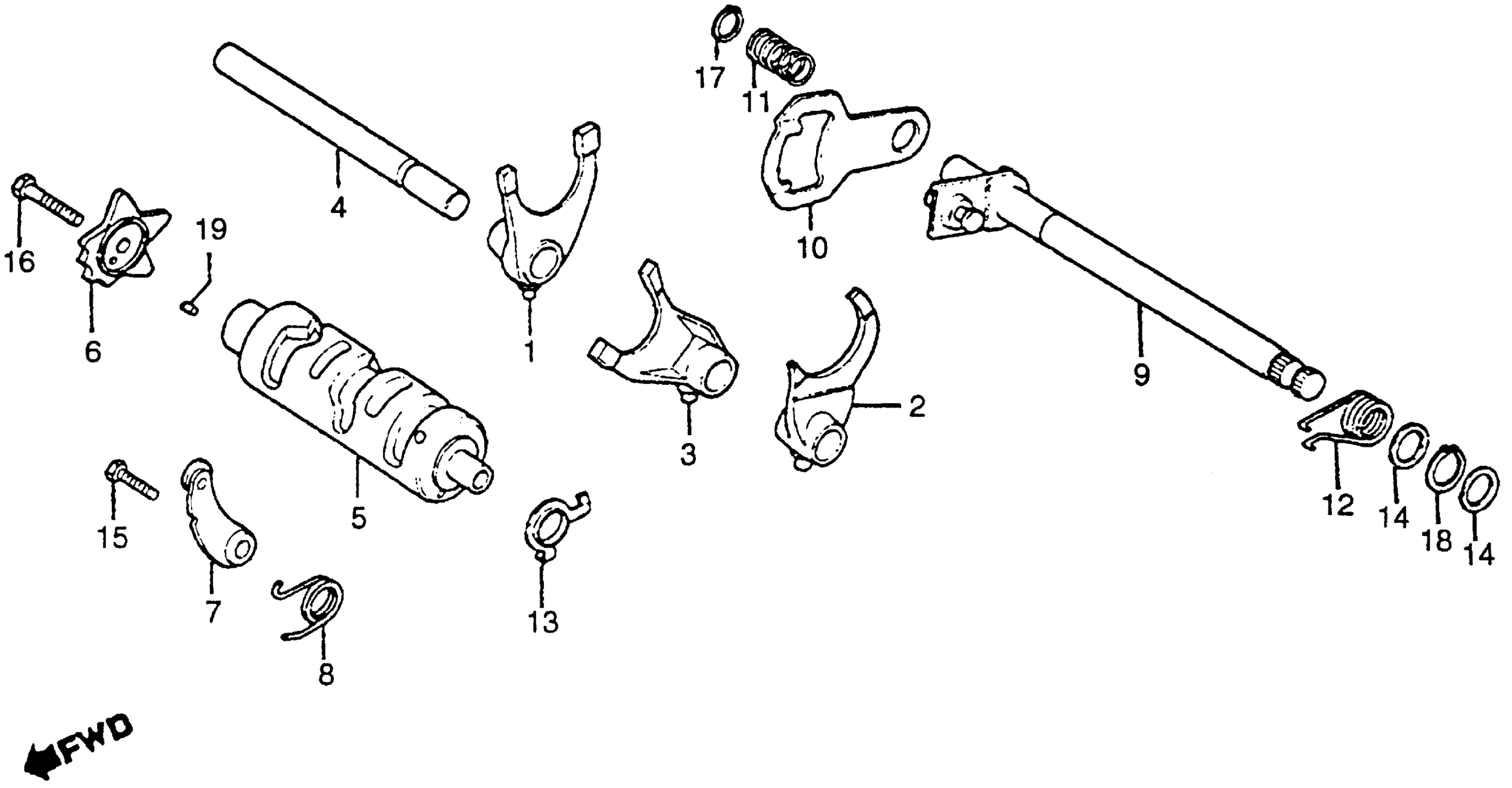

Honda CB125SA (85) MOTORCYCLE, BRA, VIN# 9C2JC130-FR100001 GEARSHIFT DRUM + GEARSHIFT SPINDLE Diagram

FORK, R. GEARSHIFT

24211-107-000

$52.69

FORK, L. GEARSHIFT

24221-427-010

$74.49

FORK, CENTER GEARSHIFT

24231-107-010

Unavailable

SHAFT, GEARSHIFT FORK GUIDE

24241-399-000

$16.72

DRUM, GEARSHIFT

24301-383-000

Unavailable

CAM, GEARSHIFT

24411-KCN-000

$28.74

CAM, GEARSHIFT This part replaces 24411-107-003.

24411-KCN-000

$28.74

CAM, GEARSHIFT This part replaces 24411-107-013.

24411-KCN-000

$28.74

STOPPER, GEARSHIFT DRUM

24430-324-000

Unavailable

SPRING, SHIFT DRUM STOPPER

24435-383-010

Unavailable

SPINDLE, GEARSHIFT

24610-107-760

Unavailable

PLATE, GEARSHIFT

24621-107-760

$13.51

SPRING, GEARSHIFT PLATE

24631-107-000

$2.92

SPRING, GEARSHIFT RETURN

24651-437-000

$8.55

ROTOR, NEUTRAL SWITCH

35753-KG2-951

$4.76

ROTOR, NEUTRAL SWITCH This part replaces 35753-028-601.

35753-KG2-951

$4.76

WASHER, THRUST (14MM)

90451-001-000

$3.67

BOLT, HEX. (6X20) This part replaces 92000-06020.

92101-06020-0A

$1.49

BOLT, HEX. (6X20)

92101-06020-0A

$1.49

BOLT, HEX. (6X25) This part replaces 92000-06025.

92101-06025-0A

$1.62

BOLT, HEX. (6X25)

92101-06025-0A

$1.62

CIRCLIP, OUTER (12MM)

94510-12000

$1.78

CIRCLIP, OUTER (14MM)

94510-14000

$1.49

ROLLER (4X10)

96220-40100

$1.49
