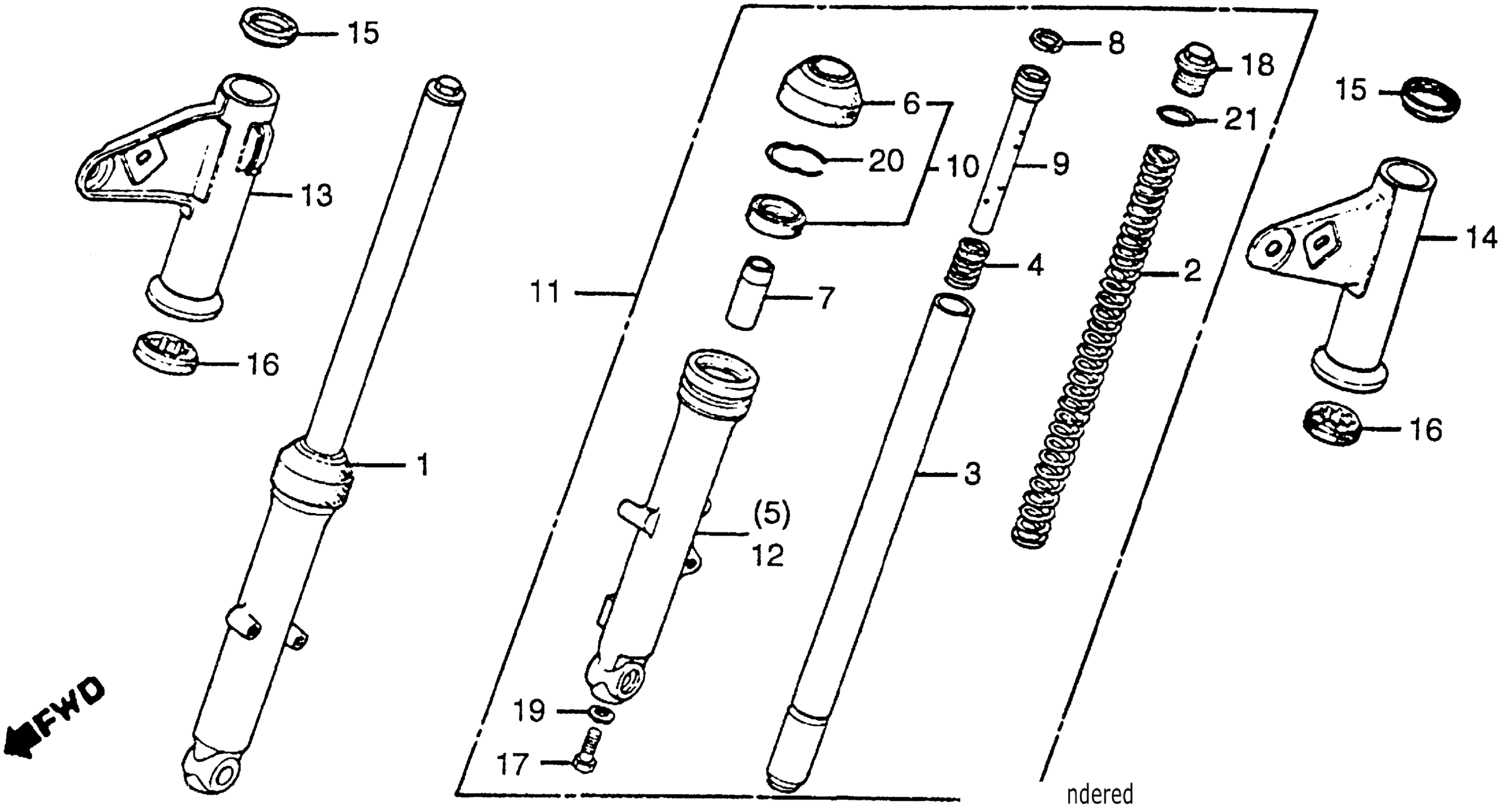

Honda CB125SA (85) MOTORCYCLE, BRA, VIN# 9C2JC130-FR100001 FRONT FORK Diagram

#

Description
Price

1

FORK ASSY., R. FR. *NH105* (MAT BLACK) This part replaces 51400-441-861ZA.

51400-441-862ZB

Unavailable

1

FORK ASSY., R. FR. *NH105* (MAT BLACK)

51400-441-862ZB

Unavailable

2

SPRING, FR. FORK (SHOWA)

51401-383-722

Unavailable

3

PIPE, FR. FORK (NOT AVAILABLE) This part replaces 51410-KE2-900.

51410-383-724

Unavailable

3

PIPE, FR. FORK (NOT AVAILABLE) This part replaces 51410-KE2-901.

51410-383-724

Unavailable

3

PIPE, FR. FORK (NOT AVAILABLE)

51410-383-724

Unavailable

4

SPRING, REBOUND

51412-383-721

$6.57

5

CASE, R. FR. FORK (LOWER) *NH105* (MAT BLACK)

51421-441-861ZA

Unavailable

6

DUST SEAL, FR. FORK

51425-149-841

Unavailable

7

PIECE, OIL LOCK (NOT AVAILABLE)

51432-383-721

Unavailable

8

RING, PISTON

51437-GM0-003

$5.07

8

RING, PISTON This part replaces 51437-383-721.

51437-GM0-003

$5.07

9

PIPE, SEAT (SHOWA) (NOT AVAILABLE)

51470-383-723

Unavailable

10

SEAL SET, FR. FORK

51490-149-840

$32.63

11

FORK ASSY., L. FR. *NH105* (MAT BLACK) (NOT AVAILABLE) This part replaces 51500-441-860ZA.

51500-441-861ZA

Unavailable

11

FORK ASSY., L. FR. *NH105* (MAT BLACK) (NOT AVAILABLE)

51500-441-861ZA

Unavailable

12

CASE, L. FR. FORK (LOWER) *NH105* (MAT BLACK) This part replaces 51521-441-860ZA.

51521-441-861ZA

Unavailable

12

CASE, L. FR. FORK (LOWER) *NH105* (MAT BLACK)

51521-441-861ZA

Unavailable

13

COVER, R. FR. FORK (UPPER)

51602-441-860

Unavailable

14

COVER, L. FR. FORK (UPPER)

51606-441-860

Unavailable

15

MOUNT, FR. FORK (UPPER)

51621-397-630

Unavailable

16

MOUNT, FORK COVER (LOWER)

51622-397-710

Unavailable

17

BOLT, SOCKET (8X27)

90116-383-721

$5.13

18

BOLT, FORK (SHOWA) (NOT AVAILABLE)

90123-383-721

Unavailable

19

WASHER, SPECIAL (8MM)

90544-283-000

$2.87

20

RING, OIL SEAL STOPPER (SHOWA)

90601-383-721

$5.13

21

O-RING (17.8X2.4) (SHOWA)

91256-383-721

$2.30
