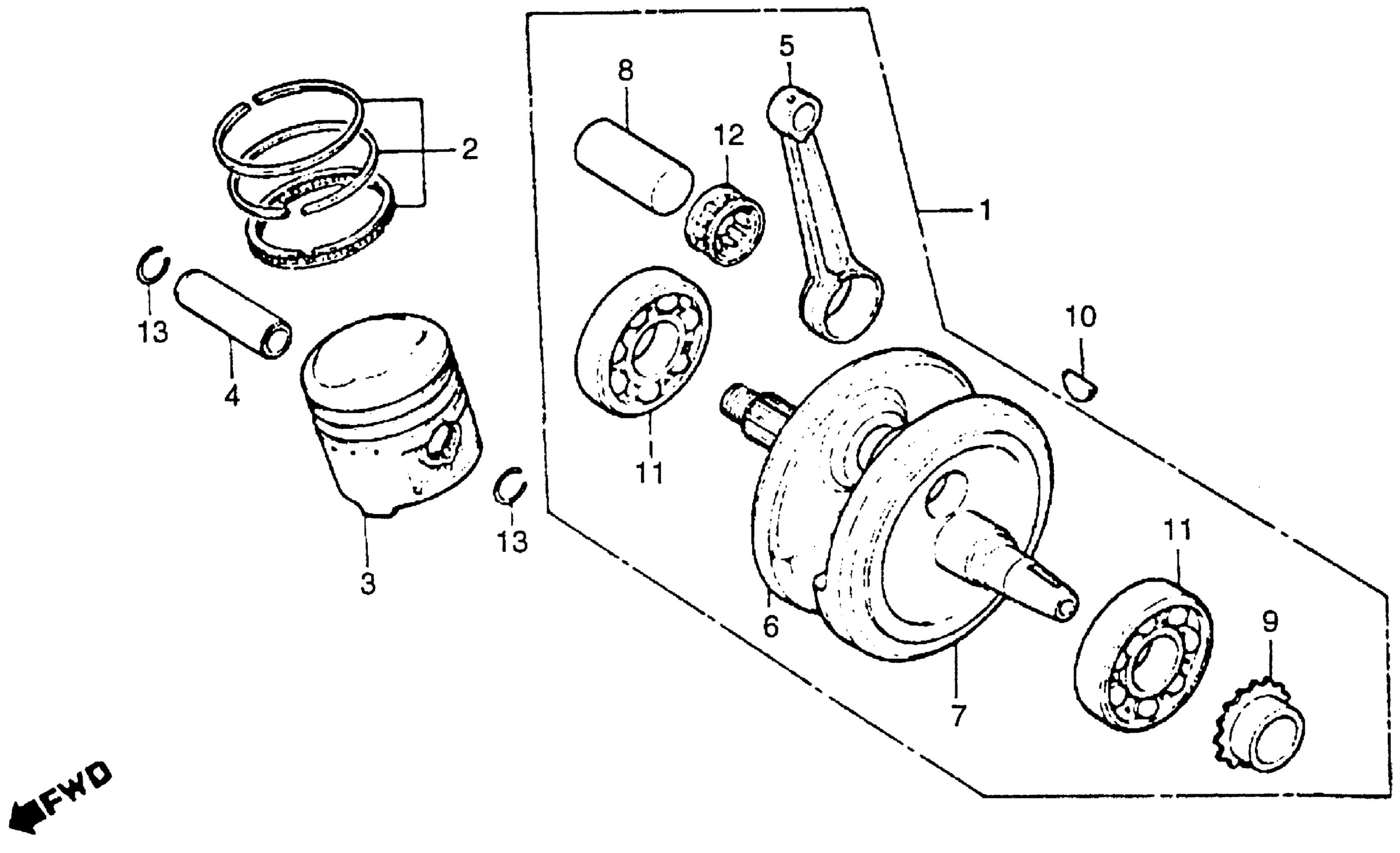

Honda CB125SA (85) MOTORCYCLE, BRA, VIN# 9C2JC130-FR100001 CRANKSHAFT + PISTON Diagram

#

Description
Price

1

CRANKSHAFT

13000-441-930

Unavailable

2

RING SET, PISTON (STD)

13011-440-003

Unavailable

2

RING SET, PISTON (OVER SIZE) (0.25) | (Optional).

13021-440-003

Unavailable

2

RING SET, PISTON (OVER SIZE) (0.50) | (Optional).

13031-440-003

Unavailable

2

RING SET, PISTON (OVER SIZE) (0.75) | (Optional).

13041-440-003

Unavailable

2

RING SET, PISTON (1.00) | (Optional).

13051-440-003

Unavailable

3

PISTON (STD)

13101-441-930

Unavailable

3

PISTON (OVER SIZE) (0.25) | (Optional).

13102-441-930

Unavailable

3

PISTON (OVER SIZE) (0.50) (NOT AVAILABLE) | (Optional).

13103-441-930

Unavailable

3

PISTON (OVER SIZE) (0.75) (NOT AVAILABLE) | (Optional).

13104-441-930

Unavailable

3

PISTON (1.00) (NOT AVAILABLE) | (Optional).

13105-441-930

Unavailable

4

PIN, PISTON

13111-440-000

$24.55

5

ROD, CONNECTING This part replaces 13201-440-300.

13201-440-310

Unavailable

5

ROD, CONNECTING

13201-440-310

Unavailable

6

CRANKSHAFT, R. (NOT AVAILABLE)

13311-441-930

Unavailable

7

CRANKSHAFT, L. (NOT AVAILABLE)

13321-441-930

Unavailable

8

PIN, CRANK

13381-446-770

Unavailable

9

SPROCKET, TIMING (16T) This part replaces 14311-107-000.

14311-958-000

$41.06

9

SPROCKET, TIMING (16T)

14311-958-000

$41.06

10

KEY, WOODRUFF (25X14X4) This part replaces 90701-HB6-000.

90701-HB6-010

$3.78

10

KEY, WOODRUFF (25X14X4)

90701-HB6-010

$3.78

10

KEY, WOODRUFF (25X14X4) This part replaces 90741-003-010.

90701-HB6-010

$3.78

11

BEARING, RADIAL BALL (63/28) This part replaces 91001-KY7-003.

91009-HC0-003

$31.43

11

BEARING, RADIAL BALL (63/28) This part replaces 91001-440-003.

91009-HC0-003

$31.43

11

BEARING, RADIAL BALL (63/28)

91009-HC0-003

$31.43

12

BEARING A, CONNECTING ROD LARGE END (RED)

91002-446-771

$33.59

12

BEARING B, CONNECTING ROD LARGE END (BLUE)

91003-446-771

$33.59

12

BEARING C, CONNECTING ROD LARGE END (WHITE)

91004-446-771

$33.59

13

CLIP, PISTON PIN (15MM)

94601-15000

$1.49
