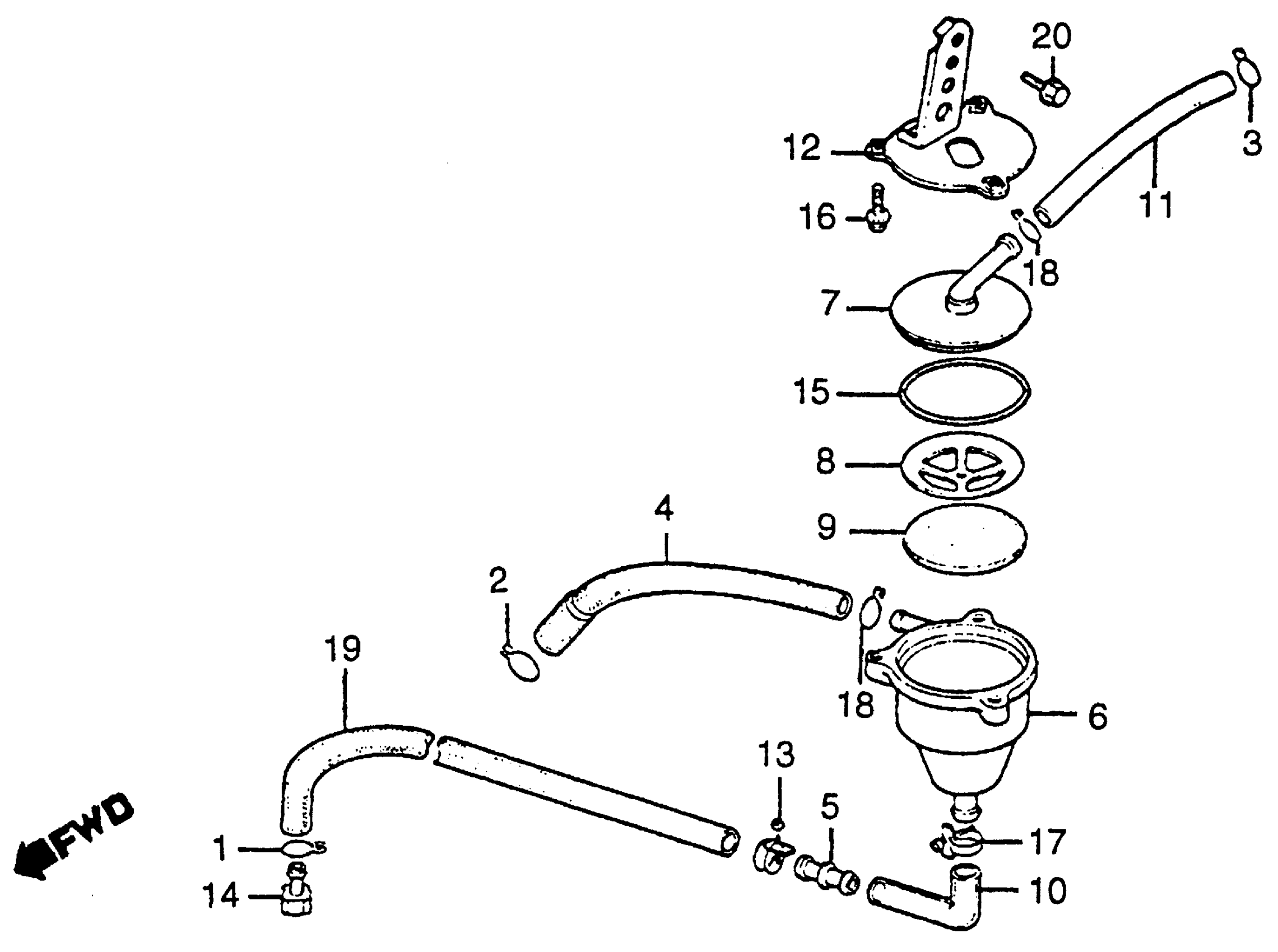

Honda CB125SA (85) MOTORCYCLE, BRA, VIN# 9C2JC130-FR100001 BREATHER SEPARATOR Diagram

#

Description
Price

1

CLIP, OIL DRAIN TUBE

15707-634-000

$5.13

2

CLIP, BREATHER TUBE

15772-292-010

$2.92

3

CLIP, BREATHER TUBE

15772-500-010

$3.90

3

CLIP, BREATHER TUBE This part replaces 15772-500-013.

15772-500-010

$3.90

4

TUBE A, BREATHER (NOT AVAILABLE)

17357-441-970

Unavailable

5

JOINT, BREATHER TUBE

17359-419-670

$1.95

6

BODY, BREATHER SEPARATOR

17361-419-670

Unavailable

7

CAP, BREATHER SEPARATOR

17362-419-670

Unavailable

8

HOLDER, ELEMENT

17363-419-670

Unavailable

9

ELEMENT, CONDENSATION

17364-419-000

Unavailable

10

TUBE, DRAIN

17365-419-000

Unavailable

11

TUBE B, BREATHER (NOT AVAILABLE)

17366-441-970

Unavailable

12

COVER, BREATHER SEPARATOR (NOT AVAILABLE)

17368-441-970

Unavailable

13

CLIP, TUBE (A13.5)

17369-419-670

Unavailable

14

PLUG, BREATHER TUBE

17370-419-700

$3.74

15

O-RING (47X1.9)

91305-419-670

Unavailable

16

SCREW-WASHER (4X16)

93891-04016-07

$1.49

17

CLIP, TUBE (A16)

95002-01160

$4.05

18

CLIP, TUBE (B12.5)

95002-02130

$1.49

19

BULK HOSE, VACUUM (8X1000) (8X390)

95005-80001-20M

$23.91

20

BOLT, FLANGE (6X10) This part replaces 95700-06010-07.

95701-06010-07

$1.62

20

BOLT, FLANGE (6X10)

95701-06010-07

$1.62
