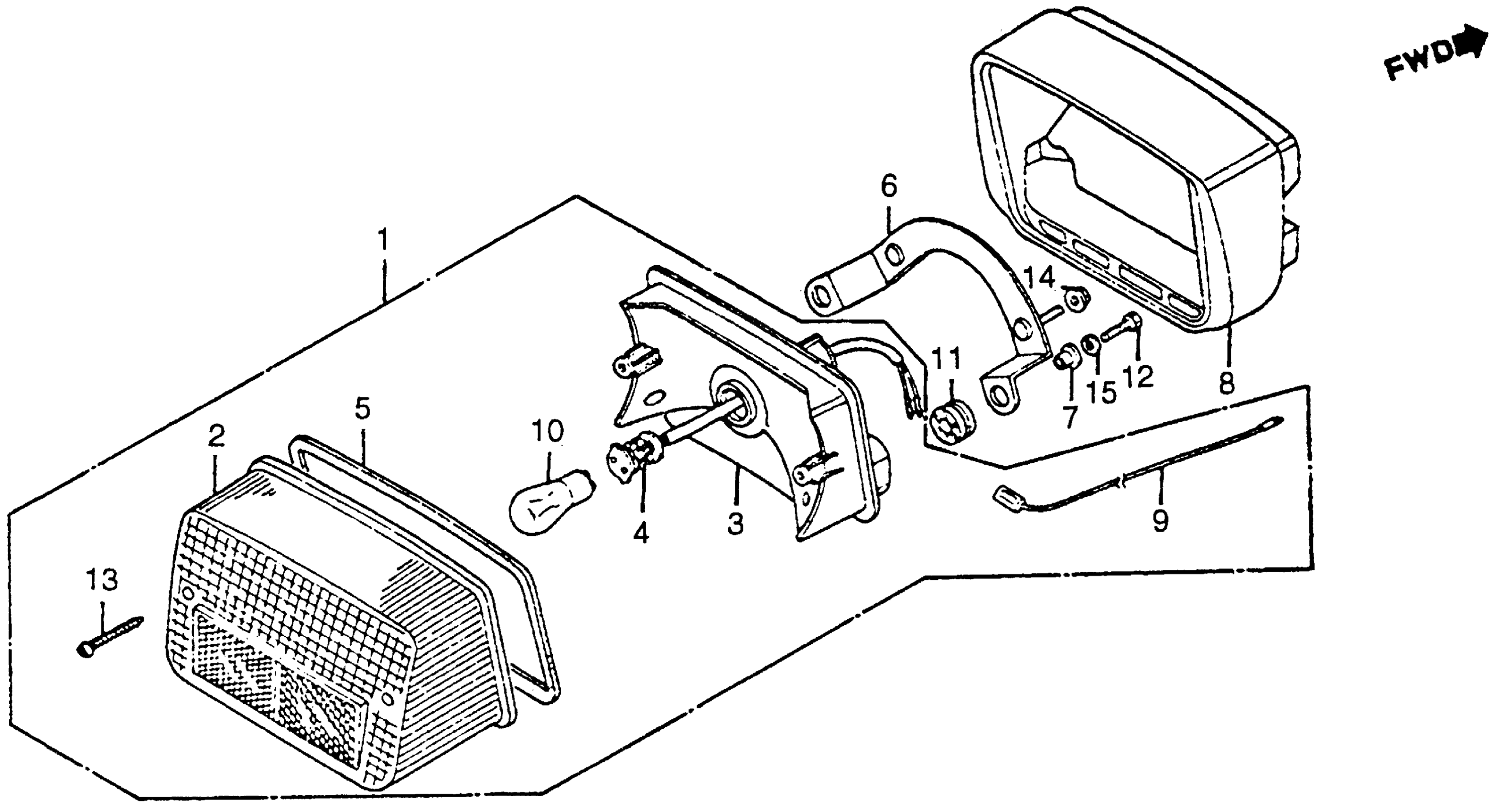

Honda CB125SA (84) MOTORCYCLE, BRA, VIN# 9C2JC130-ER010001 TAILLIGHT Diagram

TAILLIGHT UNIT (STANLEY) (NOT AVAILABLE)

33701-166-671

Unavailable

LENS, TAILLIGHT (NOT AVAILABLE)

33702-166-671

Unavailable

BASE, TAILLIGHT (NOT AVAILABLE)

33703-166-671

Unavailable

WIRE, TAILLIGHT

33705-166-770

Unavailable

GASKET, TAILLIGHT LENS (NOT AVAILABLE)

33709-166-671

Unavailable

STAY, TAILLIGHT (NOT AVAILABLE)

33711-441-970

Unavailable

COLLAR, TAILLIGHT

33712-GC6-000

$2.99

BASE, TAILLIGHT (NOT AVAILABLE)

33712-441-970

Unavailable

WIRE, GROUND (NOT AVAILABLE)

33718-166-003

Unavailable

BULB, TAILLIGHT (12V 32/3CP) (STANLEY)

34906-425-771

$4.40

RUBBER, TAILLIGHT MOUNTING

90851-961-000

$3.85

BOLT, HEX. (5X20) This part replaces 92000-05020-0A.

92101-05020-0A

$1.49

BOLT, HEX. (5X20)

92101-05020-0A

$1.49

BOLT, HEX. (5X20) This part replaces 92301-05020-0A.

92101-05020-0A

$1.49

SCREW, TAPPING (4X30)

93901-34710

$1.49

NUT, FLANGE (6MM)

94050-06000

$1.49

WASHER, SPRING (5MM)

94111-05000

$1.49
