Partiron

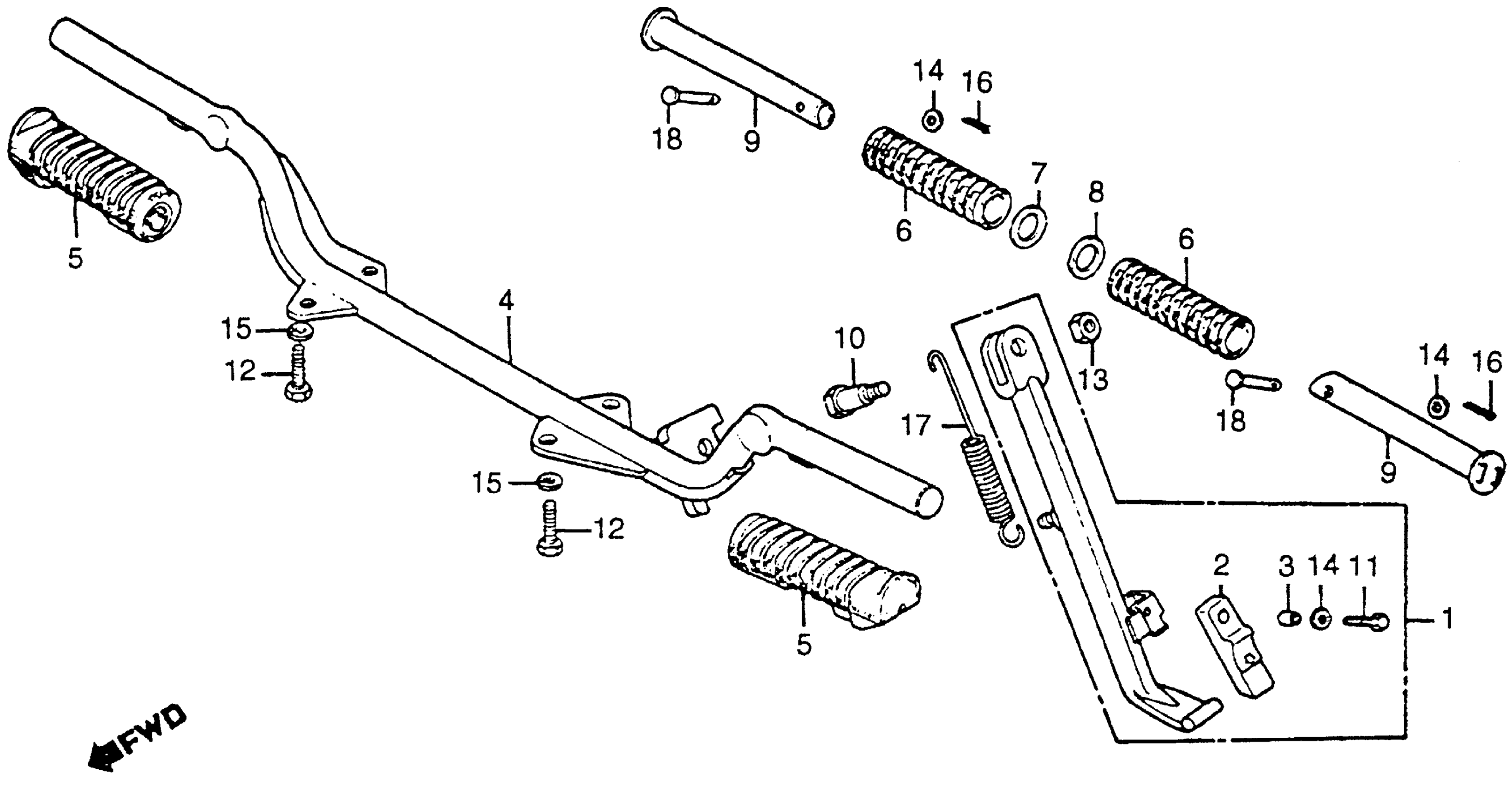

Honda CB125SA (84) MOTORCYCLE, BRA, VIN# 9C2JC130-ER010001 SIDE STAND + FOOTPEGS Diagram

#

Description
Price

1

BAR ASSY., SIDE STAND *NH1* (BLACK) (NOT AVAILABLE) This part replaces 50540-383-870ZA.

50540-KE2-900ZA

Unavailable

2

RUBBER, STAND

50548-324-760

$11.45

3

COLLAR, STAND RUBBER SETTING

50549-356-700

$2.50

4

BAR, FOOTPEG *NH1* (BLACK) (NOT AVAILABLE)

50610-KB5-600

Unavailable

4

BAR, FOOTPEG *NH1* (BLACK) (NOT AVAILABLE) This part replaces 50610-324-760ZA.

50610-KB5-600

Unavailable

4

BAR, FOOTPEG *NH1* (BLACK) (NOT AVAILABLE) This part replaces 50610-439-000ZA.

50610-KB5-600

Unavailable

5

RUBBER, FOOTPEG

50661-383-670

Unavailable

6

RUBBER, PILLION FOOTPEG This part replaces 50710-377-000.

50716-371-660

$13.06

6

RUBBER, PILLION FOOTPEG

50716-371-660

$13.06

7

WASHER, PILLION FOOTPEG (NOT AVAILABLE)

50712-385-000

Unavailable

8

WASHER, PILLION STEP

50712-413-000

$3.31

9

BAR, PILLION STEP (COO) This part replaces 50715-413-000.

50715-413-305

$16.34

10

SCREW, SIDE STAND PIVOT

90108-223-000

$4.89

11

BOLT, HEX. (6X28) This part replaces 92000-06028.

92101-06028-0A

Unavailable

11

BOLT, HEX. (6X28) This part replaces 92000-06028-0A.

92101-06028-0A

Unavailable

11

BOLT, HEX. (6X28) This part replaces 92100-06028.

92101-06028-0A

Unavailable

11

BOLT, HEX. (6X28)

92101-06028-0A

Unavailable

12

BOLT, HEX. (8X20) This part replaces 92000-08020-0A.

92101-08020-0A

Unavailable

12

BOLT, HEX. (8X20)

92101-08020-0A

Unavailable

13

NUT, HEX. (10MM)

94002-10000-0S

$4.20

14

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

Unavailable

14

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

Unavailable

14

WASHER, PLAIN (6MM)

94101-06800

Unavailable

15

WASHER, SPRING (8MM)

94111-08000

Unavailable

16

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$1.01

16

PIN, COTTER (1.6X25)

94201-16250

$1.01

17

SPRING A, SIDE STAND

95014-72102

$2.62

18

PIN A, PILLION STEP

95015-81000

$2.04
