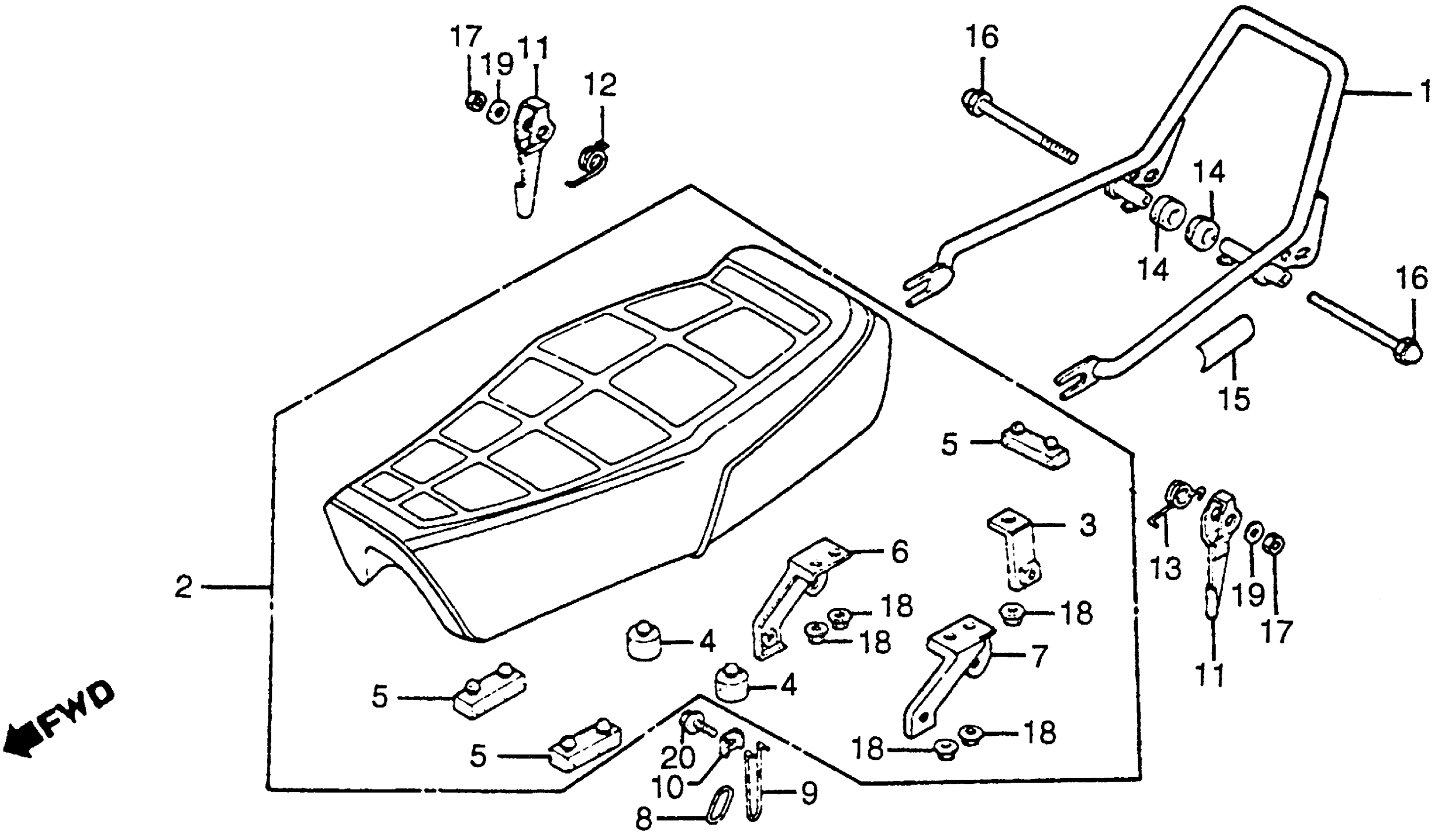

Honda CB125SA (84) MOTORCYCLE, BRA, VIN# 9C2JC130-ER010001 SEAT 84 Diagram

#

Description
Price

1

PIPE, RR. (NOT AVAILABLE)

50410-441-970

Unavailable

2

SEAT ASSY. (NOT AVAILABLE)

77200-441-970

Unavailable

3

STAY, SEAT LOCK

77203-397-630

Unavailable

4

RUBBER A, SEAT CUSHION

77204-128-000

$7.59

5

RUBBER B, SEAT SETTING

77205-286-000

$5.28

6

BRACKET, R. SEAT LOCK (NOT AVAILABLE)

77208-397-630

Unavailable

7

BRACKET, L. SEAT LOCK (NOT AVAILABLE)

77209-397-630

Unavailable

8

RING, SEAT LOCK

77211-397-630

Unavailable

9

ARM, SEAT LOCK (NOT AVAILABLE)

77212-397-630

Unavailable

10

WASHER, SEAT LOCK (NOT AVAILABLE)

77213-413-000

Unavailable

11

LEVER, SEAT LOCK

77221-397-630

Unavailable

12

SPRING, R. SEAT LOCK (NOT AVAILABLE)

77225-413-000

Unavailable

13

SPRING, L. SEAT LOCK (NOT AVAILABLE)

77226-413-000

Unavailable

14

RUBBER, SETTING

80102-397-630

Unavailable

15

LABEL, HELMET HOLDER

87511-323-670

$2.72

16

BOLT, CAP (8X75) This part replaces 92500-08075-0A.

92501-08075-0B

Unavailable

16

BOLT, CAP (8X75) This part replaces 92500-08075-0B.

92501-08075-0B

Unavailable

16

BOLT, CAP (8X75)

92501-08075-0B

Unavailable

17

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

17

NUT, HEX. (6MM)

94001-06200-0S

$1.49

18

NUT, FLANGE (6MM)

94050-06000

$1.49

19

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

19

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

19

WASHER, PLAIN (6MM)

94101-06800

$1.49

20

BOLT, FLANGE (6X12) This part replaces 95700-06012-08.

95701-06012-08

$1.67

20

BOLT, FLANGE (6X12)

95701-06012-08

$1.67
