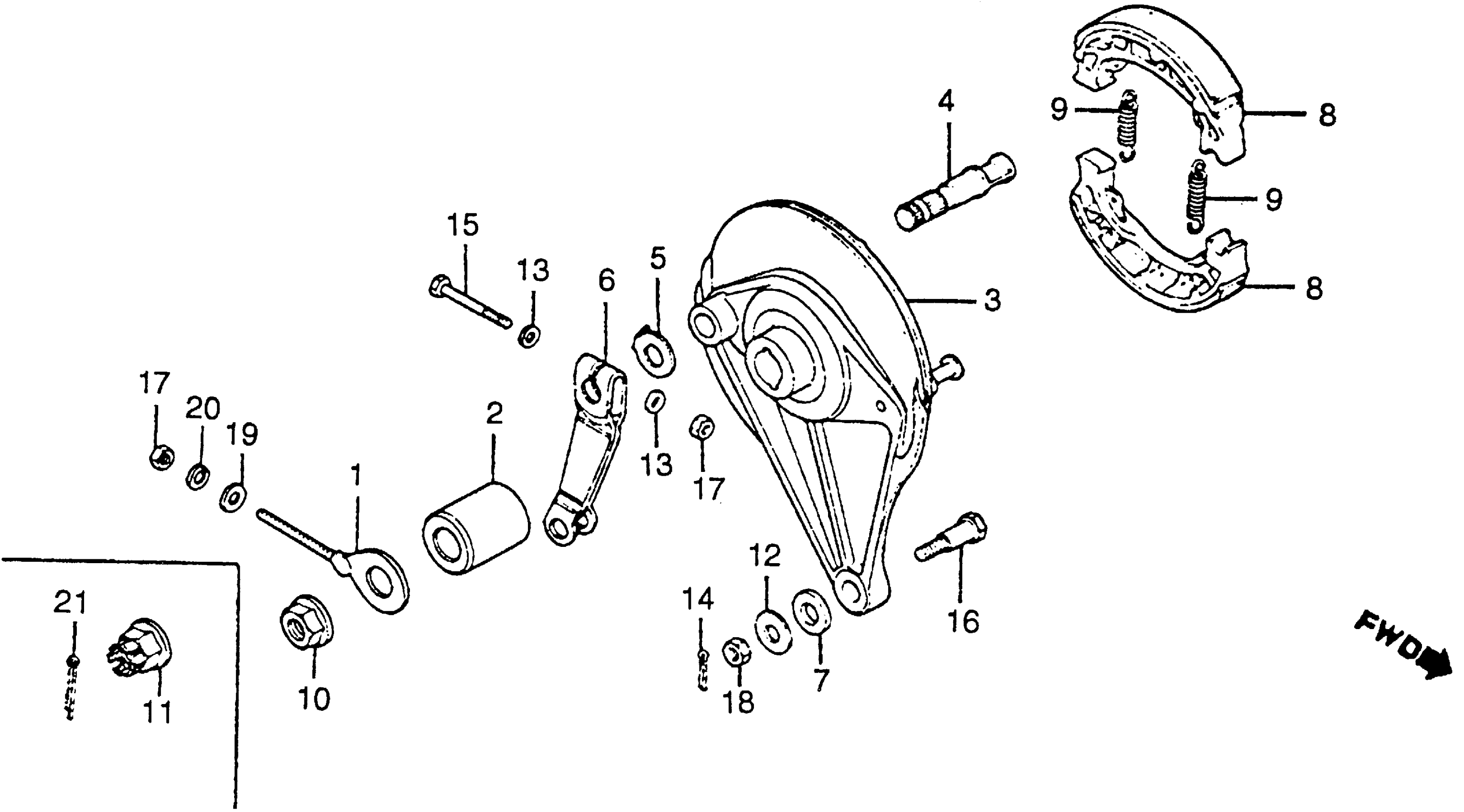

Honda CB125SA (84) MOTORCYCLE, BRA, VIN# 9C2JC130-ER010001 REAR BRAKE PANEL Diagram

#

Description
Price

NI

SHOE SET, BRAKE (JB) This part replaces 06450-096-405.

06450-178-932

$24.89

NI

SHOE SET, BRAKE (JB) This part replaces 451A2-096-305.

06450-178-932

$24.89

1

ADJUSTER, DRIVE CHAIN This part replaces 40543-384-920.

40543-397-890

$4.24

1

ADJUSTER, DRIVE CHAIN This part replaces 40543-397-000.

40543-397-890

$4.24

1

ADJUSTER, DRIVE CHAIN

40543-397-890

$4.24

2

COLLAR, RR. BRAKE PANEL SIDE

42313-397-910

$7.92

3

PANEL, RR. BRAKE (NOT AVAILABLE)

43100-441-970

Unavailable

4

CAM, RR. BRAKE

43141-107-010

Unavailable

5

INDICATOR, RR. BRAKE (NOT AVAILABLE)

43145-096-650

Unavailable

6

ARM, RR. BRAKE

43410-439-000

Unavailable

7

RUBBER, STOPPER ARM CUSHION

43434-286-000

$2.92

8

SHOE SET, BRAKE (JB)

06450-178-932

$24.89

8

SHOE SET, BRAKE (JB) This part replaces 45120-GAG-003.

06450-178-932

$24.89

8

SHOE SET, BRAKE (JB) This part replaces 45120-096-651.

06450-178-932

$24.89

8

SHOE, BRAKE (ASK) (SEE KIT P/N--END OF BLOCK) (NA USE ALT:451A2-096-305)

45120-096-652

Unavailable

9

SPRING, BRAKE SHOE

45133-028-000

$2.03

11

NUT, AXLE (14MM)

90305-401-680

$11.65

12

WASHER A, HANDLE HOLDER SETTING

90524-030-000

$1.49

13

WASHER, RR. BRAKE ARM

90525-001-000

$1.95

14

PIN, COTTER (2.0X15) (NOT AVAILABLE)

90701-397-910

Unavailable

15

BOLT, HEX. (6X35) This part replaces 92000-06036.

92201-06035-0A

$1.75

15

BOLT, HEX. (6X35) This part replaces 92200-06035.

92201-06035-0A

$1.75

15

BOLT, HEX. (6X35)

92201-06035-0A

$1.75

16

BOLT A, BRAKE STOPPER

92811-10000

$2.92

17

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

17

NUT, HEX. (6MM)

94001-06200-0S

$1.49

18

NUT, HEX. (8MM)

94001-08000-0S

$1.49

19

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

19

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

19

WASHER, PLAIN (6MM)

94101-06800

$1.49

20

WASHER, SPRING (6MM)

94111-06000

$1.49

21

PIN, COTTER (3.0X45) This part replaces 94201-30250.

94201-30450

$1.49

21

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$1.49

21

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$1.49

21

PIN, SPLIT (3.0X45)

94201-30450

$1.49
