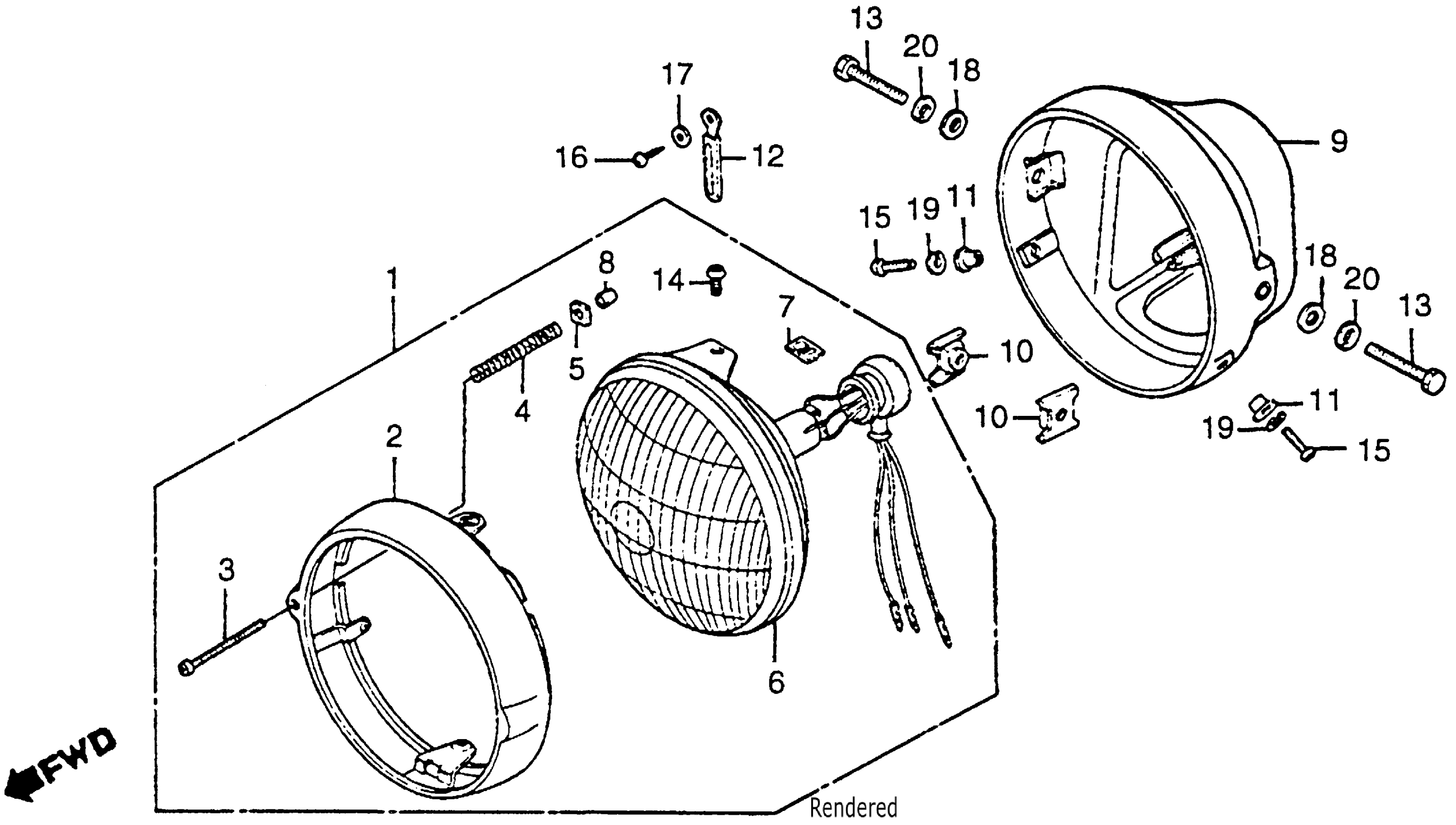

Honda CB125SA (84) MOTORCYCLE, BRA, VIN# 9C2JC130-ER010001 HEADLIGHT 84 Diagram

#

Description
Price

1

HEADLIGHT ASSY. (NOT AVAILABLE)

33100-441-970

Unavailable

2

RIM, HEADLIGHT (NOT AVAILABLE)

33101-329-671

Unavailable

3

SCREW, HEADLIGHT BEAM ADJUSTING

33103-329-003

Unavailable

3

SCREW, HEADLIGHT BEAM ADJUSTING This part replaces 33103-329-671.

33103-329-003

Unavailable

4

SPRING, HEADLIGHT BEAM ADJUSTING

33107-200-023

$2.80

4

SPRING, HEADLIGHT BEAM ADJUSTING This part replaces 33107-283-023.

33107-200-023

$2.80

5

NUT, HEADLIGHT BEAM ADJ.

33117-001-003

Unavailable

6

HEADLIGHT UNIT (STANLEY)

33120-166-671

Unavailable

7

NUT, UNIT HOLDER

33128-200-033

Unavailable

8

COVER, SCREW

33136-426-830

$1.71

9

CASE, HEADLIGHT *NH1* (BLACK)

61301-441-970ZA

Unavailable

10

NUT, HEADLIGHT CASE

61303-105-000

$3.55

11

COLLAR, HEADLIGHT SETTING

61304-292-000

$3.22

12

CLIP (2X60)

91410-679-000

$9.04

13

BOLT, HEX. (8X25) (NOT AVAILABLE)

92200-08025-0A

Unavailable

14

SCREW, PAN (5X8)

93500-05008-0H

$0.83

15

SCREW, PAN (5X16)

93500-05016-0B

$1.29

16

SCREW, TAPPING (4X10)

93903-34220

$0.75

17

WASHER, PLAIN (4MM)

94101-04000

$0.90

18

WASHER, PLAIN (8MM)

94102-08000

$0.86

19

WASHER, SPRING (5MM)

94111-05000

$1.03

20

WASHER, SPRING (8MM)

94111-08000

$0.90
