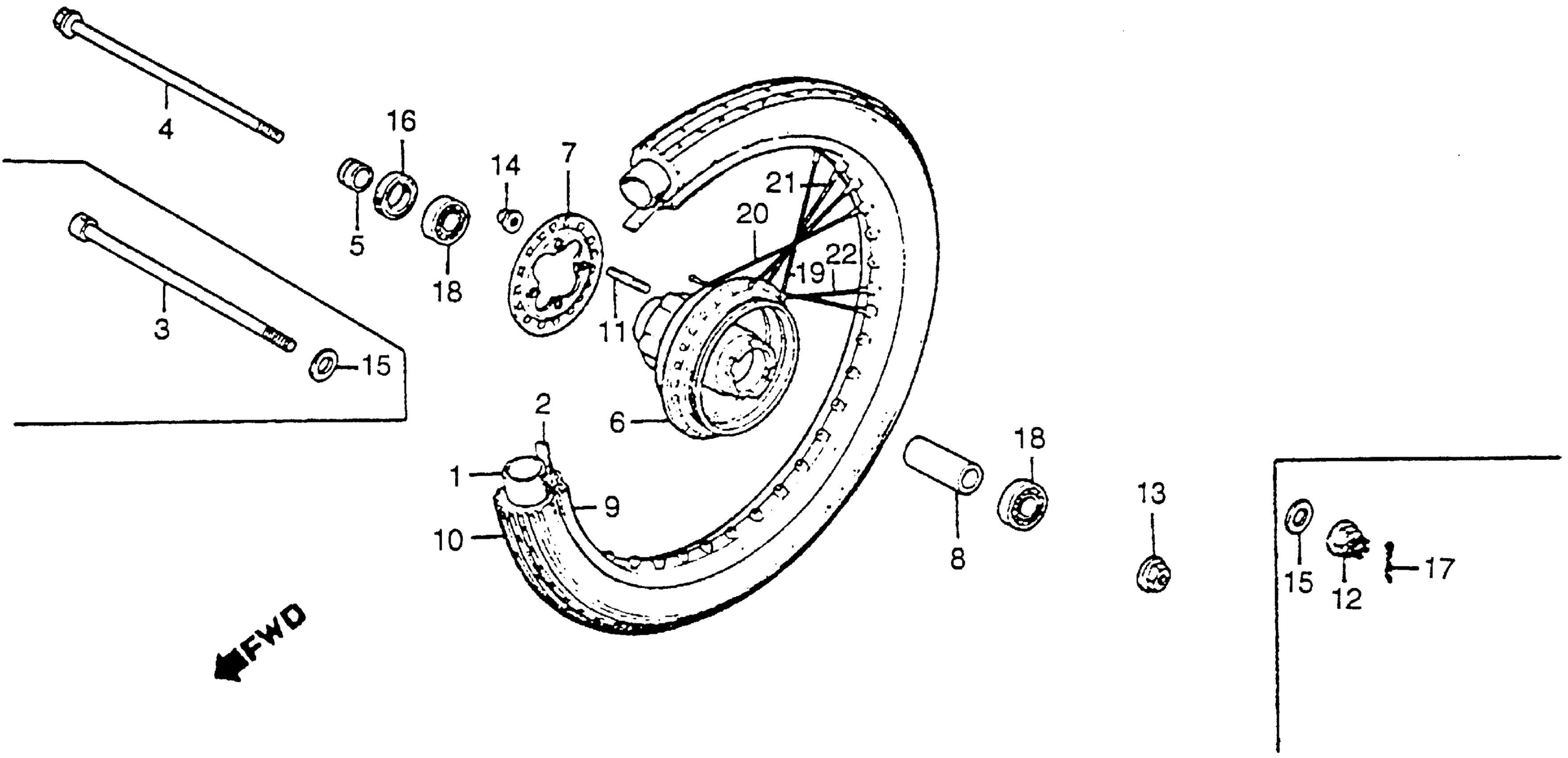

Honda CB125SA (84) MOTORCYCLE, BRA, VIN# 9C2JC130-ER010001 FRONT WHEEL Diagram

#

Description
Price

1

TUBE (275/300-18) (IRC)

42712-KC6-005

Unavailable

1

TUBE (275/300-18) (IRC) This part replaces 42712-168-004.

42712-KC6-005

Unavailable

2

FLAP, TIRE (1.40/1.60-18) (BS) This part replaces 42713-401-681.

42713-304-003

$6.69

3

AXLE, FR. WHEEL (NOT AVAILABLE)

44301-098-010

Unavailable

5

COLLAR, FR. WHEEL SIDE

44311-397-630

Unavailable

6

HUB, FR. WHEEL

44601-397-630

Unavailable

7

FLANGE, RR. SPOKE

44610-397-630

Unavailable

8

COLLAR, FR. AXLE DISTANCE

44620-397-630

Unavailable

9

RIM, FR. WHEEL

44701-441-970

Unavailable

10

TIRE, FR. (NOT AVAILABLE)

44711-441-971

Unavailable

11

BOLT, STUD (6X28)

90135-107-720

$2.56

12

NUT, AXLE (12MM)

90305-169-000

$6.28

14

NUT, DRIVEN SPROCKET (TOKAI)

90352-122-003

$4.39

15

WASHER (12.5MM)

90528-229-000

$2.02

16

OIL SEAL (21X37X7) (ARAI)

90755-229-003

$5.05

16

OIL SEAL (21X37X7) (ARAI) This part replaces 90755-229-005.

90755-229-003

$5.05

17

PIN, COTTER (3.0X45) This part replaces 94201-30250.

94201-30450

$1.49

17

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$1.49

17

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$1.49

17

PIN, SPLIT (3.0X45)

94201-30450

$1.49

18

BEARING, RADIAL BALL (6301Z)

96120-63010-10

$13.20

19

SPOKE SET B (9X162.5) This part replaces 97228-52165-P0.

97228-52165-10

Unavailable

19

SPOKE SET B (9X162.5)

97228-52165-10

Unavailable

20

SPOKE SET B This part replaces 97252-52237-P0.

97252-5223710

Unavailable

20

SPOKE SET B

97252-5223710

Unavailable

21

SPOKE SET B (9X198.5) (NA USE ALT:97326-52237-10)

97326-52237-P0

Unavailable

22

SPOKE SET B (9X162) (NA USE ALT:97715-52164-10) This part replaces 97715-52164-P0.

97715-52164-R0

Unavailable
