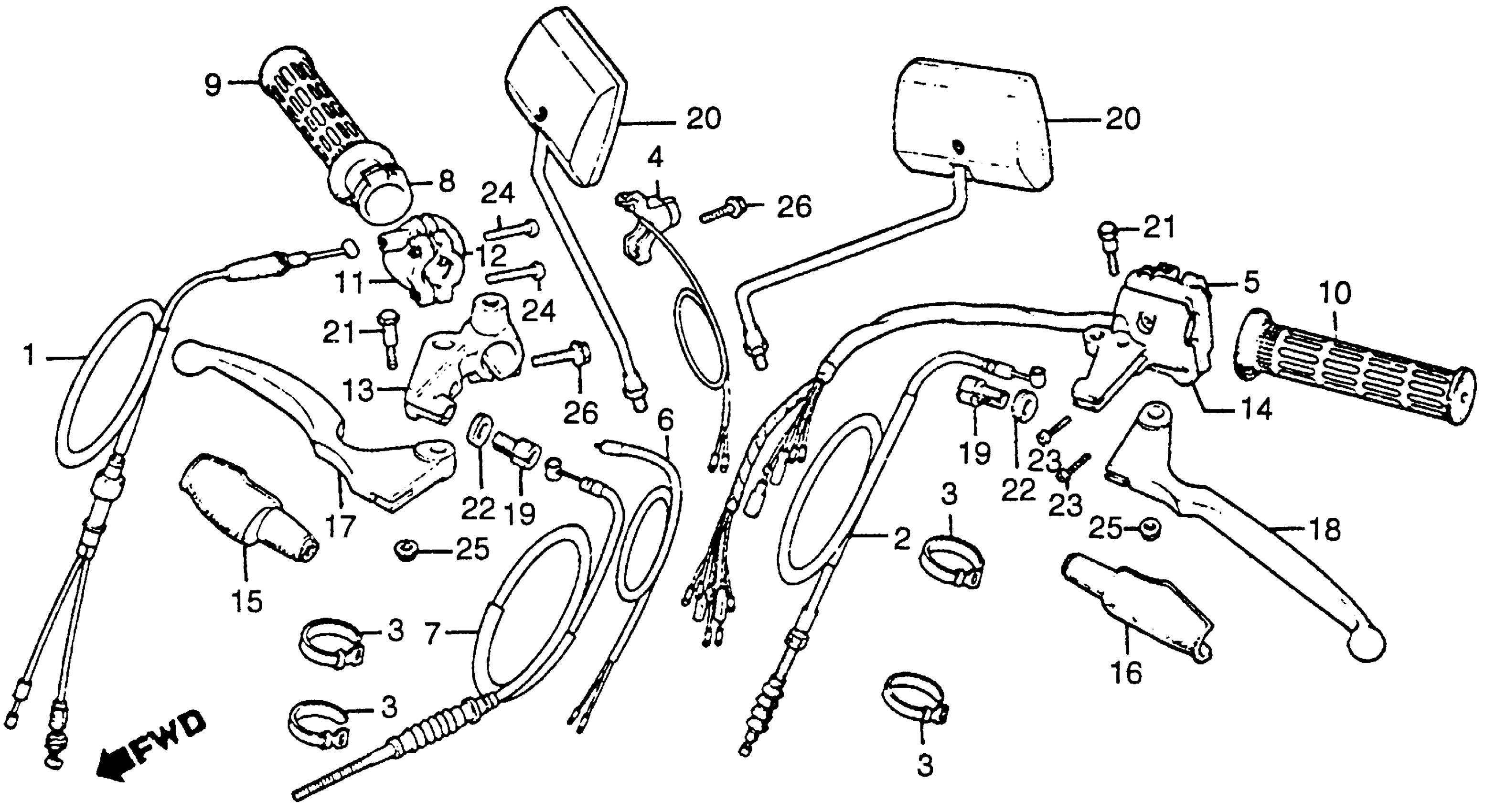

Honda CB125SA (84) MOTORCYCLE, BRA, VIN# 9C2JC130-ER010001 CONTROL LEVERS + SWITCHES + CABLES Diagram

#

Description
Price

1

CABLE, THROTTLE (NOT AVAILABLE)

17910-397-630

Unavailable

2

CABLE, CLUTCH

22870-397-630

Unavailable

3

BAND B1, WIRE

32161-404-000

$2.13

4

SWITCH ASSY., ENGINE STOP (NOT AVAILABLE)

35130-428-673

Unavailable

5

SWITCH, TURN SIGNAL (NOT AVAILABLE)

35210-441-970

Unavailable

6

SWITCH ASSY., FR. STOP This part replaces 35340-187-700.

35340-GAN-620

$17.23

6

SWITCH ASSY., FR. STOP This part replaces 35340-401-681.

35340-GAN-620

$17.23

6

SWITCH ASSY., FR. STOP This part replaces 35340-401-682.

35340-GAN-620

$17.23

6

SWITCH ASSY., FR. STOP This part replaces 35340-437-661.

35340-GAN-620

$17.23

7

CABLE, FR. BRAKE

45450-397-631

Unavailable

7

CABLE, FR. BRAKE This part replaces 45450-441-970.

45450-397-631

Unavailable

8

PIPE, THROTTLE GRIP

53141-362-000

Unavailable

9

GRIP, R. HANDLEBAR

53165-390-780

$9.85

9

GRIP, R. HANDLEBAR This part replaces 53165-397-630.

53165-390-780

$9.85

10

GRIP, L. HANDLEBAR

53166-390-780

$9.48

11

HOUSING A, GRIP This part replaces 53167-397-630.

53167-KRM-860

Unavailable

12

HOUSING, THROTTLE

53168-166-000

$16.44

13

BRACKET, R. HANDLE LEVER

53171-KY0-970

Unavailable

13

BRACKET, R. HANDLE LEVER This part replaces 53171-397-630.

53171-KY0-970

Unavailable

14

BRACKET, L. HANDLE LEVER

53172-KY0-970

Unavailable

14

BRACKET, L. HANDLE LEVER This part replaces 53172-397-630.

53172-KY0-970

Unavailable

15

COVER, R. HANDLEBAR CONTROL LEVER (NOT AVAILABLE)

53173-397-630

Unavailable

16

COVER, L. HANDLEBAR CONTROL LEVER

53174-KE2-770

Unavailable

16

COVER, L. HANDLEBAR CONTROL LEVER This part replaces 53174-397-630.

53174-KE2-770

Unavailable

17

LEVER, R. HANDLEBAR

53175-KCH-900

$12.00

17

LEVER, R. HANDLEBAR This part replaces 53175-KY0-970.

53175-KCH-900

$12.00

17

LEVER, R. HANDLEBAR This part replaces 53175-397-630.

53175-KCH-900

$12.00

18

LEVER, L. HANDLEBAR This part replaces 53178-KCH-900.

53178-KRM-860

Unavailable

18

LEVER, L. HANDLEBAR This part replaces 53178-397-630.

53178-KRM-860

Unavailable

19

BOLT, WIRE ADJUSTING

53192-268-000

$6.08

20

MIRROR ASSY. (NOT AVAILABLE)

88110-441-930

Unavailable

21

BOLT, L. HANDLEBAR CONTROL LEVER PIVOT

90113-422-000

$8.04

22

NUT, FIXING

90321-315-670

$6.80

22

NUT, FIXING This part replaces 90321-968-000.

90321-315-670

$6.80

23

SCREW, PAN (5X14) This part replaces 90197-601-950.

90188-567-000

Unavailable

23

SCREW, PAN (5X14)

93500-05014-0G

$3.32

24

SCREW, PAN (5X22)

93500-05022-0G

$0.84

25

NUT, FLANGE (6MM)

94050-06000

$0.59

26

BOLT, FLANGE (6X28) This part replaces 95700-06028-07.

95701-06028-07

$1.03

26

BOLT, FLANGE (6X28)

95701-06028-07

$1.03
