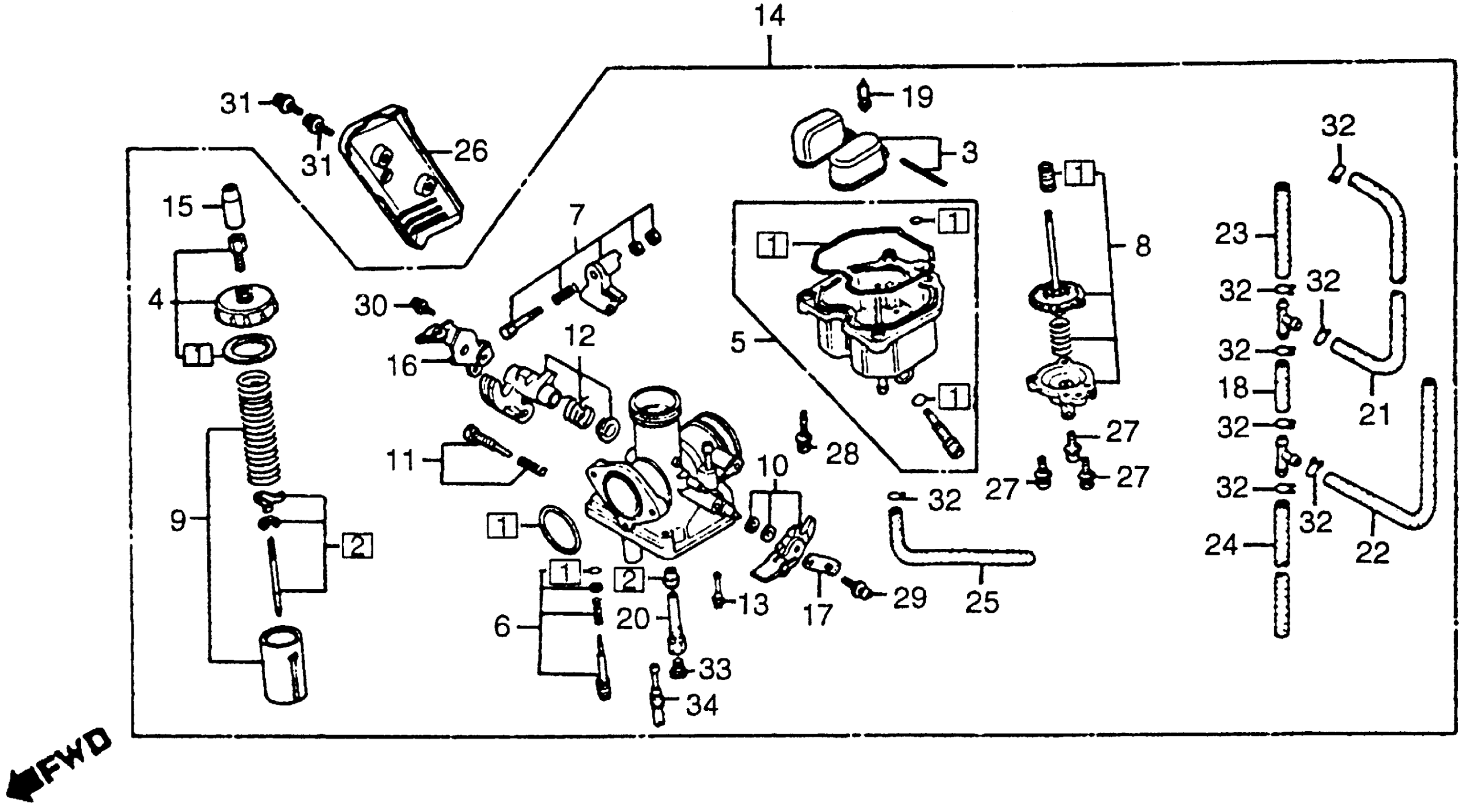

Honda CB125SA (84) MOTORCYCLE, BRA, VIN# 9C2JC130-ER010001 CARBURETOR Diagram

#

Description
Price

1

GASKET SET

16010-KEH-900

Unavailable

1

GASKET SET This part replaces 16010-440-911.

16010-KEH-900

Unavailable

2

NEEDLE SET, JET

16012-441-971

Unavailable

3

FLOAT SET

16013-439-921

$76.36

4

TOP SET

16014-440-912

Unavailable

5

CHAMBER SET, FLOAT

16015-397-691

Unavailable

6

SCREW SET A

16016-KC2-970

$25.35

6

SCREW SET A This part replaces 16016-383-871.

16016-KC2-970

$25.35

6

SCREW SET A This part replaces 16016-413-751.

16016-KC2-970

$25.35

7

ARM SET, LINK This part replaces 16018-397-692.

16018-KCH-850

Unavailable

8

DIAPHRAGM SET, PUMP

16021-KC5-004

Unavailable

8

DIAPHRAGM SET, PUMP This part replaces 16021-397-691.

16021-KC5-004

Unavailable

9

VALVE SET,THROTT. This part replaces 16022-KN6-961.

16022-KEG-900

Unavailable

9

VALVE SET,THROTT. This part replaces 16022-437-671.

16022-KEG-900

Unavailable

10

LEVER SET, CHOKE

16025-440-004

Unavailable

11

SCREW SET B

16028-KB1-D11

$5.98

11

SCREW SET B This part replaces 16028-402-004.

16028-KB1-D11

$5.98

12

ARM SET B, LINK

16031-397-693

Unavailable

13

VALVE SET, CHECK

16047-KC5-004

Unavailable

13

VALVE SET, CHECK This part replaces 16047-397-691.

16047-KC5-004

Unavailable

14

CARBURETOR ASSY. (NOT AVAILABLE) This part replaces 16100-441-971.

16100-441-972

Unavailable

15

CAP, CABLE SEALING This part replaces 16118-439-921.

16148-KB1-921

$17.51

15

CAP, CABLE SEALING

16148-KB1-921

$17.51

16

PLATE, STAY

16119-440-004

$9.75

17

PLATE, STAY

16119-441-691

Unavailable

19

VALVE, FLOAT

16155-397-971

$41.45

20

HOLDER, NEEDLE JET (NOT AVAILABLE)

16165-441-931

Unavailable

26

COVER, CARBURETOR

16305-397-630

Unavailable

27

SCREW-WASHER (4X12)

93892-04012-08

$1.49

28

SCREW-WASHER (4X16)

93892-04016-08

$1.49

29

SCREW-WASHER (5X12)

93892-05012-08

$1.49

30

SCREW-WASHER (5X14)

93892-05014-08

$1.49

31

SCREW-WASHER (4X8)

93893-04008-07

$1.49

31

SCREW-WASHER (4X8) This part replaces 93893-04008-17.

93893-04008-07

$1.49

32

CLIP, TUBE (B6.5)

95002-02650

$1.49

33

JET, MAIN (#105)

99101-GHB-1050

$6.40

33

JET, MAIN (#105) This part replaces 99101-393-1050.

99101-GHB-1050

$6.40

34

JET, SLOW (#38)

99103-MY0-0380

$20.38

34

JET, SLOW (#38) This part replaces 99103-427-0380.

99103-MY0-0380

$20.38
