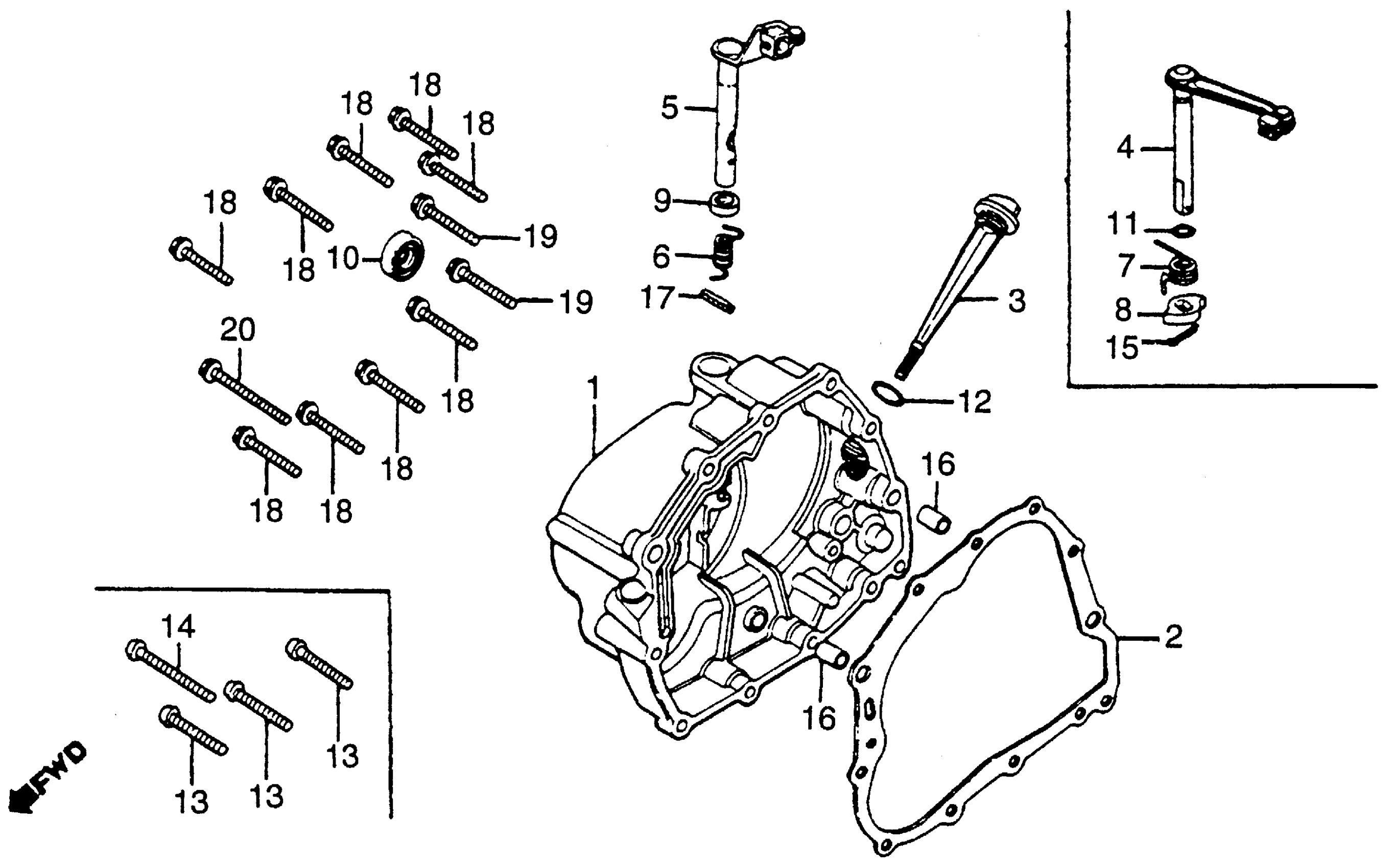

Honda CB125SA (82) MOTORCYCLE, JPN, VIN# JH2JC040-CK800002 TO JH2JC040-CK803032 RIGHT CRANKCASE COVER Diagram

#

Description
Price

1

COVER, R. CRANKCASE

11330-437-671

Unavailable

2

GASKET, R. COVER This part replaces 11393-KT0-710.

11393-KVC-902

$15.56

2

GASKET, R. COVER This part replaces 11393-437-000.

11393-KVC-902

$15.56

2

GASKET, R. COVER This part replaces 11393-437-010.

11393-KVC-902

$15.56

2

GASKET, R. COVER This part replaces 11393-437-306.

11393-KVC-902

$15.56

3

DIPSTICK, OIL

15650-MC8-000

Unavailable

3

DIPSTICK, OIL This part replaces 15650-383-000.

15650-MC8-000

Unavailable

5

LEVER, CLUTCH

22810-437-000

Unavailable

6

SPRING, CLUTCH LEVER

22815-428-000

$3.28

9

OIL SEAL (12X22X5) This part replaces 91201-148-003.

91201-965-000

$4.06

9

OIL SEAL (12X22X5) This part replaces 91201-148-005.

91201-965-000

$4.06

9

OIL SEAL (12X22X5)

91201-965-000

$4.06

10

OIL SEAL (16X28X7) (ARAI)

91204-259-003

$5.60

10

OIL SEAL (16X28X7) This part replaces 91204-259-005.

91204-259-003

$5.60

10

OIL SEAL (16X28X7) This part replaces 91205-360-000.

91204-259-003

$5.60

12

O-RING (18X3) (ARAI)

91307-KF0-003

$2.92

12

O-RING (18X3)

91307-035-000

$2.92

16

PIN, DOWEL (8X14)

94301-08140

$2.25

17

PIN, SPRING (3X10)

94305-30102

$1.74

18

BOLT, FLANGE (6X25)

96000-06025-00

$2.00

18

BOLT, FLANGE (6X25)

96001-06025-00

$2.00

19

BOLT, FLANGE (6X35) This part replaces 96000-06035-00.

96001-06035-00

$1.49

19

BOLT, FLANGE (6X35)

96001-06035-00

$1.49

20

BOLT, FLANGE (6X50) This part replaces 96000-06050-00.

96001-06050-00

$2.16

20

BOLT, FLANGE (6X50)

96001-06050-00

$2.16
