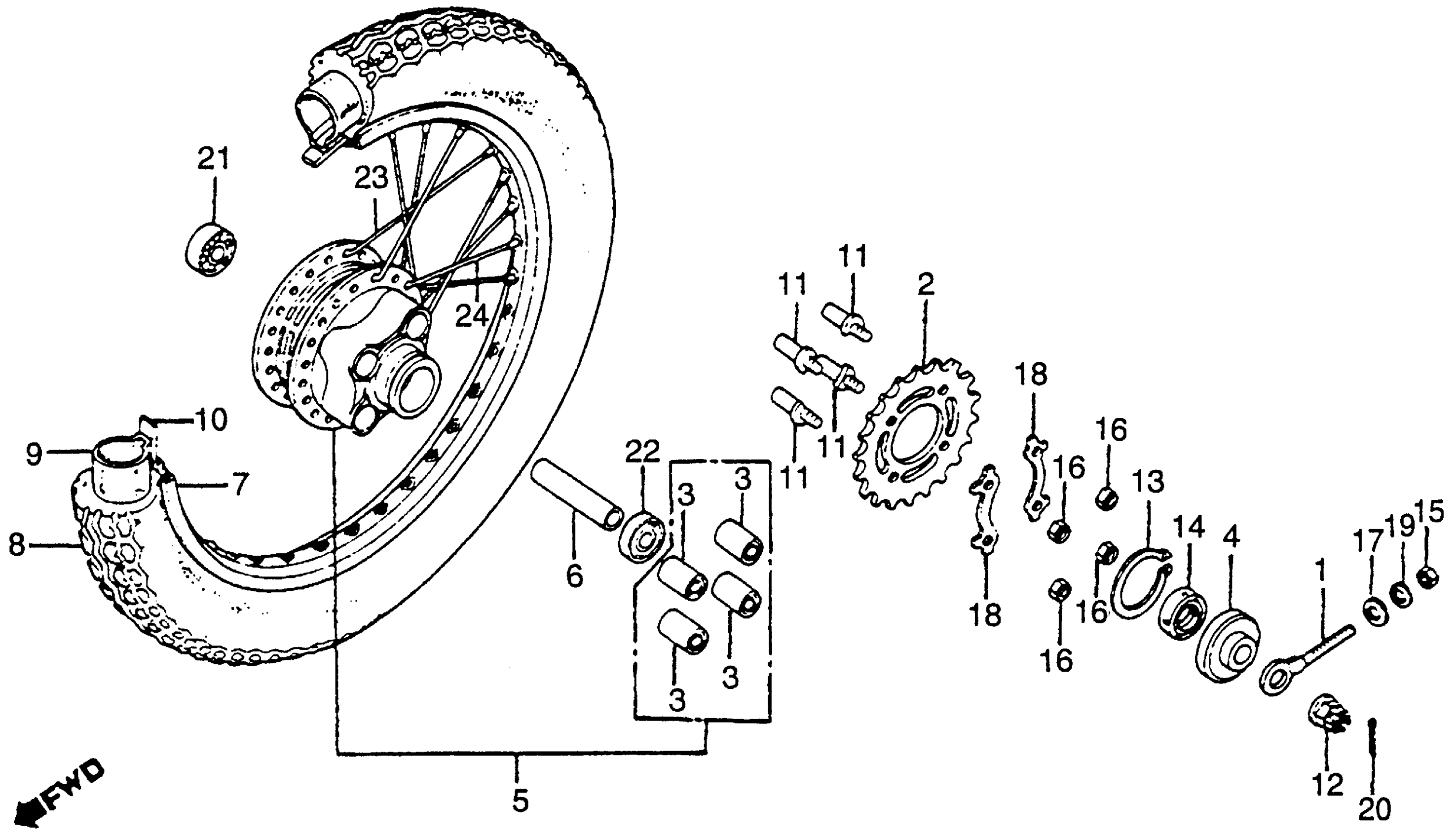

Honda CB125SA (82) MOTORCYCLE, JPN, VIN# JH2JC040-CK800002 TO JH2JC040-CK803032 REAR WHEEL Diagram

#

Description
Price

1

ADJUSTER, DRIVE CHAIN This part replaces 40543-384-920.

40543-397-890

$4.24

1

ADJUSTER, DRIVE CHAIN This part replaces 40543-397-000.

40543-397-890

$4.24

1

ADJUSTER, DRIVE CHAIN

40543-397-890

$4.24

2

SPROCKET, FINAL DRIVEN (35T) (NOT AVAILABLE)

41201-383-670

Unavailable

3

BUSH, RR. WHEEL DAMPER

41241-222-000

$16.64

4

COLLAR, RR. WHEEL SIDE

42304-107-000

Unavailable

5

HUB, RR. WHEEL (NOT AVAILABLE)

42610-383-305

Unavailable

6

COLLAR, RR. AXLE DISTANCE

42620-107-010

Unavailable

7

RIM, RR. (1.60X17) This part replaces 42701-383-701.

42701-383-702

Unavailable

8

TIRE, RR. (3.00-17) (BS) (NOT AVAILABLE) This part replaces 42711-108-671.

42711-383-671

Unavailable

8

TIRE, RR. (3.00-17) (BS) (NOT AVAILABLE) This part replaces 42711-108-672.

42711-383-671

Unavailable

8

TIRE, RR. (3.00-17) (BS) (NOT AVAILABLE)

42711-383-671

Unavailable

8

TIRE, RR. (3.00-17) (NITTO)

42711-383-672

Unavailable

8

TIRE, RR. (3.00-17) (BS)

42711-383-831

Unavailable

9

TUBE, TIRE (2.75-17) (INOUE) This part replaces 0Y400-03310.

42712-102-761

Unavailable

9

TUBE, TIRE (2.75-17) (INOUE) This part replaces 08400-03310.

42712-102-761

Unavailable

9

TUBE, TIRE (2.75-17) (INOUE)

42712-102-761

Unavailable

9

TUBE, TIRE (2.75-17) (INOUE) This part replaces 42712-303-003.

42712-102-761

Unavailable

9

TUBE, TIRE (2.75-17) (INOUE) This part replaces 44712-303-003.

42712-102-761

Unavailable

10

FLAP, TIRE (1.60-17) (BS)

44713-200-003

Unavailable

11

BOLT, DRIVEN SPROCKET FIXING

90128-216-000

$5.66

12

NUT, AXLE (14MM)

90305-401-680

$11.65

13

CIRCLIP (58MM)

90664-216-000

$5.55

14

OIL SEAL (28X42X7) (ARAI)

91257-230-003

$11.31

14

OIL SEAL (28X42X7) (ARAI) This part replaces 91257-230-000.

91257-230-003

$11.31

14

OIL SEAL (28X42X7) (ARAI) This part replaces 91257-230-005.

91257-230-003

$11.31

15

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

15

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

15

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

15

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

15

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

15

NUT, HEX. (6MM)

94001-06200-0S

$1.49

15

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

16

NUT, HEX. (8MM)

94031-08000

$1.49

17

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

17

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

17

WASHER, PLAIN (6MM)

94101-06800

$1.49

18

WASHER A3, TONGUED

94108-13000

$1.49

19

WASHER, SPRING (6MM)

94111-06000

$1.49

20

PIN, COTTER (3.0X45) This part replaces 94201-30250.

94201-30450

$1.49

20

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$1.49

20

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$1.49

20

PIN, SPLIT (3.0X45)

94201-30450

$1.49

21

BEARING, RADIAL BALL (6202U)

96140-62020

$13.60

22

BEARING, RADIAL BALL (6302U)

96140-63020

$16.99

23

SPOKE SET BS (9X158.5) (INSIDE)

97310-59157-P0

Unavailable

24

SPOKE SET BS (9X158) (OUTSIDE)

97518-59156-P0

Unavailable
