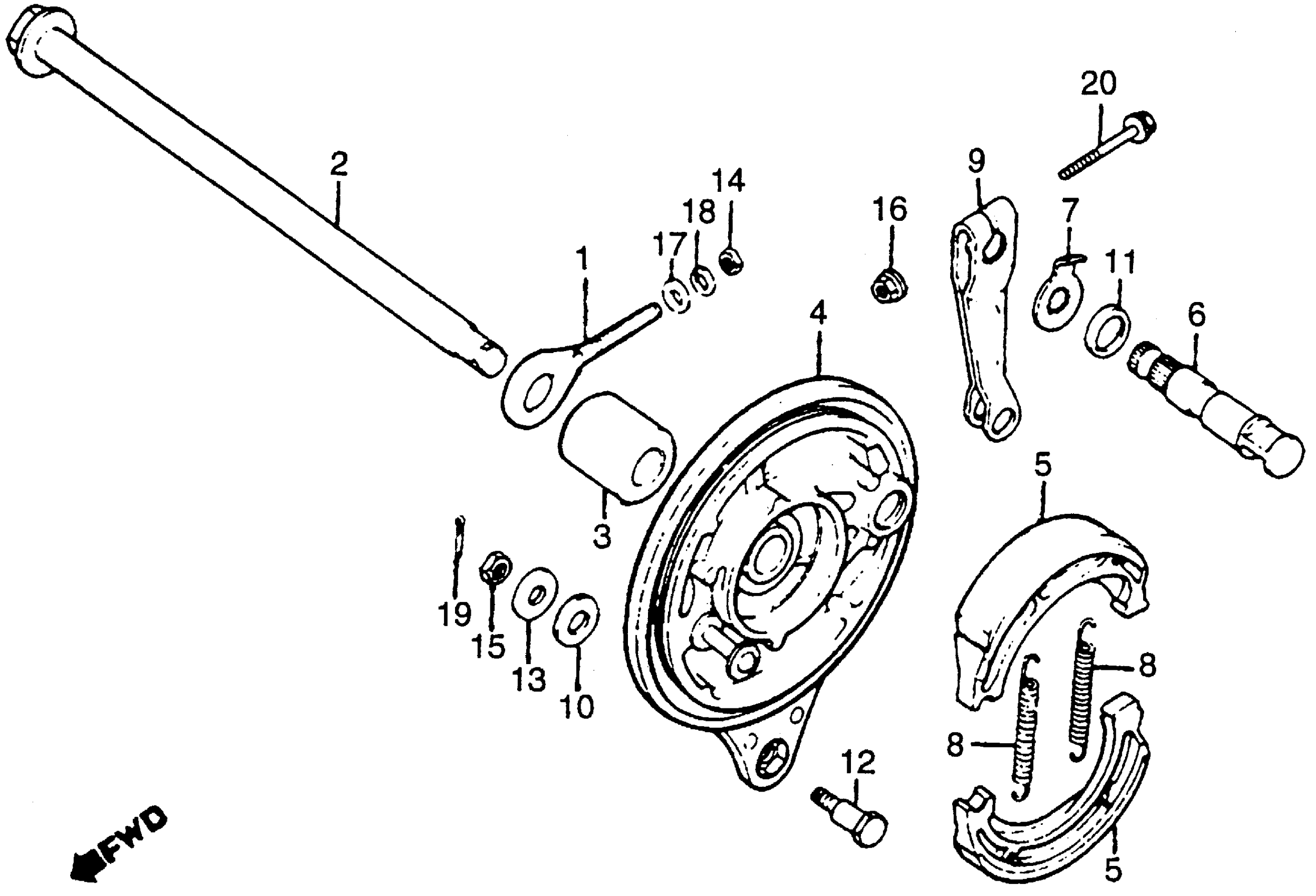

Honda CB125SA (82) MOTORCYCLE, JPN, VIN# JH2JC040-CK800002 TO JH2JC040-CK803032 REAR BRAKE PANEL Diagram

#

Description
Price

NI

SHOE SET, BRAKE (ASK)

06430-GBJ-J10

$29.23

NI

SHOE SET, BRAKE (ASK) This part replaces 06430-KT0-305.

06430-GBJ-J10

$29.23

NI

SHOE SET, BRAKE (ASK) This part replaces 06430-365-674.

06430-GBJ-J10

$29.23

NI

SHOE SET, BRAKE (ASK) This part replaces 431A2-365-672.

06430-GBJ-J10

$29.23

1

ADJUSTER, DRIVE CHAIN This part replaces 40543-384-920.

40543-397-890

$4.24

1

ADJUSTER, DRIVE CHAIN This part replaces 40543-397-000.

40543-397-890

$4.24

1

ADJUSTER, DRIVE CHAIN

40543-397-890

$4.24

2

AXLE, RR. WHEEL

42301-401-680

Unavailable

3

COLLAR, RR. BRAKE PANEL SIDE

42313-074-010

Unavailable

4

PANEL, RR. BRAKE

43100-383-870

Unavailable

5

SHOE SET, BRAKE (ASK)

06430-GBJ-J10

$29.23

5

SHOE SET, BRAKE (ASK) This part replaces 06430-KT0-305.

06430-GBJ-J10

$29.23

5

SHOE SET, BRAKE (ASK) This part replaces 43120-365-671.

06430-GBJ-J10

$29.23

5

SHOE SET, BRAKE (ASK) This part replaces 43120-365-672.

06430-GBJ-J10

$29.23

6

CAM, RR. BRAKE

43141-400-010

$23.52

7

INDICATOR, RR. BRAKE (NOT AVAILABLE)

43145-383-700

Unavailable

8

SPRING, BRAKE SHOE (NK)

43151-110-000

$2.92

9

ARM, RR. BRAKE (NOT AVAILABLE)

43410-383-720

Unavailable

10

RUBBER, STOPPER ARM CUSHION

43434-286-000

$2.92

11

DUST SEAL, BRAKE CAM

45134-250-000

$2.92

12

BOLT A, BRAKE STOPPER

92811-10000

$2.92

13

WASHER A, HANDLE HOLDER SETTING

90524-030-000

$1.49

14

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

14

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

14

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

14

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

14

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

14

NUT, HEX. (6MM)

94001-06200-0S

$1.49

14

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

15

NUT, HEX. (8MM)

94001-08000-0S

$1.49

16

NUT, FLANGE (6MM)

94050-06000

$1.49

17

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

17

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

17

WASHER, PLAIN (6MM)

94101-06800

$1.49

18

WASHER, SPRING (6MM)

94111-06000

$1.49

19

PIN, SPLIT (2.0X15)

94201-20150

$1.49

20

BOLT, FLANGE (6X35) This part replaces 95700-06035-00.

95701-06035-00

$1.80

20

BOLT, FLANGE (6X35)

95701-06035-00

$1.80
