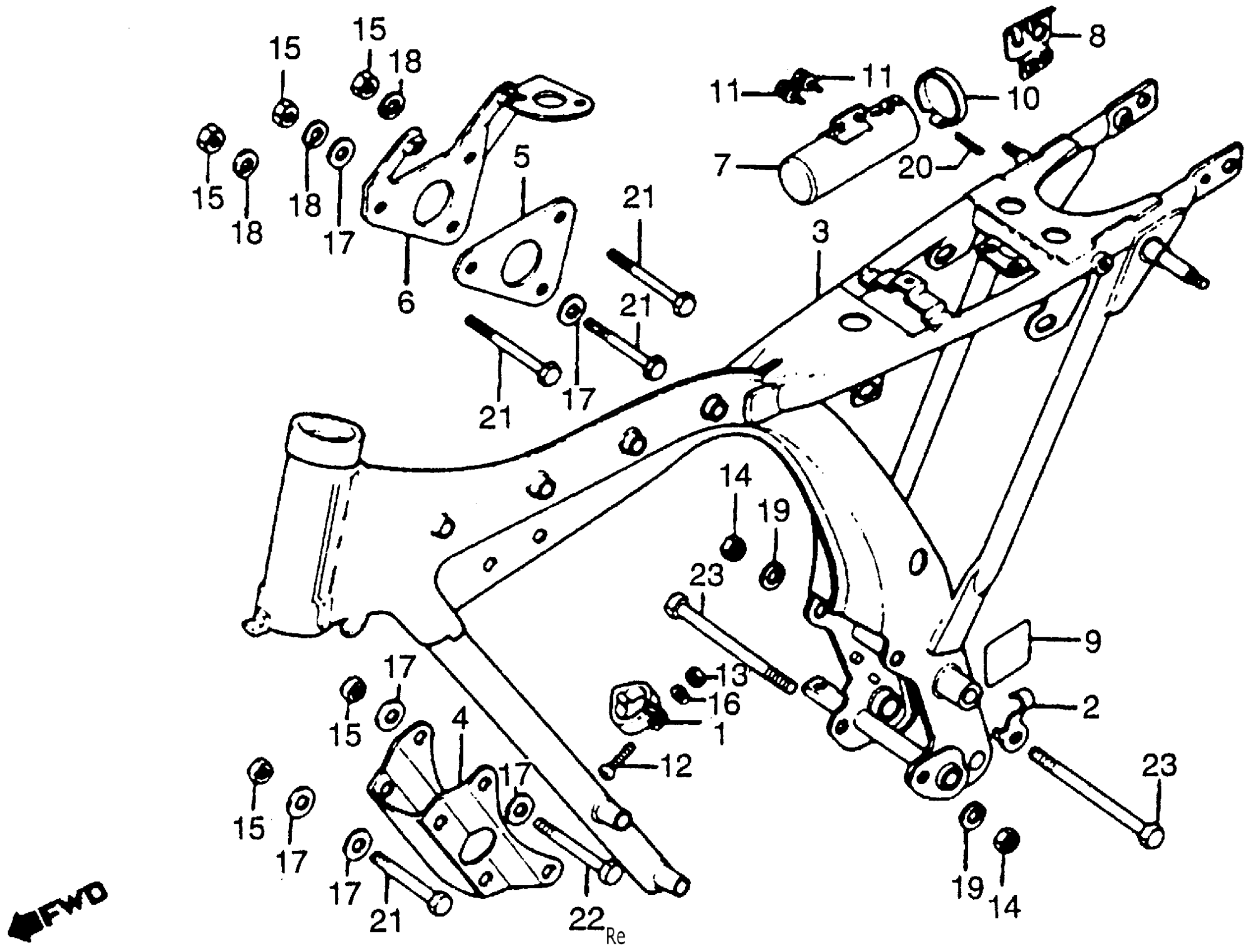

Honda CB125SA (82) MOTORCYCLE, JPN, VIN# JH2JC040-CK800002 TO JH2JC040-CK803032 FRAME Diagram

#

Description
Price

1

CLAMP, CLUTCH CABLE (NOT AVAILABLE)

22878-355-000

Unavailable

2

CLIP, ALTERNATOR WIRE (NOT AVAILABLE)

32907-383-830

Unavailable

3

FRAME *NH1* (BLACK)

50100-383-831ZA

Unavailable

4

PLATE, FR. ENGINE HANGER *NH1* (BLACK) (NOT AVAILABLE)

50351-330-010B

Unavailable

5

PLATE, R. ENGINE HANGER (UPPER)

50353-330-000

Unavailable

6

PLATE, R. ENGINE HANGER (UPPER) (NOT AVAILABLE)

50354-383-830

Unavailable

7

BOX, TOOL (NOT AVAILABLE)

83501-355-620

Unavailable

8

STAY, TOOL BOX (NOT AVAILABLE)

83505-383-830

Unavailable

9

MARK, BATTERY CAUTION (NOT AVAILABLE)

87506-383-830

Unavailable

10

CAP, TOOL BOX *NH1* (BLACK) (NOT AVAILABLE)

89502-918-000B

Unavailable

11

BOLT-WASHER (6X12)

93401-06012-07

$1.63

11

BOLT-WASHER (6X12) This part replaces 93411-06012-07.

93401-06012-07

$1.63

11

BOLT-WASHER (6X12) This part replaces 93481-06012-07.

93401-06012-07

$1.63

12

SCREW, PAN (5X20)

93500-05020-0A

$0.82

13

NUT, HEX. (5MM)

94001-05000-0S

$2.80

14

NUT, HEX. (10MM)

94001-10000-0S

$1.44

15

NUT, HEX. (8MM)

94030-08000

Unavailable

16

WASHER, PLAIN (5MM)

94101-05000

$0.91

17

WASHER, PLAIN (8MM)

94101-08000

Unavailable

18

WASHER, SPRING (8MM)

94111-08000

Unavailable

19

WASHER, SPRING (10MM)

94111-10000

$1.24

20

PIN, COTTER (2.0X35) This part replaces 94201-20250.

94201-20350

$1.01

20

PIN, COTTER (2.0X35) This part replaces 94201-20280.

94201-20350

$1.01

20

PIN, COTTER (2.0X35) This part replaces 94201-20320.

94201-20350

$1.01

20

PIN, COTTER (2.0X35)

94201-20350

$1.01

21

BOLT, HEX. (8X70) This part replaces 95300-08070-00.

95301-08070-00

$2.98

22

BOLT, HEX. (8X90) (NOT AVAILABLE)

95300-08090-00

Unavailable

23

BOLT A, ENGINE HANGER (NOT AVAILABLE)

90102-286-000

Unavailable
