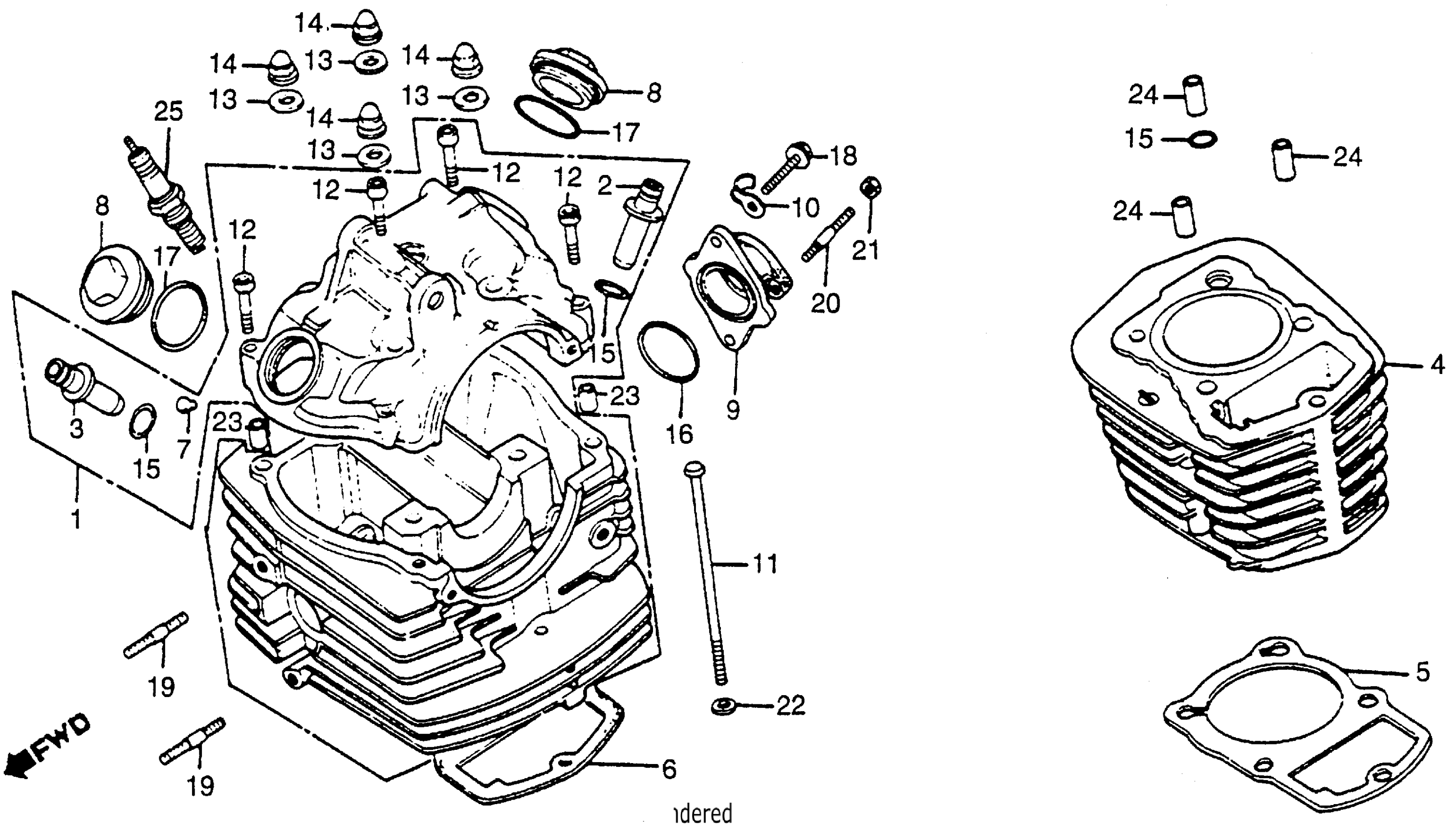

Honda CB125SA (82) MOTORCYCLE, JPN, VIN# JH2JC040-CK800002 TO JH2JC040-CK803032 CYLINDER HEAD + CYLINDER Diagram

#

Description
Price

1

CYLINDER HEAD ASSY.

12000-383-871

Unavailable

2

GUIDE, VALVE

12021-365-300

$11.84

3

GUIDE, EX. VALVE (OS) This part replaces 12023-437-300.

12206-KCS-305

$26.84

3

GUIDE, EX. VALVE (OS)

12206-KCS-305

$26.84

4

CYLINDER

12100-383-030

Unavailable

5

GASKET, CYLINDER This part replaces 12191-KT0-710.

12191-KT0-712

$8.21

5

GASKET, CYLINDER This part replaces 12191-KW1-900.

12191-KT0-712

$8.21

5

GASKET, CYLINDER This part replaces 12191-437-010.

12191-KT0-712

$8.21

5

GASKET, CYLINDER This part replaces 12191-437-020.

12191-KT0-712

$8.21

6

GASKET, CYLINDER HEAD This part replaces 12251-331-772.

12251-437-P00

Unavailable

6

GASKET, CYLINDER HEAD

12251-437-P00

Unavailable

6

GASKET, CYLINDER HEAD This part replaces 12251-437-020.

12251-437-P00

Unavailable

6

GASKET, CYLINDER HEAD This part replaces 12251-437-306.

12251-437-P00

Unavailable

7

RUBBER, OIL SEAL

12271-383-000

$2.92

8

CAP, TAPPET ADJUSTING HOLE

12361-383-000

$6.43

9

INSULATOR, CARBURETOR (NOT AVAILABLE)

16210-383-870

Unavailable

10

CLIP, COIL CABLE (NOT AVAILABLE)

32921-115-000

Unavailable

11

BOLT, HS (6MM)

90081-107-000

Unavailable

12

BOLT, SOCKET (6MM)

90081-383-000

$5.66

13

WASHER, SEALING (8MM)

90442-028-000

$1.77

14

NUT, CAP (8MM)

90443-107-000

$2.89

15

O-RING (10X1.6)

91301-200-000

$3.01

16

O-RING (33.5X3.0) This part replaces 91302-200-000.

91304-HB3-003

$7.70

16

O-RING (33.5X3.0) This part replaces 91302-943-003.

91304-HB3-003

$7.70

16

O-RING (33.5X3.0)

91304-HB3-003

$7.70

17

O-RING (35X3) (ARAI) This part replaces 91303-107-000.

91303-KK3-830

$2.92

18

BOLT, FLANGE (6X18) This part replaces 96000-06018-00.

96001-06018-00

$1.80

18

BOLT, FLANGE (6X18)

96001-06018-00

$1.80

19

BOLT, STUD (6X28) This part replaces 90038-250-000.

92900-06028-0B

$1.89

19

BOLT, STUD (6X28) This part replaces 90051-200-000.

92900-06028-0B

$1.89

19

BOLT, STUD (6X35)

92700-06035

$1.89

19

BOLT, STUD (6X28) This part replaces 92700-06035-0B.

92900-06028-0B

$1.89

19

BOLT, STUD (6X28) This part replaces 92700-06040.

92900-06028-0B

$1.89

19

BOLT, STUD (6X28) This part replaces 92700-06040-0B.

92900-06028-0B

$1.89

19

BOLT, STUD (6X28)

92900-06028-0B

$1.89

19

BOLT, STUD (6X28) This part replaces 92900-06028-08.

92900-06028-0B

$1.89

20

BOLT, STUD (6X28)

92712-06028-0B

$1.49

21

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

21

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

21

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

21

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

21

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

21

NUT, HEX. (6MM)

94001-06200-0S

$1.49

21

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

22

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

22

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

22

WASHER, PLAIN (6MM)

94101-06800

$1.49

23

PIN, DOWEL (8X14)

94301-08140

$2.25

24

PIN, DOWEL (10X20)

94301-10200

$2.35

25

SPARK PLUG (DR8ES-L) (NGK) This part replaces 98069-38716.

98069-38719

$2.62

25

SPARK PLUG (DR8ES-L) (NGK)

98069-38719

$2.62

25

SPARK PLUG (X24ESR-U) (DENSO)

98069-58726

$2.54
