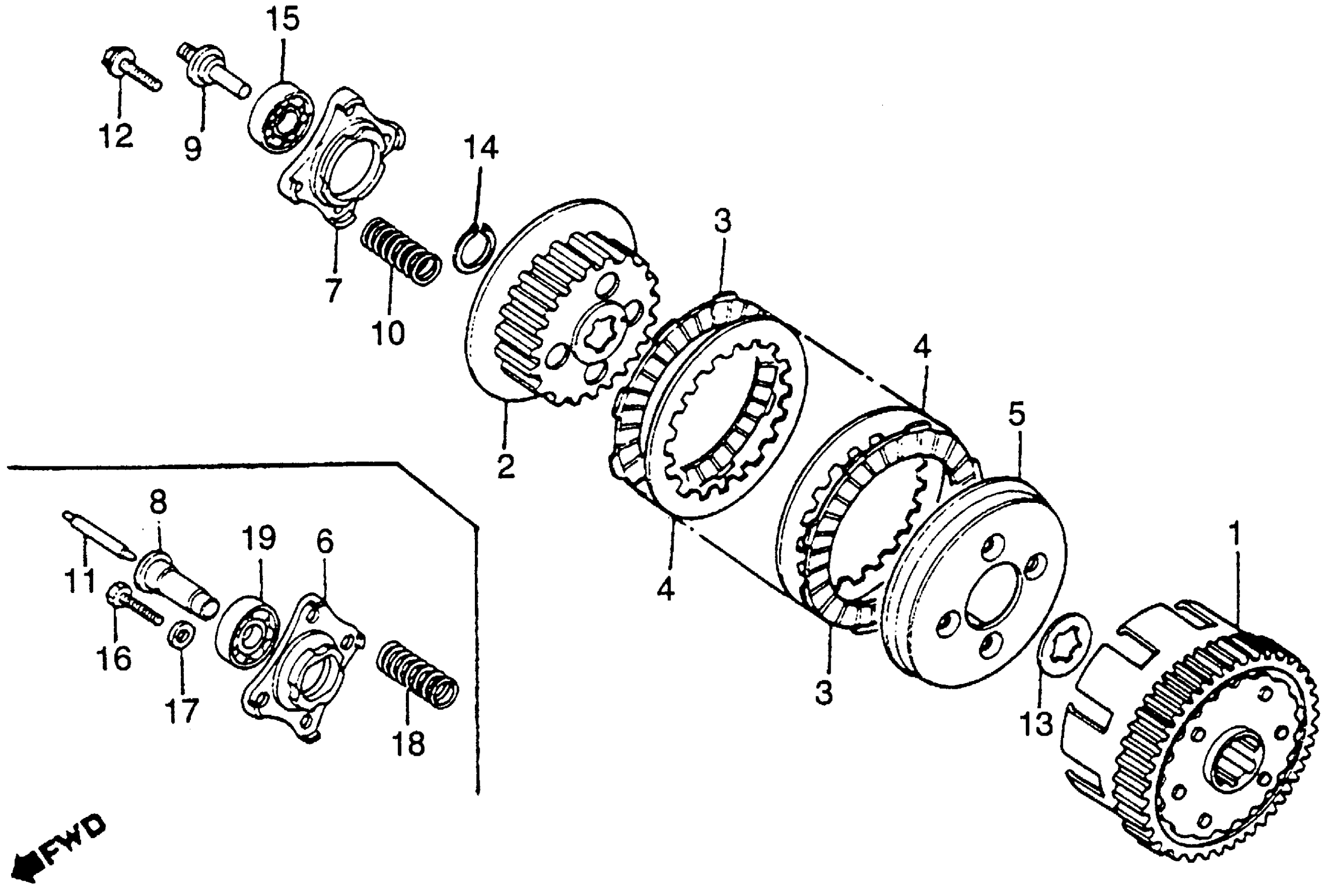

Honda CB125SA (82) MOTORCYCLE, JPN, VIN# JH2JC040-CK800002 TO JH2JC040-CK803032 CLUTCH Diagram

#

Description
Price

1

CLUTCH OUTER This part replaces 22100-324-000.

22100-324-505

Unavailable

2

CENTER, CLUTCH

22121-KCS-650

$34.94

2

CENTER, CLUTCH This part replaces 22121-107-010.

22121-KCS-650

$34.94

3

DISK, CLUTCH FRICTION This part replaces 22201-GF6-000.

22201-166-000

$15.68

3

DISK, CLUTCH FRICTION This part replaces 22201-KB4-670.

22201-166-000

$15.68

3

DISK, CLUTCH FRICTION This part replaces 22201-107-000.

22201-166-000

$15.68

3

DISK, CLUTCH FRICTION

22201-166-000

$15.68

4

PLATE, CLUTCH

22311-KN4-680

$5.88

4

PLATE, CLUTCH This part replaces 22311-107-000.

22311-KN4-680

$5.88

5

PLATE, CLUTCH PRESSURE This part replaces 22350-107-000.

22350-107-010

$27.75

5

PLATE, CLUTCH PRESSURE

22350-107-010

$27.75

7

PLATE, CLUTCH LIFTER

22361-437-000

$13.31

9

PIN, CLUTCH LIFTER GUIDE (NOT AVAILABLE)

22366-383-830

Unavailable

10

SPRING, CLUTCH

22401-437-000

$3.10

12

BOLT, SPECIAL FLANGE (6X22)

90050-357-000

$4.20

13

WASHER B, SPLINE (20MM)

90461-107-000

$4.38

14

SET-RING (20MM)

90605-200-000

$2.67

15

BEARING, RADIAL BALL (16003) This part replaces 91008-KK6-000.

91011-KK6-013

$13.83

15

BEARING, RADIAL BALL (16003) This part replaces 91008-362-000.

91011-KK6-013

$13.83

15

BEARING, RADIAL BALL (16003) This part replaces 91010-HC0-003.

91011-KK6-013

$13.83

15

BEARING, RADIAL BALL (16003)

91011-KK6-013

$13.83
