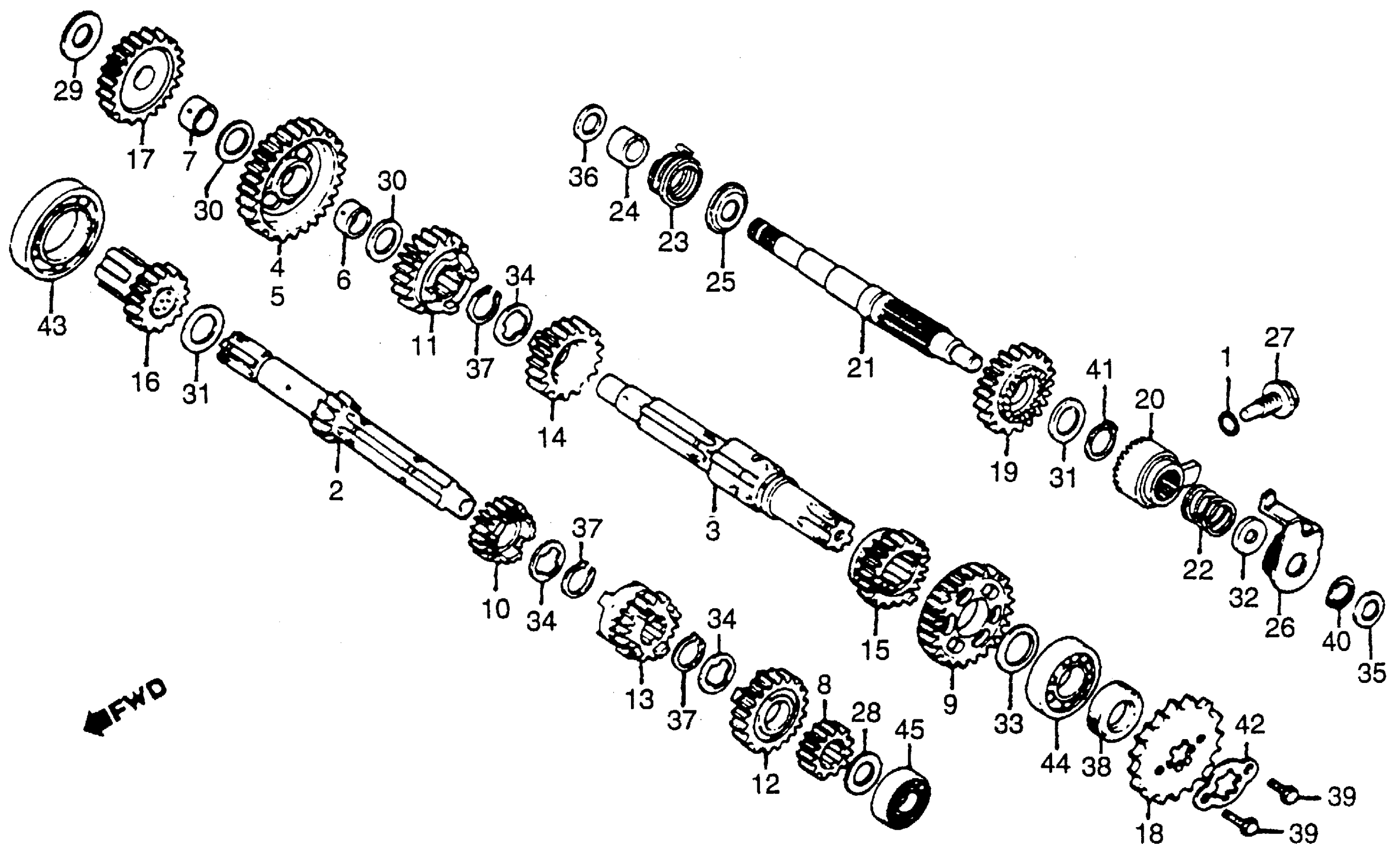

Honda CB125SA (81) MOTORCYCLE, JPN, VIN# JH2JC040-BK700005 TO JH2JC040-BK704378 TRANSMISSION + KICK STARTER SPINDLE Diagram

#

Description
Price

1

O-RING (11.8X2.4) This part replaces 16997-357-003.

91302-ZE9-003

$2.33

1

O-RING (11.8X2.4) This part replaces 91302-ZE9-000.

91302-ZE9-003

$2.33

1

O-RING (11.8X2.4)

91302-ZE9-003

$2.33

1

O-RING (11.8X2.4) This part replaces 91320-HA5-000.

91302-ZE9-003

$2.33

1

O-RING (11.8X2.4) This part replaces 91320-HA5-003.

91302-ZE9-003

$2.33

1

O-RING (11.8X2.4)

91320-MJ6-003

$2.54

2

MAINSHAFT, TRANSMISSION (13T) This part replaces 23211-383-000.

23211-383-003

Unavailable

2

MAINSHAFT, TRANSMISSION (13T)

23211-383-003

Unavailable

3

COUNTERSHAFT, TRANSMISSION

23221-107-020

Unavailable

5

GEAR, COUNTERSHAFT LOW (36T)

23426-KCS-650

$57.70

5

GEAR, COUNTERSHAFT LOW (36T) This part replaces 23426-439-320.

23426-KCS-650

$57.70

6

COLLAR, COUNTERSHAFT LOW GEAR

23427-439-000

$17.01

7

BUSHING

23431-439-000

Unavailable

8

GEAR, MAINSHAFT SECOND (17T)

23441-383-000

Unavailable

9

GEAR, COUNTERSHAFT SECOND (32T)

23451-439-000

Unavailable

10

GEAR, MAINSHAFT THIRD (20T)

23461-439-000

$72.81

11

GEAR, COUNTERSHAFT THIRD (29T)

23471-383-000

Unavailable

12

GEAR, MAINSHAFT FOURTH (25T)

23481-427-000

$62.00

13

GEAR, MAINSHAFT FOURTH (23T)

23481-439-000

Unavailable

14

GEAR, COUNTERSHAFT FOURTH (27T)

23491-383-000

Unavailable

15

GEAR, COUNTERSHAFT FIFTH (25T) (NOT AVAILABLE)

23511-383-000

Unavailable

16

GEAR, STARTER (19T)

23520-437-000

Unavailable

17

GEAR ONLY, IDLE STARTER (28T)

23531-437-310

Unavailable

18

SPROCKET, DRIVE (15T)

23801-KC6-000

Unavailable

18

SPROCKET, DRIVE (15T) This part replaces 23801-324-000.

23801-KC6-000

Unavailable

19

PINION, KICK STARTER (30T)

28211-437-000

Unavailable

20

RATCHET, KICK STARTER

28221-437-000

$58.91

21

SPINDLE, KICK STARTER

28251-437-000

Unavailable

22

SPRING, KICK STARTER RATCHET

28253-397-000

Unavailable

23

SPRING, KICK STARTER

28261-437-000

$9.30

24

COLLAR, KICK SPINDLE

28262-437-000

$12.90

25

RETAINER, STARTER SPRING

28263-437-000

Unavailable

27

BOLT, KICK RATCHET

90004-437-000

$8.19

28

WASHER, THRUST (15MM)

90451-107-000

$1.30

29

WASHER, THRUST (15MM)

90451-365-000

$2.85

30

WASHER, THRUST (16.5MM)

90452-107-000

Unavailable

31

WASHER A, THRUST (20MM)

90453-107-000

$2.04

32

SEAT, RATCHET SPRING

28254-437-000

Unavailable

33

WASHER, THRUST (20MM)

90454-107-000

$1.59

34

WASHER A, SPLINE (20MM)

90455-107-000

$1.75

35

WASHER, THRUST (12MM)

90459-107-000

$1.30

37

SET-RING (20MM)

90605-200-000

$2.67

38

OIL SEAL (20X34X7) (ARAI) This part replaces 91201-030-023.

91201-030-033

$5.15

38

OIL SEAL (20X34X7) (ARAI)

91201-030-033

$5.15

39

BOLT, HEX. (6X10) This part replaces 92000-06010.

92101-06010-0A

$1.28

39

BOLT, HEX. (6X10)

92101-06010-0A

$1.28

40

CIRCLIP (OUTER) (16MM)

94510-16000

$0.71

41

CIRCLIP, OUTER (20MM)

94510-20000

$1.20

42

PLATE B, FIXING

95014-92100

$0.93

43

BEARING, RADIAL BALL (6006) This part replaces 96100-60060.

96100-60060-00

$11.79

43

BEARING, RADIAL BALL (6006)

96100-60060-00

$11.79

44

BEARING, RADIAL BALL (6204) This part replaces 96100-62040.

96100-62040-00

$10.98

44

BEARING, RADIAL BALL (6204)

96100-62040-00

$10.98

45

BEARING, RADIAL BALL (6202Z) (SOURCE: VINTAGE PARTS INC.) This part replaces 96120-62020.

96120-62020-10

Unavailable

45

BEARING, RADIAL BALL (6202Z) (SOURCE: VINTAGE PARTS INC.)

96120-62020-10

Unavailable
