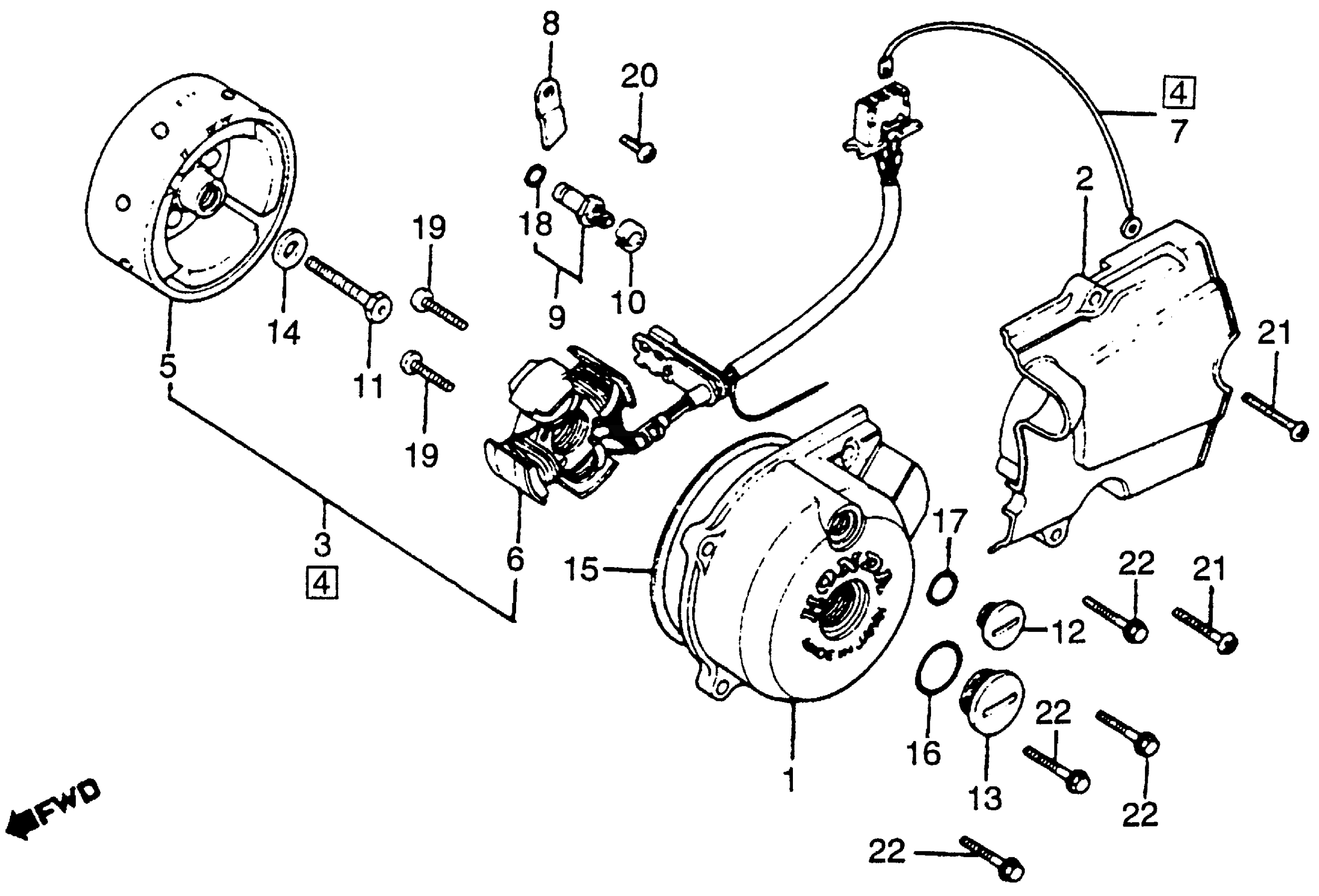

Honda CB125SA (81) MOTORCYCLE, JPN, VIN# JH2JC040-BK700005 TO JH2JC040-BK704378 LEFT CRANKCASE COVER + ALTERNATOR 81-82 Diagram

#

Description
Price

1

COVER, L. CRANKCASE (NOT AVAILABLE) This part replaces 11341-437-000.

11341-437-010

Unavailable

1

COVER, L. CRANKCASE (NOT AVAILABLE)

11341-437-010

Unavailable

2

COVER, L. RR. CRANKCASE (NOT AVAILABLE)

11361-383-830

Unavailable

4

ALTERNATOR ASSY.

31100-437-305

Unavailable

5

FLYWHEEL

31110-437-003

Unavailable

6

STATOR This part replaces 31120-437-023.

31120-437-043

Unavailable

6

STATOR This part replaces 31120-437-033.

31120-437-043

Unavailable

6

STATOR

31120-437-043

Unavailable

7

CABLE, SUB

32111-437-850

Unavailable

8

CLAMP, WIRE HARNESS This part replaces 32976-107-000.

32976-107-010

$1.97

8

CLAMP, WIRE HARNESS

32976-107-010

$1.97

9

CONTACT ASSY., NEUTRAL SWITCH

35750-001-020

$9.16

10

SPACER, NEUTRAL SWITCH

35752-KCT-690

$2.92

10

SPACER, NEUTRAL SWITCH This part replaces 35752-028-300.

35752-KCT-690

$2.92

11

BOLT, ALTERNATOR ROTOR (NOT AVAILABLE)

90083-427-000

Unavailable

12

CAP, ALTERNATOR This part replaces 90084-428-000.

90084-471-000

Unavailable

12

CAP, ALTERNATOR

90084-471-000

Unavailable

13

CAP (30MM) This part replaces 90087-428-000.

90087-KF9-900

Unavailable

14

WASHER, ROTOR SETTING

90426-437-000

$6.57

15

GASKET, L. CRANKCASE COVER This part replaces 91302-107-010.

91302-355-000

$12.49

15

GASKET, L. CRANKCASE COVER

91302-355-000

$12.49

16

O-RING (27.4X2.4) (ARAI)

91302-567-003

$7.96

16

O-RING (27.4X2.4) (ARAI)

91304-MG7-003

$6.45

17

O-RING (13.8X2.5)

91303-MG7-003

$3.12

17

O-RING (13.8X2.5)

91303-377-000

$3.42

17

O-RING (13.8X2.5) This part replaces 91303-426-000.

91303-MG7-003

$3.12

18

O-RING (7X1.7)

91312-107-000

$3.18

19

SCREW, PAN (5X25)

93500-05025-0A

$1.49

20

SCREW, PAN (6X12) This part replaces 93500-06012.

93500-06012-0A

$1.49

20

SCREW, PAN (6X12)

93500-06012-0A

$1.49

20

SCREW, PAN (6X12) This part replaces 93500-06012-00.

93500-06012-0A

$1.49

21

SCREW, PAN (6X25) This part replaces 93500-06025.

93500-06025-0A

$1.49

22

BOLT, FLANGE (6X25)

96000-06025-00

$2.00

22

BOLT, FLANGE (6X25)

96001-06025-00

$2.00
