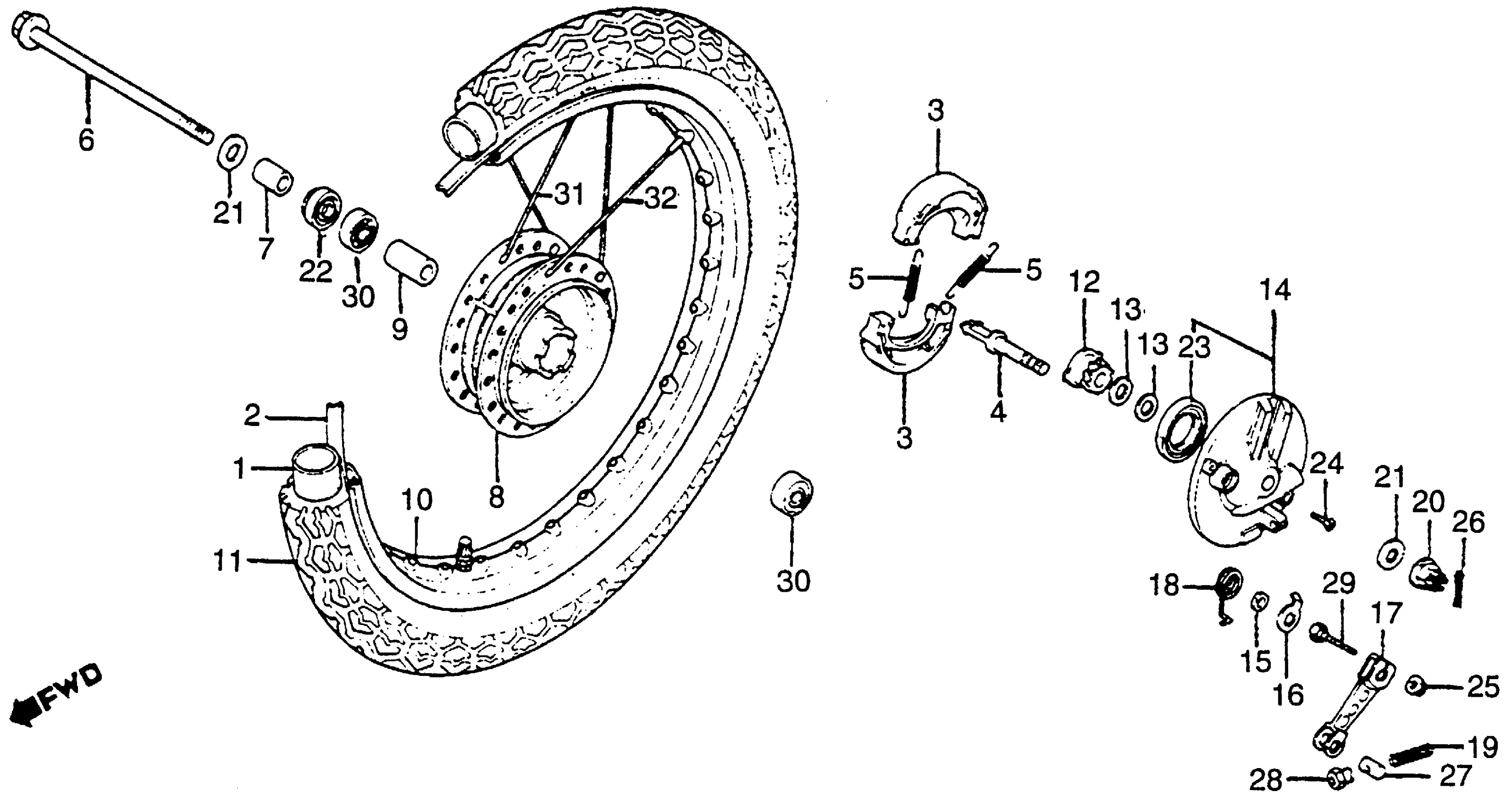

Honda CB125SA (81) MOTORCYCLE, JPN, VIN# JH2JC040-BK700005 TO JH2JC040-BK704378 FRONT WHEEL Diagram

#

Description
Price

NI

SHOE SET, BRAKE (ASK)

06430-GBJ-J10

$29.23

NI

SHOE SET, BRAKE (ASK) This part replaces 06430-KT0-305.

06430-GBJ-J10

$29.23

NI

SHOE SET, BRAKE (ASK) This part replaces 06430-365-674.

06430-GBJ-J10

$29.23

NI

SHOE SET, BRAKE (ASK) This part replaces 431A2-365-672.

06430-GBJ-J10

$29.23

1

TUBE (275/300-18) (IRC) This part replaces 0Y400-26800.

42712-KC6-005

Unavailable

1

TUBE (275/300-18) (IRC) This part replaces 08400-26800.

42712-KC6-005

Unavailable

1

TUBE (275/300-18) (IRC)

42712-KC6-005

Unavailable

1

TUBE (275/300-18) (IRC) This part replaces 42712-168-004.

42712-KC6-005

Unavailable

1

TUBE (275/300-18) (IRC) This part replaces 42712-268-000.

42712-KC6-005

Unavailable

1

TUBE (275/300-18) (IRC) This part replaces 42712-268-003.

42712-KC6-005

Unavailable

1

TUBE (275/300-18) (IRC) This part replaces 42712-268-810.

42712-KC6-005

Unavailable

1

TUBE (275/300-18) (IRC) This part replaces 42712-304-003.

42712-KC6-005

Unavailable

1

TUBE, TIRE (2.50/2.75-18) (NITTO)

42712-304-006

Unavailable

1

TUBE (275/300-18) (IRC) This part replaces 42712-307-006.

42712-KC6-005

Unavailable

1

TUBE (275/300-18) (IRC) This part replaces 42712-315-009.

42712-KC6-005

Unavailable

1

TUBE (275/300-18) (IRC) This part replaces 42712-388-009.

42712-KC6-005

Unavailable

1

TUBE (275/300-18) (IRC) This part replaces 44712-305-003.

42712-KC6-005

Unavailable

2

FLAP, TIRE (BS)

42713-304-003

$6.69

2

FLAP, TIRE (18) (NITTO)

42713-304-006

Unavailable

3

SHOE SET, BRAKE (ASK)

06430-GBJ-J10

$29.23

3

SHOE SET, BRAKE (ASK) This part replaces 06430-KT0-305.

06430-GBJ-J10

$29.23

3

SHOE SET, BRAKE (ASK) This part replaces 43120-365-671.

06430-GBJ-J10

$29.23

3

SHOE SET, BRAKE (ASK) This part replaces 43120-365-672.

06430-GBJ-J10

$29.23

4

CAM, RR. BRAKE

43141-400-010

$23.52

5

SPRING, BRAKE SHOE (NK)

43151-110-000

$2.92

6

AXLE, FR. WHEEL (NOT AVAILABLE)

44301-098-010

Unavailable

7

COLLAR, FR. WHEEL SIDE

44311-229-000

$6.58

8

HUB, FR. WHEEL

44601-383-870

Unavailable

9

COLLAR, FR. AXLE DISTANCE

44620-400-000

$9.33

10

RIM (2.50.18.4PR) This part replaces 44701-383-881.

42701-028-023

Unavailable

11

TIRE, FR. (2.75-18) (BS) (NOT AVAILABLE)

44711-383-671

Unavailable

11

TIRE, FR. (2.75-18) (NITTO)

44711-383-672

Unavailable

12

GEAR, SPEEDOMETER

44804-150-003

Unavailable

13

WASHER, SPEEDOMETER GEAR

44808-107-720

$2.34

14

SUB-PANEL, FR. BRAKE (NOT AVAILABLE)

45010-383-870

Unavailable

15

DUST SEAL, BRAKE CAM

45134-250-000

$2.92

16

INDICATOR, FR. BRAKE

45145-121-710

$6.26

17

ARM, FR. BRAKE (NOT AVAILABLE)

45410-383-880

Unavailable

18

SPRING, FR. BRAKE ARM RETURN

45435-121-010

$5.13

19

SPRING, FR. BRAKE ARM

45437-001-000

$3.50

20

NUT, AXLE (12MM) This part replaces 90305-051-000.

90305-169-000

$6.28

20

NUT, AXLE (12MM)

90305-169-000

$6.28

21

WASHER (12.5MM)

90528-229-000

$2.02

22

OIL SEAL (21X37X7) (ARAI)

90755-229-003

$5.05

22

OIL SEAL (21X37X7) (ARAI) This part replaces 90755-229-005.

90755-229-003

$5.05

23

OIL SEAL (47X60X7)

91251-GK4-003

$9.19

23

OIL SEAL (47X60X7) (ARAI) This part replaces 91251-121-000.

91251-GK4-003

$9.19

23

OIL SEAL (47X60X7) (ARAI) This part replaces 91251-121-003.

91251-GK4-003

$9.19

23

OIL SEAL (47X60X7)

91251-361-005

$13.39

24

SCREW, OVAL (5X16)

93700-05016-0A

$1.49

25

NUT, FLANGE (6MM)

94050-06000

$1.49

26

PIN, COTTER (3.0X45) This part replaces 94201-30250.

94201-30450

$1.49

26

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$1.49

26

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$1.49

26

PIN, SPLIT (3.0X45)

94201-30450

$1.49

27

JOINT A, BRAKE ARM

95015-31001

$1.53

28

NUT A, BRAKE ROD ADJUSTING

95015-41000

$1.49

29

BOLT, FLANGE (6X28)

95700-06028-00

$1.73

29

BOLT, FLANGE (6X28)

95701-06028-00

$1.73

30

BEARING, RADIAL BALL (6301U) This part replaces 96140-63010.

96140-63010-10

$14.84

30

BEARING, RADIAL BALL (6301U)

96140-63010-10

$14.84

31

SPOKE SET B (10X171) (INSIDE) (NOT AVAILABLE)

97170-42182-K0

Unavailable

32

SPOKE SET B (10X170.5) (OUTSIDE) (NOT AVAILABLE)

97656-42181-K0

Unavailable
