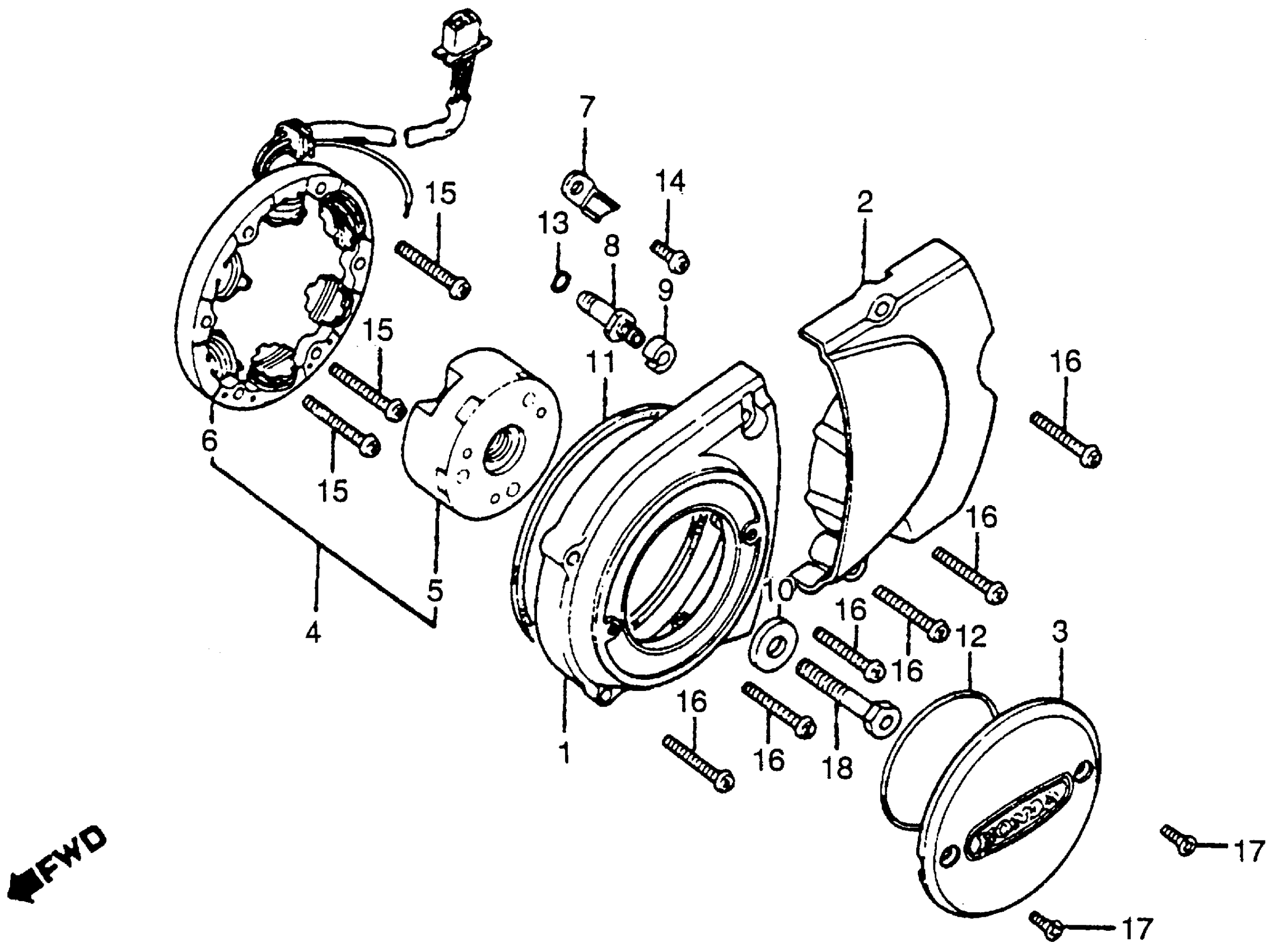

Honda CB125SA (80) MOTORCYCLE, JPN, VIN# JC04-5100001 TO JC04-5107666 LEFT CRANKCASE COVER + ALTERNATOR 80 Diagram

COVER, L. CRANKCASE (NOT AVAILABLE)

11341-324-000

Unavailable

COVER, L. RR. CRANKCASE (NOT AVAILABLE)

11361-383-000

Unavailable

COVER, ALTERNATOR (NOT AVAILABLE)

11431-383-870

Unavailable

ALTERNATOR ASSY. (DENSO) (NOT AVAILABLE)

31100-383-871

Unavailable

ROTOR, ALTERNATOR

31110-383-871

Unavailable

STATOR, ALTERNATOR (NOT AVAILABLE)

31120-383-871

Unavailable

CLAMP, WIRE HARNESS This part replaces 32976-107-000.

32976-107-010

$1.97

CLAMP, WIRE HARNESS

32976-107-010

$1.97

CONTACT ASSY., NEUTRAL SWITCH

35750-001-020

$9.16

SPACER, NEUTRAL SWITCH

35752-KCT-690

$2.92

SPACER, NEUTRAL SWITCH This part replaces 35752-028-300.

35752-KCT-690

$2.92

WASHER, ROTOR SETTING

90426-355-000

$4.22

GASKET, L. CRANKCASE COVER This part replaces 91302-107-010.

91302-355-000

$12.49

GASKET, L. CRANKCASE COVER

91302-355-000

$12.49

O-RING (70X2.4)

91309-302-000

$10.00

O-RING (7X1.7)

91312-107-000

$3.18

SCREW, PAN (6X12) This part replaces 93500-06012.

93500-06012-0A

$1.49

SCREW, PAN (6X12)

93500-06012-0A

$1.49

SCREW, PAN (6X12) This part replaces 93500-06012-00.

93500-06012-0A

$1.49

SCREW, PAN (6X28) This part replaces 93500-06028.

93500-06028-0A

$1.49

SCREW, PAN (6X28)

93500-06028-0A

$1.49

SCREW, PAN (6X32) This part replaces 93500-06032.

93500-06032-0A

$1.49

SCREW, PAN (6X32)

93500-06032-0A

$1.49

SCREW, OVAL (5X16)

93700-05016-0A

$1.49

BOLT A1, ROTOR

95015-11100

Unavailable
