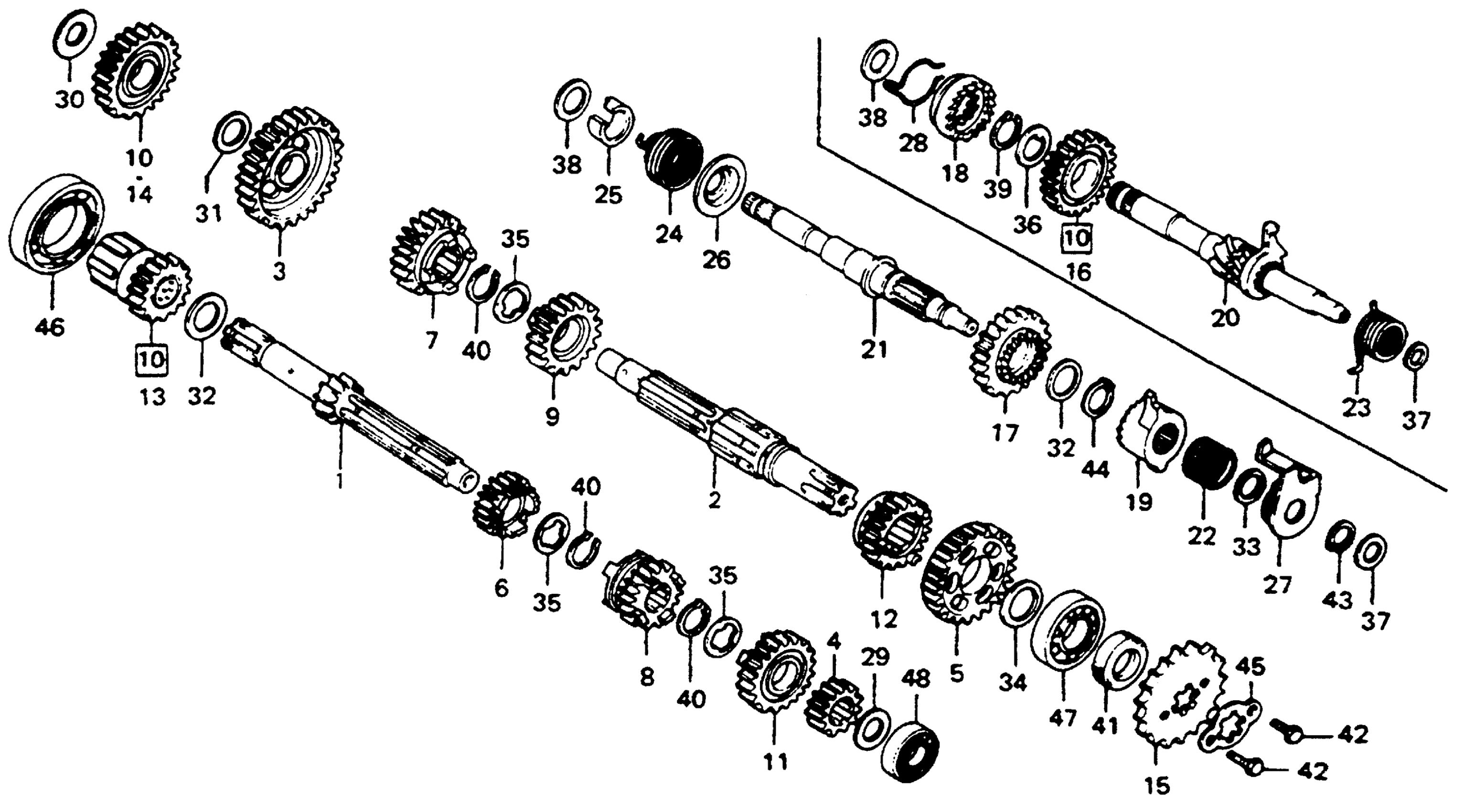

Honda CB125SA (79) MOTORCYCLE, JPN, VIN# CB125S-5000001 TO CB125S-5002000 TRANSMISSION + KICK STARTER SPINDLE Diagram

#

Description
Price

1

MAINSHAFT, TRANSMISSION (13T) This part replaces 23211-383-000.

23211-383-003

Unavailable

2

COUNTERSHAFT, TRANSMISSION This part replaces 23221-107-010.

23221-107-020

Unavailable

2

COUNTERSHAFT, TRANSMISSION

23221-107-020

Unavailable

3

GEAR, COUNTERSHAFT LOW (36T) (NOT AVAILABLE)

23421-383-000

Unavailable

4

GEAR, MAINSHAFT SECOND (17T)

23441-383-000

Unavailable

5

GEAR, COUNTERSHAFT SECOND (32T) This part replaces 23451-383-000.

23451-439-000

Unavailable

5

GEAR, COUNTERSHAFT SECOND (32T)

23451-439-000

Unavailable

6

GEAR, MAINSHAFT THIRD (20T) This part replaces 23461-383-000.

23461-439-000

$79.98

6

GEAR, MAINSHAFT THIRD (20T)

23461-439-000

$79.98

7

GEAR, COUNTERSHAFT THIRD (29T)

23471-383-000

Unavailable

8

GEAR, MAINSHAFT FOURTH (23T) This part replaces 23481-383-000.

23481-439-000

Unavailable

8

GEAR, MAINSHAFT FOURTH (23T)

23481-439-000

Unavailable

9

GEAR, COUNTERSHAFT FOURTH (27T)

23491-383-000

Unavailable

11

GEAR, MAINSHAFT FOURTH (25T)

23481-427-000

$70.13

11

GEAR, MAINSHAFT FOURTH (25T) This part replaces 23501-383-000.

23481-427-000

$70.13

12

GEAR, COUNTERSHAFT FIFTH (25T) (NOT AVAILABLE)

23511-383-000

Unavailable

13

GEAR, STARTER (19T)

23520-383-000

Unavailable

14

GEAR, IDLE STARTER (29T) (NOT AVAILABLE)

23530-383-000

Unavailable

15

SPROCKET, DRIVE (15T)

23801-KC6-000

Unavailable

15

SPROCKET, DRIVE (15T) This part replaces 23801-324-000.

23801-KC6-000

Unavailable

17

PINION, KICK STARTER (29T)

28211-397-010

Unavailable

19

RATCHET, KICK STARTER

28221-397-020

Unavailable

21

SPINDLE, KICK STARTER

28251-397-010

Unavailable

22

SPRING, KICK STARTER RATCHET

28253-397-000

Unavailable

24

SPRING, KICK STARTER

28261-397-000

Unavailable

25

COLLAR, KICK SPINDLE

28262-397-000

Unavailable

26

RETAINER, STARTER SPRING

28263-397-000

Unavailable

27

PLATE, RATCHET GUIDE

28270-397-020

Unavailable

29

WASHER, THRUST (15MM)

90451-107-000

$1.49

30

WASHER, THRUST (15MM)

90451-365-000

$3.08

31

WASHER, THRUST (16.5MM)

90452-107-000

Unavailable

32

WASHER A, THRUST (20MM)

90453-107-000

$2.25

33

WASHER, THRUST (16MM)

90453-235-000

$1.83

34

WASHER, THRUST (20MM)

90454-107-000

$1.80

35

WASHER A, SPLINE (20MM)

90455-107-000

$1.92

37

WASHER, THRUST (12MM)

90459-107-000

$1.49

38

WASHER, THRUST (16MM)

90462-107-000

$2.11

40

SET-RING (20MM)

90605-200-000

$2.92

41

OIL SEAL (20X34X7) (ARAI) This part replaces 91201-030-000.

91201-030-033

$5.54

41

OIL SEAL (20X34X7) (ARAI) This part replaces 91201-030-003.

91201-030-033

$5.54

41

OIL SEAL (20X34X7) (ARAI) This part replaces 91201-030-005.

91201-030-033

$5.54

41

OIL SEAL (20X34X7) (ARAI) This part replaces 91201-030-013.

91201-030-033

$5.54

41

OIL SEAL (20X34X7)

91201-030-015

Unavailable

41

OIL SEAL (20X34X7) (ARAI) This part replaces 91201-030-023.

91201-030-033

$5.54

41

OIL SEAL (20X34X7) (ARAI) This part replaces 91201-030-025.

91201-030-033

$5.54

41

OIL SEAL (20X34X7) (ARAI)

91201-030-033

$5.54

42

BOLT, HEX. (6X10) This part replaces 92000-06010.

92101-06010-0A

$1.49

42

BOLT, HEX. (6X10)

92101-06010-0A

$1.49

43

CIRCLIP (OUTER) (16MM)

94510-16000

$1.49

44

CIRCLIP (OUTER) (20MM)

94510-20000

$1.49

45

PLATE B, FIXING

95014-92100

$1.49

46

BEARING, RADIAL BALL (6006) This part replaces 96100-60060.

96100-60060-00

$13.13

46

BEARING, RADIAL BALL (6006)

96100-60060-00

$13.13

47

BEARING, RADIAL BALL (6204) This part replaces 96100-62040.

96100-62040-00

$12.22

47

BEARING, RADIAL BALL (6204)

96100-62040-00

$12.22

48

BEARING, RADIAL BALL (6202Z) (SOURCE: VINTAGE PARTS INC.) This part replaces 96120-62020.

96120-62020-10

Unavailable

48

BEARING, RADIAL BALL (6202Z) (SOURCE: VINTAGE PARTS INC.)

96120-62020-10

Unavailable
