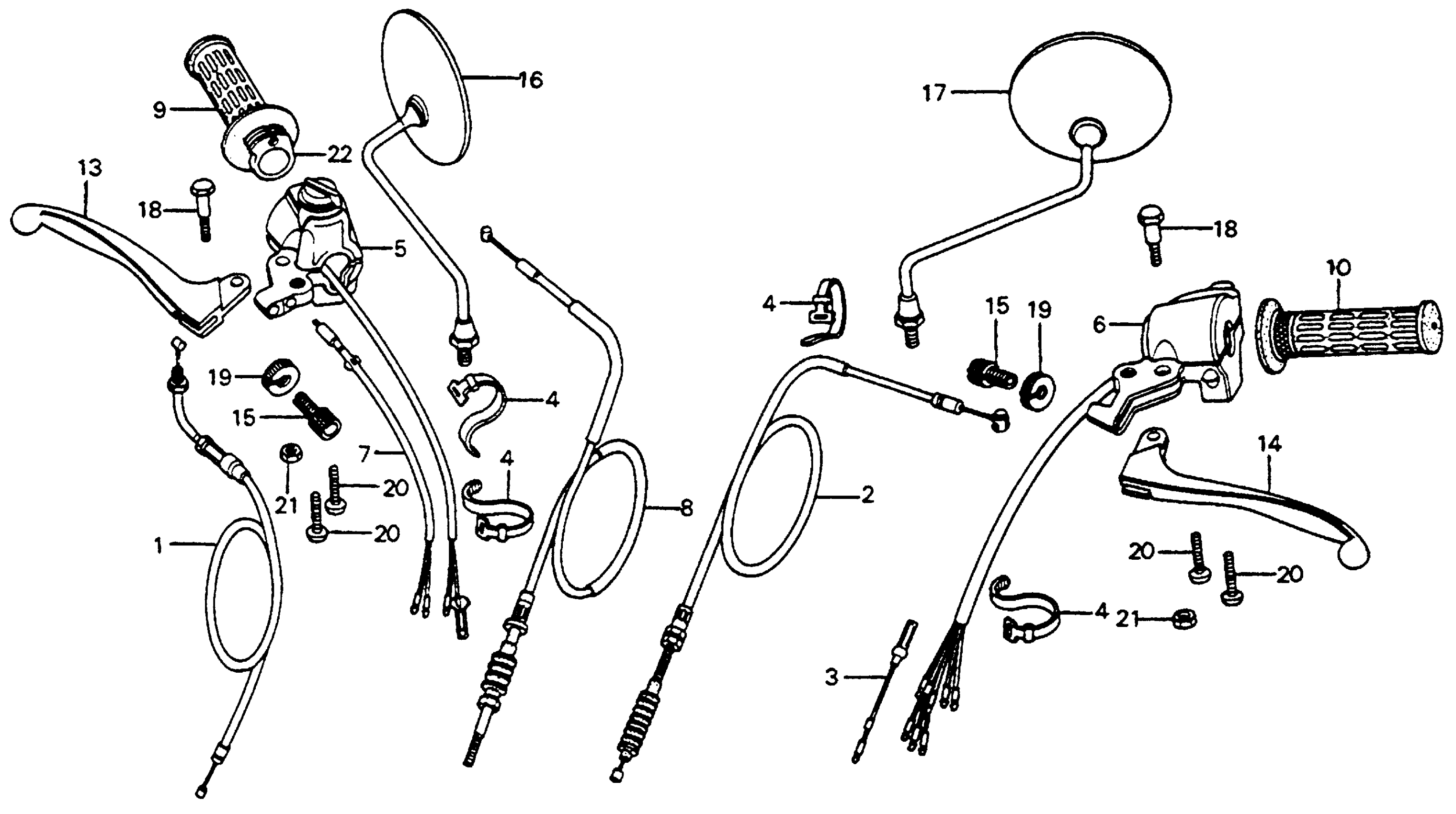

Honda CB125SA (79) MOTORCYCLE, JPN, VIN# CB125S-5000001 TO CB125S-5002000 HANDLE LEVER + SWITCH 79 Diagram

#

Description
Price

1

CABLE, THROTTLE

17910-150-000

Unavailable

1

CABLE, THROTTLE This part replaces 17910-383-880.

17910-150-000

Unavailable

2

CABLE, CLUTCH

22870-383-670

Unavailable

3

SUB-WIRE A (BLUE/WHITE)

32111-383-880

Unavailable

4

BAND B1, CABLE

32161-404-000

$2.23

5

SWITCH ASSY., STOP (NOT AVAILABLE)

35130-383-880

Unavailable

6

SWITCH ASSY., TURN SIGNAL (NOT AVAILABLE) This part replaces 35200-383-880.

35200-440-931

Unavailable

7

SWITCH ASSY., FR. STOP This part replaces 35340-187-700.

35340-GAN-620

$19.20

7

SWITCH ASSY., FR. STOP This part replaces 35340-401-681.

35340-GAN-620

$19.20

7

SWITCH ASSY., FR. STOP This part replaces 35340-401-682.

35340-GAN-620

$19.20

7

SWITCH ASSY., FR. STOP This part replaces 35340-437-661.

35340-GAN-620

$19.20

8

CABLE, FR. BRAKE (NOT AVAILABLE)

45450-383-830

Unavailable

8

CABLE, FR. BRAKE (NOT AVAILABLE) This part replaces 45450-383-870.

45450-383-830

Unavailable

8

CABLE, FR. BRAKE (NOT AVAILABLE) This part replaces 45450-383-880.

45450-383-830

Unavailable

9

GRIP, R. HANDLEBAR

53165-390-780

$10.88

10

GRIP, L. HANDLEBAR

53166-390-780

$10.88

13

LEVER, R. HANDLEBAR

53175-399-700

$34.10

14

LEVER, L. HANDLEBAR

53178-399-700

$28.00

15

BOLT, CABLE ADJUSTING

53192-268-000

$6.72

16

MIRROR, R.

88110-329-730

Unavailable

17

MIRROR, L. (DOES NOT INCLUDE LOCK NUT) This part replaces 88120-329-730.

88220-329-730

Unavailable

18

BOLT, HANDLEBAR LEVER PIVOT

90114-310-000

$4.90

19

NUT, FIXING

90321-315-670

$7.31

19

NUT, FIXING This part replaces 90321-968-000.

90321-315-670

$7.31

20

SCREW, PAN (5X25)

93500-05025-0A

$1.49

20

SCREW, PAN (5X25) This part replaces 93500-05025-1A.

93500-05025-0A

$1.49

21

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

21

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

21

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

21

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

21

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

21

NUT, HEX. (6MM)

94001-06200-0S

$1.49

21

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

22

PIPE A, THROTTLE GRIP

95014-51100

$17.62
