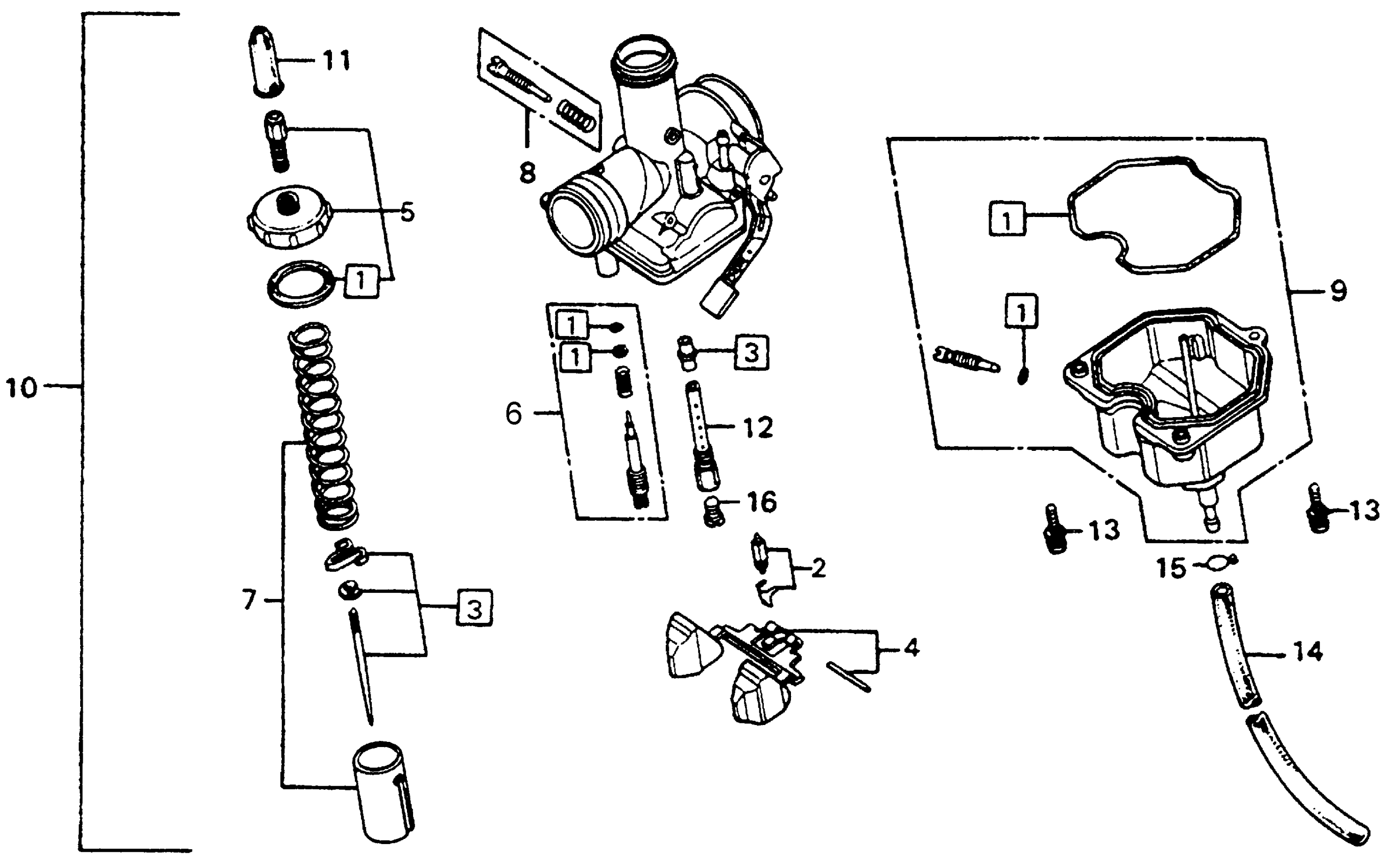

Honda CB125SA (79) MOTORCYCLE, JPN, VIN# CB125S-5000001 TO CB125S-5002000 CARBURETOR 78-79 Diagram

#

Description
Price

1

GASKET SET

16010-HB5-305

$27.44

1

GASKET SET This part replaces 16010-382-004.

16010-HB5-305

$27.44

2

VALVE SET, FLOAT This part replaces 16011-382-004.

16011-KCK-910

$33.82

3

NEEDLE SET, JET (NOT AVAILABLE)

16012-383-770

Unavailable

4

FLOAT SET

16013-324-680

Unavailable

5

TOP SET This part replaces 16014-324-680.

16014-324-681

Unavailable

5

TOP SET

16014-324-681

Unavailable

6

SCREW SET This part replaces 16016-364-780.

16016-463-661

$21.40

6

SCREW SET

16016-463-661

$21.40

7

VALVE SET, THROTTLE

16022-324-680

Unavailable

8

SCREW SET B This part replaces 16028-402-004.

16028-KB1-D11

$5.98

9

CHAMBER SET, FLOAT

16015-KFC-910

Unavailable

9

CHAMBER SET, FLOAT This part replaces 16015-384-601.

16015-KFC-910

Unavailable

9

CHAMBER SET, FLOAT This part replaces 16045-393-004.

16015-KFC-910

Unavailable

10

CARBURETOR ASSY. (NOT AVAILABLE)

16100-383-701

Unavailable

11

CAP, CABLE SEALING This part replaces 16118-086-004.

16118-166-004

$8.08

11

CAP, CABLE SEALING

16118-166-004

$8.08

12

HOLDER, NEEDLE JET (NOT AVAILABLE)

16165-383-701

Unavailable

13

SCREW-WASHER (4X16)

93892-04016-08

$1.49

14

BULK HOSE, FUEL (3.5X3000) (3.5X330)

95001-35003-60M

$20.85

15

CLIP, TUBE (B7)

95002-02070

$1.80

16

JET (#110) This part replaces 99101-GHB-1100.

99101-MBA-1100

$9.11

16

JET (#110) This part replaces 99101-393-1100.

99101-MBA-1100

$9.11

16

JET SET, MAIN (#100) (NOT AVAILABLE) | (Optional).

16110-383-701

Unavailable
